Full Color Waterproof Stage HD Led Display Screen 320mm x 320mm Module

  • img.alt
  • img.alt
  • img.alt
  • img.alt
Place of Origin China
Brand Name YUCHIP
Certification CE,ROHS,FCC,EMC
Model Number OR-6.67S
Minimum Order Quantity 1sqm
Price Negotiable
Packaging Details Flight Case,Wooden Case,Strong Carton Box
Delivery Time 15-20 Working Days
Payment Terms T/T
Supply Ability 5000㎡/Month
Product Details
High Light

led video wall rental

,

led display screens
Leave a Message
Product Description

Full Color Stage HD Led Screen 105mm thickness For fixed or rental



Quick Detail:





1. LED Source: SMD3535;

2. Module: 320mm x 320mm;

3. Cabinet: 640*640mm;

4. thickness only 105mm;

5. Modular design, easy assembly and maintenance;

6. SUM high refresh frequency IC;





Description:

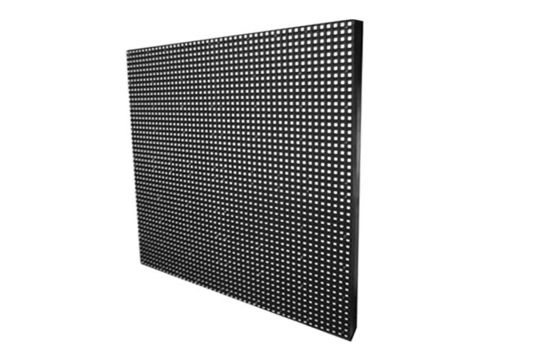

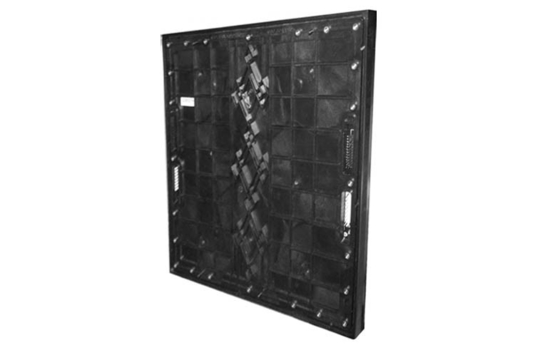

Module features:
1, All-sealed water proof LED module
2, Thermal-conductive & noiseless power supply
3, Module size: 320x320mm

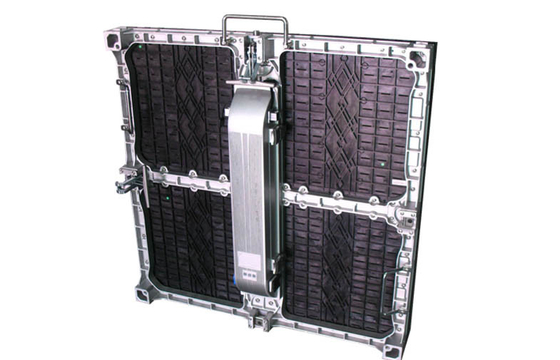

Cabinet features:
1, Thermal-conductive & noiseless power supply.
2, Fast lock system-80% higher efficiency in installation.
3, Die-casting aluminum cabinet: High precision and less weight.
4, Applicable for either fixed or rental/hang application, fast and easy set up and tear down, widely accepted for stage rental business.
5, Available pitch: P4,P5, P5.33, P5.926, P6.67, P8, P10.





Applications:



Outdoor Meeting

Concert rental LED display

Entertainment events LED screen

Stadium rental LED wall

Fash show stage LED display

Rental commercial LED display











Specifications :



LED MODULE PARAMETER
Pixel pitch (mm) 6.67
Pixel configuration 3 in 1
Encapsulation SMD3535
Colors matches 6:3:1
Module resolution (pixels) 48*48
Module pixel 2304
Module size (mm) 320*320
LED CABINET SPECIFICATION
Cabinet size (mm) 640*640*105mm
Cabinet resolution (pixels) 96*96
Cabinet pixels (pixels) 9216
Cabinet material Aluminum
Cabinet weight (kg) 11.8kg
LED DISPLAY SPECIFICATION
Pixel density(pixel/m2) 22500
Brightness(cd/m2) ≥6000 (adjustable)
Brightness adjusted 100 grade by software or by Auto-optic induced
View angle Horizontal 120°; Vertical 120°
Best viewing distance (m) ≥2m
Communication distance(m) <100meter by Internet Cable(without Relay; Multi mode fiber cable ＜ 500m;
Single mode fiber cable ＜ 20km
Display work method 1/6 Scan
LED driving method Constant driving current
Color contrast ratio 1800:1
Gray Grade 16bit
Display Color 439, 804, 651, 110
Refresh Frequency (Hz) ≥1920
Picture display method Intellective control technology , test-itself technology , correct technology,
Synchronization Control
Input signal DVI (S-VIDEO, CVBS, ,DP,HDMI,VGA, PAL/NTSC, etc.through Video processor
converting )
System operating WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc.
Front/Rear IP Level IP65
Working temperature(ºC) -10～+40
Stored temperature (ºC) -30～+80
Operation humidity(RH) 0-95%
Display Lifetime(hours) 10 years or more( natural environment)
100000 hours( ideal environment)
Maintenance Rear side
Working Voltage AC110 / AC220V±10% 47～63HZ
Out of controlled dot ≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the
wave length are both >10% depart to the normal one)









Competitive advantages:



1. Stable quality: Professionally supplied LED screen to over 80 countries and installed thousands projects in 10 years;

2. Strong supply ability: 5000㎡ per month LED display production and regular products in stock for quick delivery;

3. Reasonable price: Profit back to customer for long term mutual development cooperation;

4. Innovation: Carefully listen to customer need and create improved LED display products to support local LED sign market development;

5. Trusted service: Local cooperation distributors in Italy,Poland,Malaysia and Thailand; 24/7 LED experts online support; LED engineer on-site support;

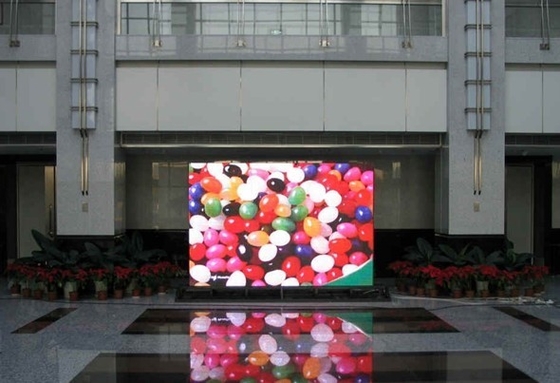

Case:

Full Color Waterproof Stage HD Led Display Screen 320mm x 320mm Module 0
