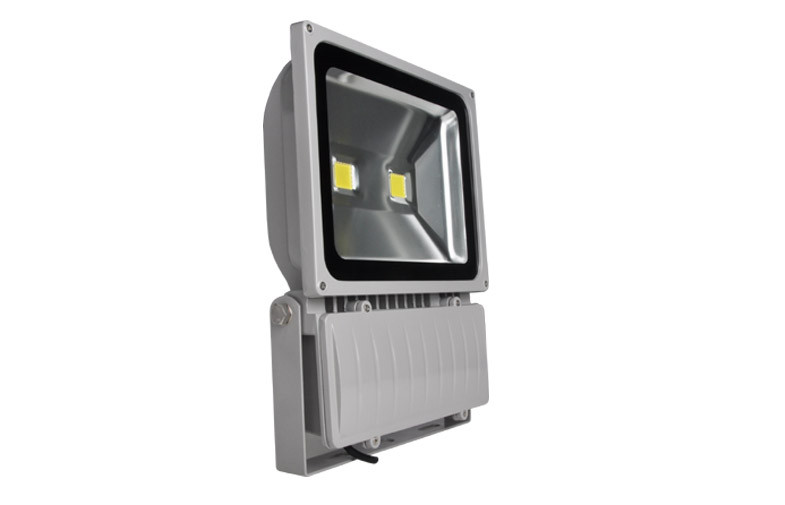

Aluminium 5500K IP 65 High Power Led Flood Lights for Tunnel Lighting

Aluminium 5500K IP 65 High Power Led Flood Lights for Tunnel Lighting

General Description:

General DescriptionLED floodlight is a new type of LED lighting source,developed based on the traditional floodlights.Compared with the traditional floodlights,it has characteristics of high thermal conductivity, low luminous decay, pure light color, no ghosting, energy saving, environmental protection, long life and so on.The product uses the constant current and constant voltage control, and its power efficiency is high.

Features:

1. High efficiency and energy saving,energy saving 70% than traditional lamps under the same conditions of illumination.

2. Long life, using semiconductor chip to shine, life can reach 30000 hours or more;
3.,Healthy ray, ultraviolet and infrared are not contained in , does not produce light radiation;
4. Green and environmental protection, does not contain harmful elements such as mercury and xenon, conducive to recovery, and does not produce electromagnetic interference;
5. A high quality built-in constant current driving power, no stroboscopic, is conducive to the protection of eyesight;
6. Patent integrated light source, high quality Bridgelux chips, high luminous efficiency, high color rendering index;
7.Thermal design of advanced, Integral die-casting molding, small contact thermal resistance, high heat dissipation efficiency;
8. Protection grade reaches IP65;

Applications:

1, Manufacturing shop,workshop,Warehouse,highway toll station；

2, Gas station, large supermarkets, exhibition halls, stadiums, halls, conference rooms, shopping malls;

Technical Parameters

Power parameters:

LED Chips Quantity LED	1 Pc
System Consumption	80W
LED Luminous Efficiency	80-100Lm /W
Color Temperature	2700K～7000K(5500K)
Lamp’s Initial Luminous Efficiency	≥70Lm /W
Lumen Maintenance	70%(50000Hrs)
Color Rendering Index	Ra≥70
Light Distribution	Please refer to the attachment test report
Operating Temperature	-20℃ ～ +45℃
Storage Temperature	-20℃ ～ +45℃
IP Grade	IP65
Life-span	30000Hrs
Materials	Aluminium
Appliance Class	Class Ⅰ
The color of the lamp shell	Black/Silver
Power line	1mm2The three core



Dimension:

Installation Introduction:

1.The lamp is installed on the fixing frame (wall), fixed the lamp bracket and the fixing frame with three screws above.
2. Work in a regulated environment temperature, as well as store.
3. When to install the lamp, wiring and wiring good sealing to prevent leakage.
4. When to install the external power line, must adopt corresponding measures for water leakage and waterproof .
5. The lamp does not violate any fire safety rules when using
6. Please find a professional electrician to install,3 * 0.75MM2 three core cable wiring for FireWire is brown line, zero line is blue line and the the ground wire is yellow wire.
