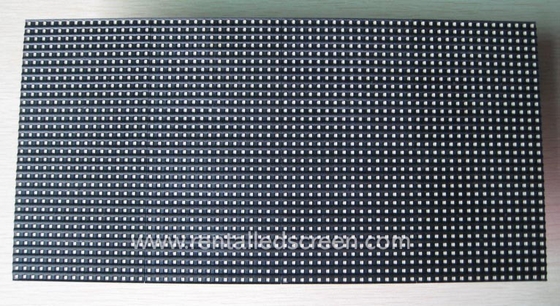

Full Color HD Led Screen Video Wall P5 Indoor Display Module

  • img.alt
  • img.alt
  • img.alt
Place of Origin China
Brand Name YUCHIP
Certification CE,ROHS,FCC,EMC
Model Number P5
Minimum Order Quantity 1sqm
Price Negotiable
Packaging Details Flight Case,Wooden Case,Strong Carton Box
Supply Ability 5000㎡/Month
Product Details
High Light

outdoor led video display

,

led display screens
Leave a Message
Product Description

HD Full Color  Led Video Wall P5 Indoor Led Screen Display Module



P5 indoor SMD3528 Led Display Screen Parameters



LED MODULE PARAMETER
Pixel pitch (mm) 5
Pixel configuration SMD3528
Encapsulation 3 in 1
Module resolution (pixels) 64*32
LED CABINET SPECIFICATION
Module size 320*160
Cabinet size (mm) 640 x 640 x 10
Cabinet resolution (pixels) 128*128
Cabinet pixels (pixels) 19200
Cabinet material Steel
Cabinet weight (kg) 18
LED DISPLAY SPECIFICATION
Pixel density(pixel/m2) 160000
Brightness(cd/m2) ≥2000 (adjustable)
Brightness adjusted 256 grade by software or by Auto-optic induced
View angle Horizontal 140°; Vertical 140°
Best viewing distance (m) ≥1.5m
Communication distance(m) <100meter by Internet Cable(without Relay;            Multi mode fiber cable ＜ 500m; Single mode fiber cable ＜ 20km
Display work method 1/26 Scan
LED driving method  Constant driving current
Color contrast ratio
　
Gray Grade 16bit
Display Color 439, 804, 651, 110
Refresh Frequency (Hz) ≥2400
Picture display method Intellective control technology , test-itself technology , correct technology, Synchronization Control
Input signal  DVI (S-VIDEO, CVBS, ,DP,HDMI,VGA, PAL/NTSC, etc.through Video procrssor converting )
System operating  WINDOWS 98,  WINDOWS 2000,  WINDOWS XP,WINDOWS 7 etc.
Front/Rear IP Level IP43
Working temperature(ºC) -20～+40
Stored temperature (ºC)  -40～+80
Operation humidity(RH)  0-95%
Display Lifetime(hours) 10 years or more( natural environment)
100000 hours( ideal environment)
Maintenance Rear side
Working Voltage AC110 / AC220V±10%  47～63HZ
Power consumption Max: 750W/㎡ ; Ave:300W/㎡
Out of controlled dot ≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the wave length are both >10% depart to the normal one)

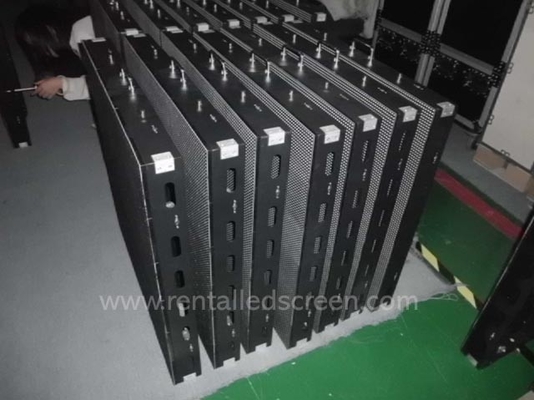

YUCHIP Led Display Case:

Full Color HD Led Screen Video Wall P5 Indoor Display Module 0

led display paceage YUCHIP
Our services:
1.Your inquiry about our products or the price will be replied within 24 hours!
2.We provide 2 years for warranty and lifelong maintaining ,you will appreciate our warm after-sale service.
3.We will delivery goods as you demand ,you can choose the cheaper and more convenient way!
4.Apart from the Indoor LED Display, Visionled also can offer you LED Pharmacy Cross Display, LED Flexible Display, Outdoor LED Display, LED Gas Price Signs, Indoor/outdoor LED Signs.

Trade Terms:
1.Packing: Anti-shaking wooden cabinet /Air flight case/carton
2.Shipping port: Shenzhen. China
3.Shipping freights are quoted according to your requests
4.Delivery time:5-15 working days
5.2 years warranty ,lifelong maintaining.In the Maintenance period, free of all maintenance charges. After Maintenance period, only charge the material costs fees.
