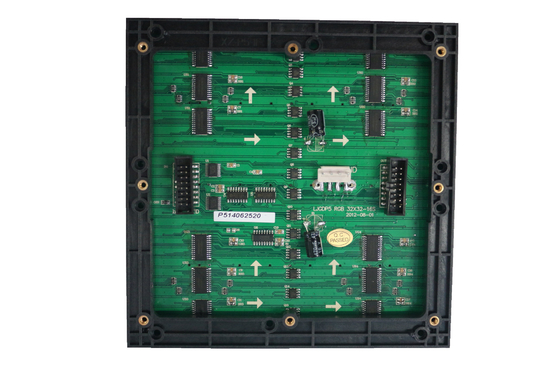

P5 SMD Indoor Full Color Led Screen Module 1/16 Scan / 320mm*320mm

  • img.alt
  • img.alt
  • img.alt
  • img.alt
  • img.alt
Place of Origin China
Brand Name YUCHIP
Certification CE,ROHS,FCC,EMC
Model Number P5
Minimum Order Quantity 1
Price Negotiable

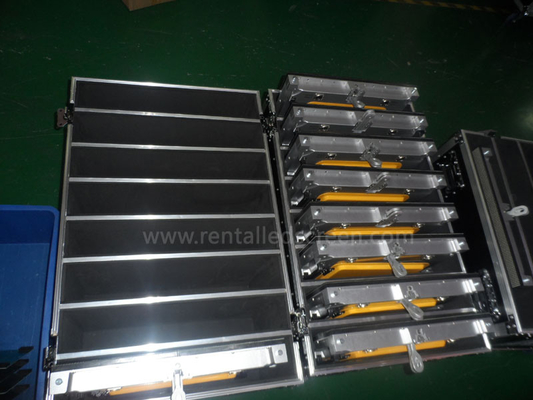

Packaging Details Flight Case,Wooden Case,Strong Carton Box
Supply Ability 5000㎡/Month
Product Details
Encapsulation SMD3528 Viewing Angle H:140,V:140
Module Size (mm) 320*320 Brightness(nits) 1300
High Light

high definition led display

,

p10 led module
Leave a Message
Product Description

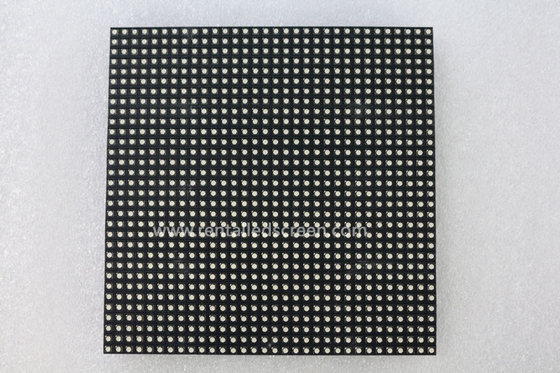

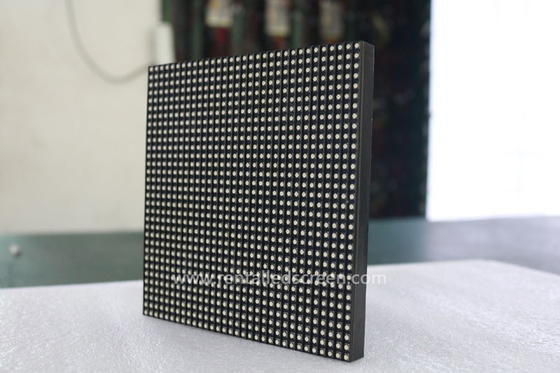

P5 SMD Indoor Full Color LED Module



Factory Direct Sale P5 SMD Indoor Full Color LED Module / 1/16 Scan / 320mm*320mm / 64*64 Pixel / High Brightness LED Module

Perfect brightness. High quality, low cost .
Entertainment complexes, Churches, Restaurants, Showrooms, Casinos, Convenience Stores, Banking, Government facilities, Theatres and Retail outlets etc.

1. Best view distance:4M - 30M
2. Pixel compose:5mm SMD4in1 1R1G1B
3. Display color:Full color
4. Brightness: 2500CD/square meter
5. Hub type: 75
6.module Size: 320*320mm
7.resolution: 64*64pixels
8.Scan:1/16
9.Weight: 0.75G
10.Working Voltage:DC 5V



LED display



Resolution

5mm

Max.power consumption

Max 800 W/mm

Type

SMD 3in1

Avg.power consumption

Max 219 W/mm

Pixel configuration

1R1G1B

Max.current.

Max 5.02A/220V, 50HZ

Drive mode

1/16 scanning

Horizontal viewing

120°

Module Re.(Dot)

16*16(W*H)

Vertical viewing angle

120°

Pixel pitch(mm)

5

Brightness(CD/mm)

Min1300

Module size(mm)

320*320(W*H)

Pixel density(Dot/mm)

40000

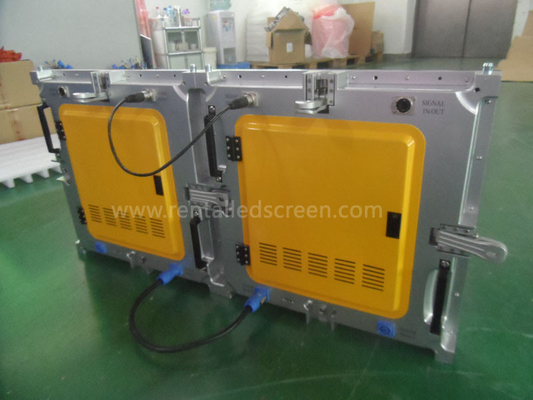

Cabinet

Power factor

Min 0.7

LED board array

5*4(W*H)

Cert.

UL,CE,ETL,ROHS

Cabinet Re.(Dot)

160*128(W*H)

Contrast

2000:01:00

Cabinet area

0.512mm

Working temperature

-20° --  60°

Cabinet size

800*640mm(W*H)

Working humidity

20% to 90%

Weight

18kg Aluminum/Cild rolled sheet

Lifespan(50%)

100,000hours

Power

AC220/110,47~63HZ

Processing

12 bit

Ingress Protection

N/A

Colors

687 billion

Service access

Rear/Front

Refresh frequency

Min 800Hz

Dimming level

Manual-100 levels, Automatic-16 levels

Frame rate

60 fps



led modules p5 indoor smd3528
