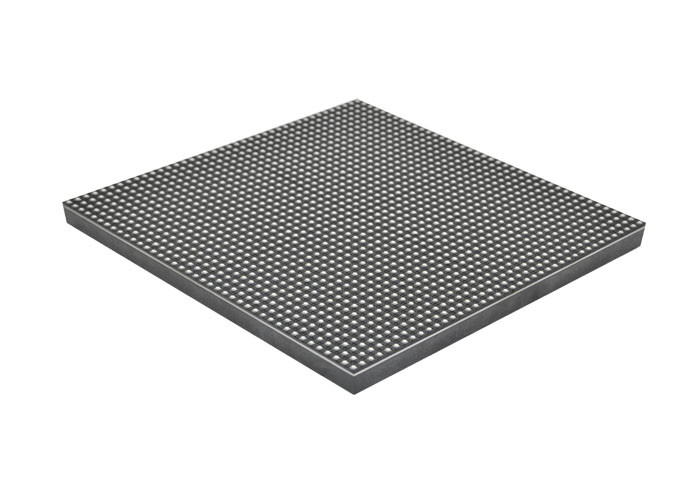

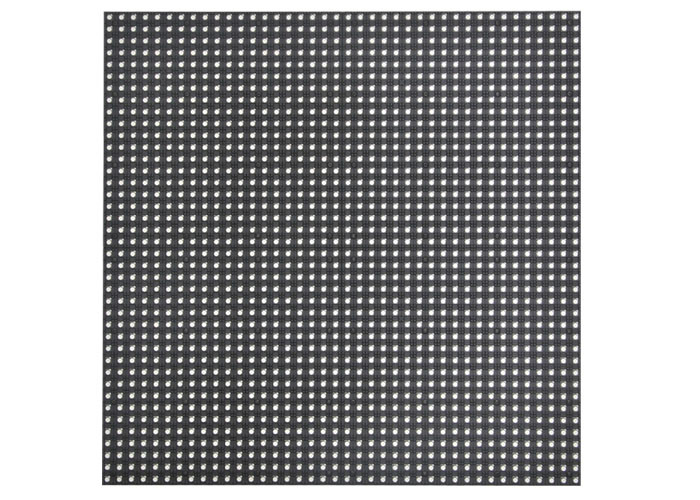

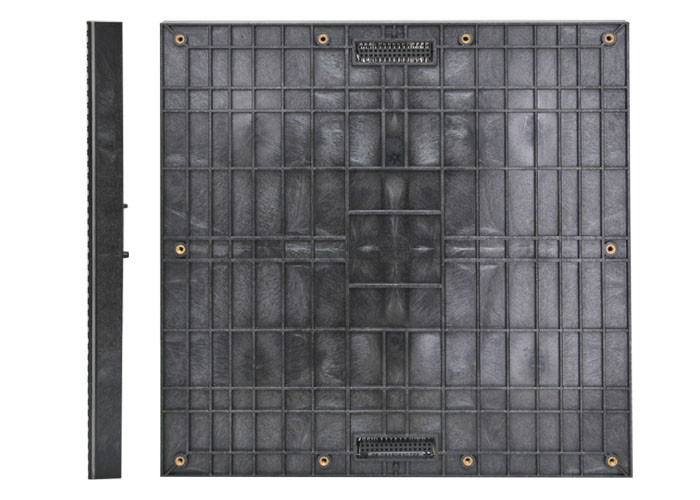

Indoor Moving Message Led Display , P6.25 Curve Flexible Led Display Screen

  • img.alt
  • img.alt
  • img.alt
Place of Origin China
Brand Name YUCHIP
Certification CE,ROHS,FCC,EMC
Model Number P6.25
Minimum Order Quantity 1
Price Negotiable
Packaging Details Flight Case,Wooden Case,Strong Carton Box
Supply Ability 5000㎡/Month
Product Details
Working Voltage AC110 Or 220V±10% Maximum Brightness >2000cd/m²
LED Module Size 250mm*250mm Best Viewing Distance >6.25m
High Light

high definition led display

,

p10 led module
Leave a Message
Product Description



Indoor P6.25 flexible curve led vedio display Module Product Description:
1.Cabinet size can be customized,profile aluminun material design ensures percise positioning and
its light weight reduces labor intensity.
2. Hanging and standing installation are avaiable for different applications.
3.Noiseless and energy saving power supply,aluminum plate to improve heat dissipation performance.
4.Flatness between cabinet <0.2mm,special coating technology for mask to ensure same color on screen surface.

Materials & Adavantages of LED Modules:

1. First-class LED chip: Epistar from Taiwan.
2. With pure golden wire connection in LED.
3. Grand A row material for module frame and mask.
4. 4 layers PCB and copper plating thickness > 18mil.
5. Ag alloy solder paster to ensure good soldering on PCB.
6. Stainless steel screws when assembly.
7. Long-term Brightness capacity throughout product lifetime.
8. Three years warranty.



pixel Pitch 6.25mm
Working Voltage AC110 or 220V±10%
Power Consumption Max 640W/sqm
Average200W/sqm
LED Brand YUCHIP
Maximum Brightness >2000cd/m²
Pixel Configuration 1RGB
Module Resolution 40*40 dots
Pixel Density 15,625 Pixels/m²
Drive Mode 1/10 Scanning
Grade Level RGB 8192 grade/each
Best Viewing Distance >6.25m
Viewing Angle Horizontally >160° / Vertically >140°
Screen Lifetime ≥ 100,000 hours
Driving IC ICN2026
Refresh Frequency ≥1200HZ/s
Change Frame Frequency ≥ 60Hz
Protection Level IP65
Control System ¹ Simple LED Video Control System
or Advanced LED Video Processor
Ambient Temperature -10°C ~ +45°C
Relative Humidity 10%~90%
Screen Weight 15Kg/cabinet
Input Signal RF S-Video RGB RGBHV YUVYC, etc.
Brightness Adjustment ² 256 levels of each color (RGB) can be adjusted manually and
8 levels of each color can be adjusted automatically.
LED Module Size 250mm x 250mm



Shenzhen YUCHIP LIGHTING Co., Ltd is mainly engaged in new type of LED display manufacturers, design and production. In order to adapt to the development of the market, to meet the needs of the application, the company is committed to R & D indoor and outdoor ultra-thin, ultra portable, energy-saving, high refresh series of new products, custom effects, cluster control, information release and customized special screen business; Design, research and development of new type cabinets and accessories, application of new technology and independent innovation, for our customers to provide high cost-effective and high quality products, welcome customers to our company to visit and discuss business cooperation!



Our Services
For all our screens, we can provide you three years warranty, and life-span maintenance indoor P6.25 full color led display.
For important project, if in need, we can also send our engineer to teach and assist you install the screen and operate the software and offer technical trainning to your engineers.
If possible, you can also send your engineer to our company to learn how to operate the software and install the screen in our factory.
