Outdoor 3535 SMD p10 led display module / video led panel module

  • Outdoor 3535 SMD p10 led display module / video led panel module
  • Outdoor 3535 SMD p10 led display module / video led panel module
  • Outdoor 3535 SMD p10 led display module / video led panel module
Certification CE,ROHS,FCC,EMC
Model Number P5
Minimum Order Quantity 1
Price Negotiable
Packaging Details Flight Case,Wooden Case,Strong Carton Box
Supply Ability 5000㎡/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Encapsulation SMD3535 Viewing Angle H:140,V:140
Module Size (mm) 192*192 Brightness(nits) >6200
Highlight

high definition led display

,

p10 led module
Leave a Message
Product Description

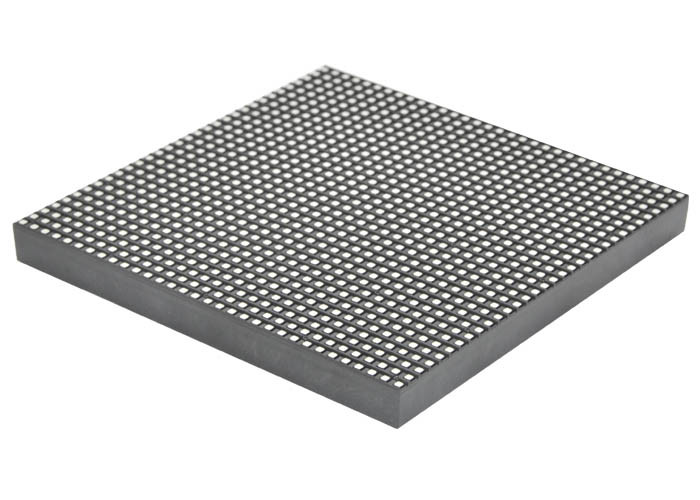

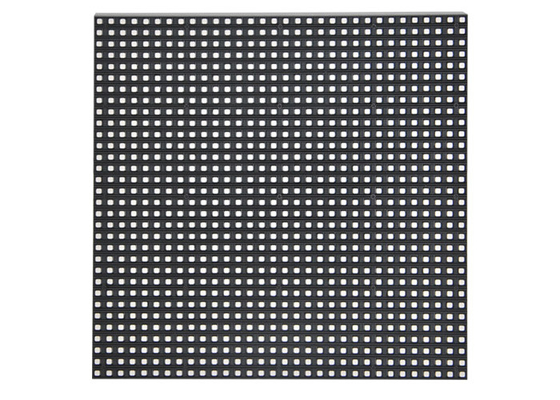

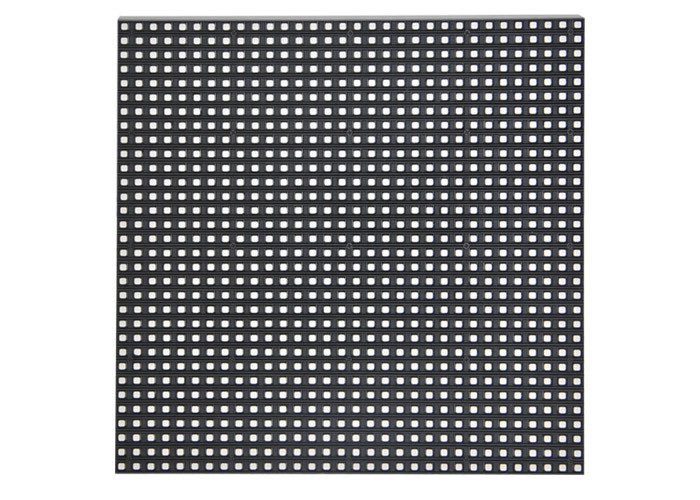

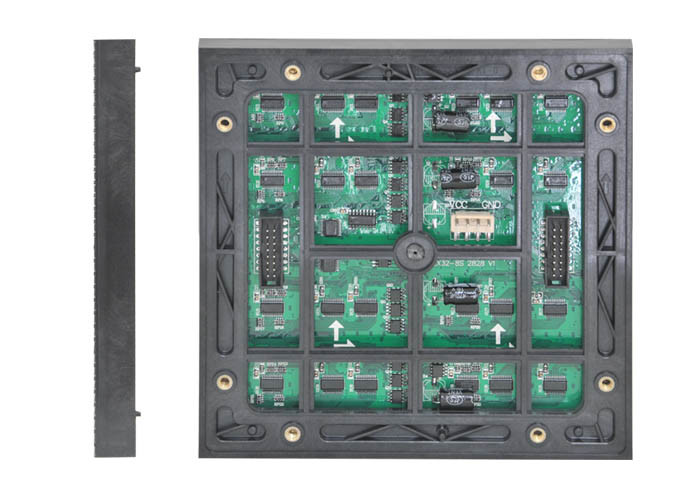

Outdoor 3535 SMD p10 led display module / video led panel module



High quality HD 160x160mm 32x32 HUB75 3535 outdoor SMD P5 led module Features
•40000 pixel dots per square meter resolution.
•With super-high brightness LED, high contrast.
•High frame frequency, wider view angel.
•With module development and distributed scan technology, high reliability.
•Universal AC input / full range.
•IP65 protection level, indoor solution.
•PC synchronous or asynchronous control(optional).
•Use common video play software, easy to use.
•2 years warranty.



Pixel pitch 5mm
Pixel density 40000 dots/sqm
Pixel configuration 1R1G1B(SMD3535)
Max brightness 6500nit
View angle(horizontal) ±60°
Gray scale 65536 (16 bit)
Colors 16.7M
Color temperature 6500K-9300K
Refresh rate 3000HZ
Contrast ratio 4000:01:00
Frame rate 60HZ
Standard cabinet size 640×640mm
Weight 35KG/sqm
Cabinet resolution 128×128 pixels
Cabinet material Steel (cold rolled iron) or Aluminum (optional)
Protection level IP65
Max power consumption 1100W/sqm
AVE. consumption 350W/sqm
Drive Method 1/8 scan, constant current
Malfunction dot rate 0.1≤‰
Control mode PC synchronous or asynchronous control(optional)
Input voltage(AC) AC90—240V
Operation voltage DC5V
Operation temperature -20~50℃
Operation humidity 10%~90%
MTBF 10000h
Life span 100000h



Company Information
Shenzhen YUCHIP Lighting CO.,Ltd,a professional manufaturer specialized in the design,manufacture,sales and service of LED display,was founded in 2004---a most important industrial center of western Shenzhen.

Since established,YUCHIP have built up a highly-qualified group in LED display,which is equipped with abundant experiences in R&D,production and management as well as engineering service.

It now have over 200 employees,including 20 talented engineers who have been working in LED industry for over 12 years and thus have accumulated rich R&D experience.With over 4000 m2 output per month,we can well satisfy the growing market and provide more stable quality products.

By virtue of various hi-tech advanced equipments and our new production base,YUCHIP has successfully passed ISO9001:2008 and ISO 14001:2004,in addition to certification of UL,CE,TUV,RoHS,and CCC,etc.With over 7 years of progressive endeavors,YUCHIOP have forced its way to a number of industries both at home and abroad,building a strategic partnership with customers and winning over a stable global market.

Our services
Could provide LED display project support and do investigation in local places since our customers start the LED display project budget.
Customized LED screen software and hardware products will be provided base on customers’ requirements.
Provide LED screen technical training (factory or on-site) for different customers.
Drawings like steel structure drawing, connection drawing, etc. can be provided after the order.
Timely online services are provided whenever there is software operational problems and we’ll solve problems as soon as possible in working with our customers.
