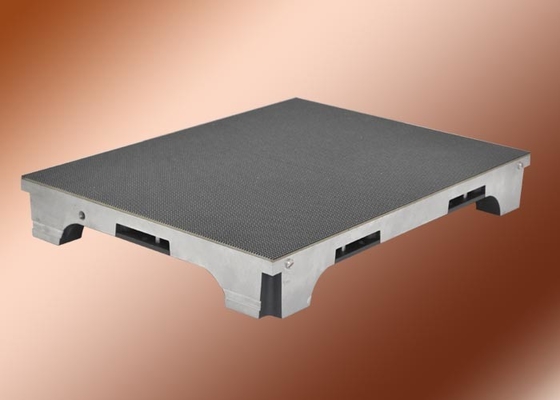

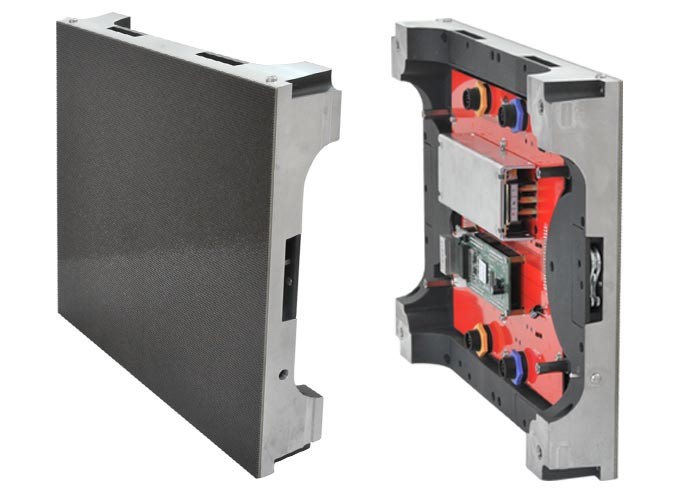

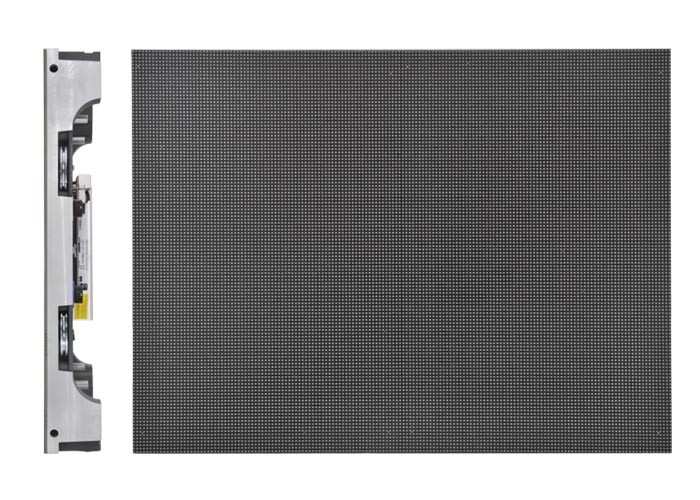

SMD P1.6 Slim HD Led Screen / outside advertising boards 6Kg Light

  • img.alt
  • img.alt
  • img.alt
Place of Origin China
Brand Name YUCHIP
Certification CE,ROHS,FCC,EMC
Model Number HD1.6
Minimum Order Quantity 1sqm
Price Negotiable
Packaging Details Flight Case,Wooden Case,Strong Carton Box
Delivery Time 15-20 Working Days
Payment Terms T/T
Supply Ability 5000㎡/Month
Product Details
Cabinet Thickness 77mm Pixel Composition 1R1G1B
Weight 6Kg/cabinet
High Light

outdoor led video display

,

led video wall rental
Leave a Message
Product Description

SMD P1.6 Slim HD Led Screen / outside advertising boards 6Kg Light



P1.6 Small Pitch Led Display SIX High Drive Technology


1.High Frame Frequency:120hz frame frequency working mode.

2.High Reliance:Anti-static 6Kv.
3.High Refresh Rate:2400Hz for 1/32 duty screen, 4800Hz for 1/16 duty screen, 9600Hz for 1/8 duty,
19200Hz for 1/4 duty.
4.High-Gray Scale:Real 20bit.

5.High-Precision:Work under 0.5mA constant current, brightness 70-300mcd.
6.High-Energy Saving:Save 66% energy.



Indoor HD LED Display P1.6 Parameters:



Specifications



LED chip

SMD 3IN1 1R1G1B

Physical Pixel Pitch

1.6 mm

Physical Pixel Density

378230(dots/sqm)

Pixel composition

1R1G1B

Moduel Size

128.56*144.63*10mm

Moduel resolution

80*90dots

Cabinet thickness

77mm

Bracket of cabinet

Easy to install and dismantle

Brightness

400cd/m2

Colors

16.7millio

Viewing angle

Horizontal 140°,   Vertical  140°

Viewing distance

1.6m -20m

Soft Rubber Mask

To protect player and LED display itself .

Scan frequency

2400hz

Video Frame Rate



Color temperature

6500°K to 11000°K adjustable

Control method

synchronous control by PC or Asynchronous control

Life span( half brightness)

≥100,000 hours

Weight

6Kg/cabinet

IP rate

IP65 front

Average power consumption

350W/sqm

Peak power consumption

1010W/sqm

Input voltage

AC220V/50Hz ±10% or AC110V/60Hz ±10%

AC380V/60Hz ±10%

Operating Environment

Temperature:-20 - +60      Humidity:10%-95%RH

Operating system

Windows XP/7/8/10 or Mac OS

Type of video signal

S-video, composite video ,RGB ,VGA ,DVI



HD SMD P1.6 LED Display Indoor High Definition LED Large TV Case:

SMD P1.6 Slim HD Led Screen / outside advertising boards 6Kg Light 0



After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6. Special service for big project, such as stadium, exhibitions, squares and so on.
