High Definition Digital HD LED Screen Sign for business , lightweight
Product Details
| Cabinet Weight | 4.8kg | Brightness | 800nits |
|---|---|---|---|
| Driver IC | MBI5153 | Grey Scale | 14 Bits |
| High Light | outdoor led video display,led video wall rental |
||
Product Description

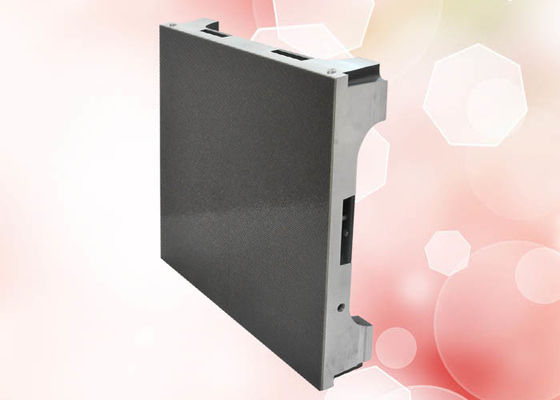

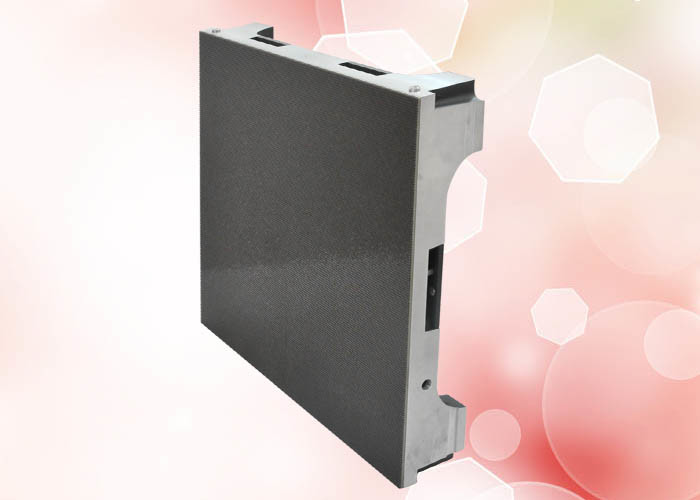

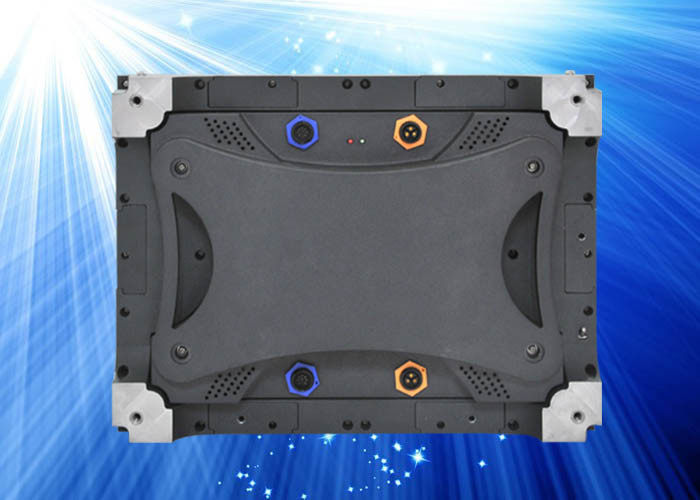

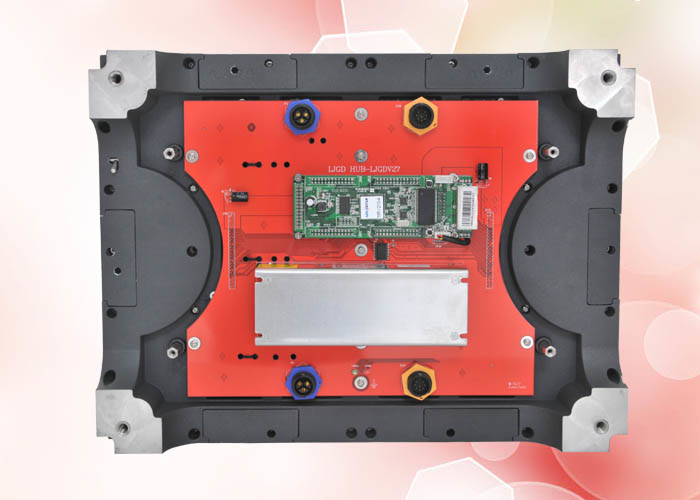

High Definition Digital HD LED Screen Sign for business , lightweight
Seamless connection:
The bright lines and dark lines of this screen can be removed by adjusting the direction of the cabinet. Then, cabinets can be connected seamlessly without the phenomenon of the separation of the connected image.
Point-by-point brightness and chromaticity calibration:
Point-by-point calibration about this kind of display sign will make image more soft and lifelike. The brightness difference before and after calibration is less than 2%, the chromaticity difference less than 0.005.
Removing ghost images:
Serious ghost images usually exist on ordinary LED displays (hazy secondary images, afterglow between bright lines when testing LED displays). YUCHIP's small pixel pitch display products use driver ICs with pre-charge function to reach the anti-ghost effect (images without secondary images when dark bright dots up and below slashes are small).
High refresh rate:
Industry advanced technologies, including dynamic scanning mode, are adopted to YUCHIP's small pixel pitch series, which ensure that the refresh rate is larger than 2880Hz. Flicker lines will not appear while playing videos, relaying TV broadcasts, and showing images.
Indoor HD LED Display P1.6 Parameters:
|
Model Number |
pixel pitch 1.6mm |
|
Description |
Die-casting Aluminum cabinets with hanging function |
|
Application |
Indoor use, AV rental |
|
Pixel configuration |
SMD1010 Black led |
|
Pixel pitch |
1.6mm |
|
Cabinet pixel resolution |
W 240 x H 180pixels |
|
Cabinet dimension |
W: 400mm, H: 300mm, T: 63mm |
|
Module size |
W: 200mm, H: 100mm |
|
Module pixel resolution |
W 120 x H 60 pixels |
|
Pixel density |
360,000dots/sqm |
|
Minimum viewing distance |
2m |
|
Brightness |
800nits |
|
Grey scale |
14 bits |
|
Color Number |
68.7194billion |
|
Display Mode |
Synchronous with video source |
|
Data refresh rate |
≥2880HZ |
|
Driver IC |
MBI5153 |
|
LED drive |
1/30 scanning, constant current |
|
Control system type |
Novastar |
|
Control software name |
Nova studio |
|
Viewing angle |
Vertical 140° Horizontal 140° |
|
Temperature range |
-20℃ to +60℃ |
|
Ambient Humidity |
10%-99% |
|
Service access |
Rear |
|
Cabinet weight |
4.8kg |
|
Power Consumption |
Max: 100 w/pcs; Average : 50w/pcs |
|
Protection Level |
IP43 |
|
Lifetime to 50% brightness |
75,000hr |
|
LED Failure Rate |
<0,00001(Led display line standard <0,0001) |
|
MTBF |
> 100.000 hours |
|
Input power cable |
AC110V to 220V |
|
Signal input |
DVI |
|
Certification |
CE, ROHS, FCC marked |
|
Warranty |
2 Years quality warranty |
High Definition Indoor LED Display P1.6 Indoor HD LED TV Led Vidoe Wall Case:
Application:
Widely used in TV studio hall, military command centers, control centers, clubs, video conference center, banquet hall, and star hotels etc.
About YUCHIP:
YUCHIP is one of the most influential high-tech enterprises in Shenzhen. Since 2004, has always been committed to the quality of the production line, has now developed into a set research and development, production, engineering, sales and localization services.
As one of the professional led display manufacturer, YUCHIP has a high quality, professional and strong production team, market-oriented, constantly innovate based company not only manufacturing technology in traditional LED display screen, constantly improve product cost benefit and market competition, but in the special use of the display technology has a breakthrough. The absolute performance and competitive price to the perfect combination, the LED display screen to every corner of the world, the market at home and abroad to win wide
reputation.
At present, YUCHIP has formed a series of LED display products: outdoor LED display, indoor LED display, rental LED display, stadium LED display, small pitch pixel LED display etc.
