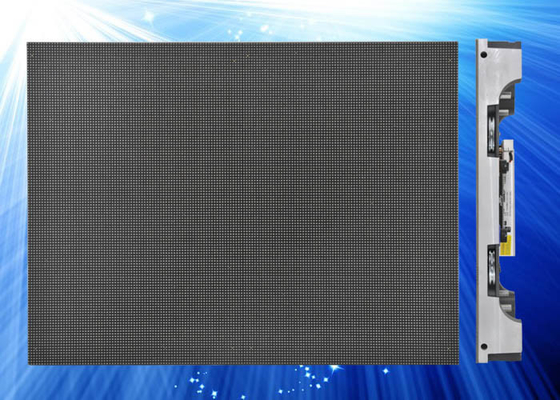

P1.9 Commercial HD Led Screen / full color Large LED TV Panel CE ROHS
Product Details
| Pixel Configuration | SMD1010 Black Led | Data Refresh Rate | ≥2880HZ |
|---|---|---|---|
| Color Temperature | 6,500 | Input Power (max) | 120 |
| High Light | outdoor led video display,led video wall rental |
||
Product Description
P1.9 Commercial HD Led Screen / full color Large LED TV Panel CE ROHS
indoor full color hd small display HD1.9 led module pixel pitch 1.9mm
1. High gray scale and high refresh rate while low brightness;
2. Wide viewing angle, details perfectly showed;
3. Seamless connection, simple but fashionable appearance;
4. Energy conservation and environment protection, saving 15% of energy compared with traditional cabinets;
5. Adjustable brightness (300-800nits).
1.9mm HD Small Pitch LED Video Display Parameters:
|
Parameter |
Unit |
Value |
|
Pitch |
mm |
1.923 |
|
Brightness |
nits |
1,200 |
|
Color temperature |
deg. K |
6,500 |
|
Viewing angle -Horizontal (50% brightness) |
deg. |
140(-70 ~ +70) |
|
Viewing angle - Vertical (50% brightness) |
deg. |
140(-70 ~ +70) |
|
Panel weight |
kg |
5 |
|
Panel width |
mm |
400 |
|
Panel height |
mm |
300 |
|
Panel depth |
mm |
92 |
|
Panel area |
sq. m. |
0.12 |
|
Panel material |
|
Epoxy paint coated Aluminum |
|
Panel Mode |
|
Die-Cast rental |
|
Operating temperature range |
deg. C |
-20 to +60 |
|
Humidity operating |
RH |
10% ~ 60% |
|
Pixel type and configuration |
R/G/B |
3-in-1 SMD |
|
Resolution per panel |
|
208x156 |
|
Dot per panel |
|
32,448 |
|
Dot per sq. meter |
|
270,422 |
|
LED per sq. meter |
|
270,422 |
|
Recommended minimum viewing distance |
m |
1.46 |
|
Recommended best viewing distance |
m |
2-18m |
|
Colors |
|
|
|
Grey scale (linear) |
Levels |
65,536 |
|
Brightness control |
Levels |
256 |
|
Contrast ratio |
|
2,000:1 |
|
Processing depth |
bit |
16 |
|
Video frame rate |
Hertz |
60 |
|
Display refresh rate |
Hertz |
1,200 |
|
Input voltage (nominal) |
VAC |
110 to 240 |
|
Input power frequency |
Hertz |
50 to 60 |
|
Input power (max) |
Watts / panel. |
120 |
|
Input power (typical) |
Watts / panel. |
48 |
|
Lifetime (50% brightness) |
Hours |
≥100,000 |
|
Red wavelength (dominant) |
nm |
620~625 |
|
Green wavelength (dominant) |
nm |
520~525 |
|
Blue wavelength (dominant) |
nm |
470~475 |
|
Multimedia data format |
|
DVI,MPG,AVI,WMV,RM etc. |
|
Data interconnection |
|
UTP Cat 5/Optical Fiber |
|
Mounting system |
|
Hanging/Fixed |

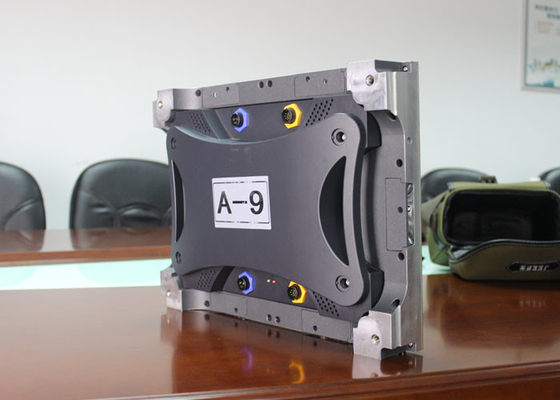

P1.9 Indoor HD LED Display HD Led Video Wall Ultra HD LED TV Screen Case:
Application:
Widely used in TV studio hall, military command centers, control centers, clubs, video conference center, banquet hall, and star hotels etc.
Our Services:
1. Your enquiry will be replied in 24 working hours.
2. Experienced staffs answer all your query in fluent English and Russian.
3. Customized design is available,OEM & ODM are welcomed.
4. Exclusive and unique solution can be provided by our well-trained and professional engineers and staffs.
5. Area distributor enjoys special discount and protection of sales area.
6. Your visit will warmly welcome in anytime.
7. 2 Years guarantee. Only charge for cost of repair after 2 years.
8. YUCHIP assists with trainning and technical support for clients in the factory. This service is free of charge.
9. YUCHIP offer oversea technical support by well-trained engineers if clients required. The relevant costs charge by clients.
