Small pixel electronic P1.9 HD Led Screen / digital video display 1/26 Scan
Product Details
| Pixel Pitch | 1.92mm | Drive Mode | 1/26 Scan |
|---|---|---|---|
| Brightness | 300-800cd/sqm | Cabinet Weight | 4kg/pcs |
| High Light | outdoor led video display,led video wall rental |
||
Product Description
Small pixel electronic P1.9 HD Led Screen / digital video display 1/26 Scan
Indoor Small pixel led display P1.9 HD Rental indoor LED screen
Lightweight, Convenient in transporting and installing & saving labor cost, suitable for flow show.
Nice appearance and simple structures, unit cabinet of 400mmx300mm, die cast aluminum
Jointed correctly, being installed & dismounted by one person without tool.
Humanized operating interface with breakdown indicator lights, easy to maintain.

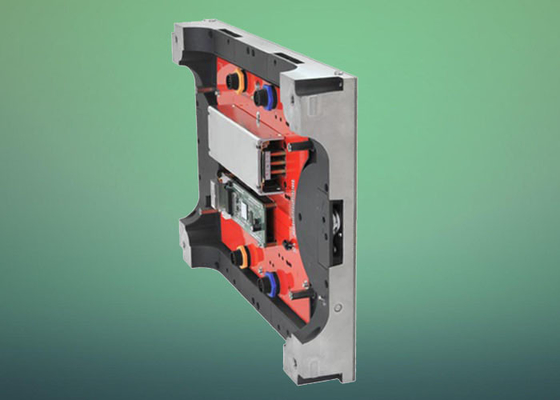

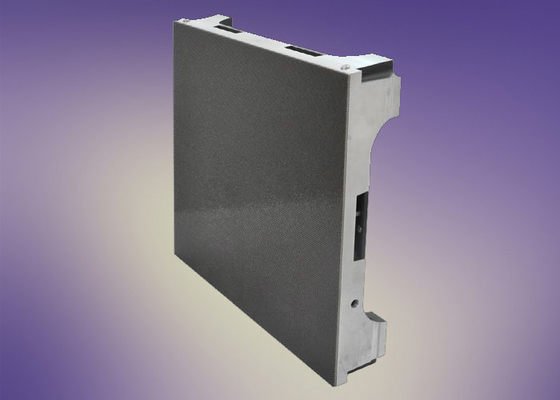

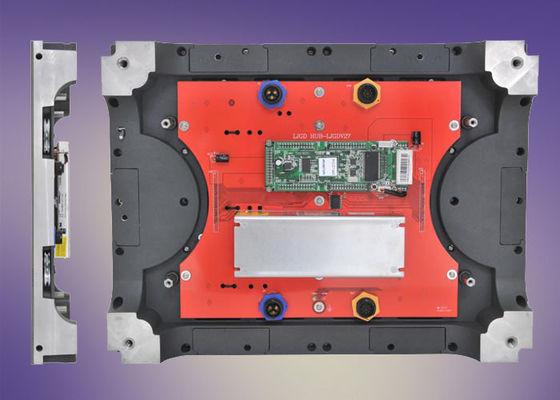

Detailed Images
Logo print on back of led cabinet
We can make customized logo on the back of led panel
Fast lock design special
Quick and easy assembly led display cabinet
Indoor led display screens application:
P1.9 events led display screen is the perfect solution for Conference meeting room,live broadcast, Concert, TV show, live show, stage background,club, nightclub and other rental business.
1.9mm HD Small Pitch LED Video Display Parameters:
| Type | 1010 black body |
| Pixel Pitch | 1.92mm |
| Arrangement | 1R1G1B(3 in 1) |
| Chip parameters | Red WLD:(625-630nm) IV:(65-115mcd) |
| Chip parameters | GreenWLD:(523-526nm) IV:(215-265mcd) |
| Chip parameters | Blue WLD:(470-473nm) IV:(33-83mcd) |
| Pixel Density | 270400 Dots/sqm |
| Cabinet Resolution | 208×156=32448(Dots) |
| Cabinet Dimension(W*H*D) | 400×300×95mm |
| Drive Mode | 1/26 Scan |
| Refresh Rate | ≥1920Hz(Depending on the system configuration) |
| Driver IC | PWM High refresh,High grayscale driver IC |
| Grey Scale | 14-16bit |
| Brightness | 300-800cd/sqm |
| Color Temperature | 8000K±500(Can be customized) |
| Viewing Angle | 140(Horizontal),120(Vertical) |
| Best Viewing Distance | 2m |
| Input Voltage | AC-110/220V±10%(Power supply optional) |
| Output Voltage | DC4.2V |
| Power Consumption (Max) | 100W/pcs |
| Power Consumption (Average) | 50W/pcs(During normal video playback) |
| Life-span | 50000 hours |
| Working Temperature | -10℃~50℃ |
| Cabinet Weight | 4kg/pcs |
| PC Operating System | Microsoft Windows 7, XP and Vista |
| Communication Type | Net cable,3G,WIFI(Sold separately) |
| Software | Nova Studio |
| Language | Chinese,Traditional Chinese,English,French,Spanish,Korean,Japanese |
| Certificate | CE,ROHS,FCC,ISO9001,TUV |
| Control card inputs | DVI,USB,RJ45,HDMI(Sold separately) |
P1.9 Indoor HD LED Display HD Led Video Wall Ultra HD LED TV Screen Case:
Application:
Widely used in TV studio hall, military command centers, control centers, clubs, video conference center, banquet hall, and star hotels etc.
Our Services:
1. Your enquiry will be replied in 24 working hours.
2. Experienced staffs answer all your query in fluent English and Russian.
3. Customized design is available,OEM & ODM are welcomed.
4. Exclusive and unique solution can be provided by our well-trained and professional engineers and staffs.
5. Area distributor enjoys special discount and protection of sales area.
6. Your visit will warmly welcome in anytime.
7. 2 Years guarantee. Only charge for cost of repair after 2 years.
8. YUCHIP assists with trainning and technical support for clients in the factory. This service is free of charge.
9. YUCHIP offer oversea technical support by well-trained engineers if clients required. The relevant costs charge by clients.
