Most Popular Fixed Indoor LED Advertising Display High Resolution
Product Details
| Cabinet Weight | 4kg/pcs | Viewing Angle | 140(Horizontal),120(Vertical) |
|---|---|---|---|
| Refresh Rate | ≥1920Hz | Grey Scale | 14-16bit |
| High Light | outdoor led video display,led video wall rental |
||
Product Description
Most Popular Fixed Indoor LED Advertising Display High Resolution
full HD : Each panel resolution is 320*180 so 6*6 panels can make 1920*1080 full HD(2K).Also, convenient cabinet design can make resolution bigger such as 4K or more.
grey scale with low brightness : For small pixel LED display, the brightness should be very low for protection to people's eye. YUCHIP's display can still get good grey scale with low brightness.So there will be no problem if people stare at it long time.
noiseless : Since small pixel LED screen are applied for high-level cases, so it must be noiseless. YUCHIP's 55'' LED display is designed without fans to make sure complete quietness.

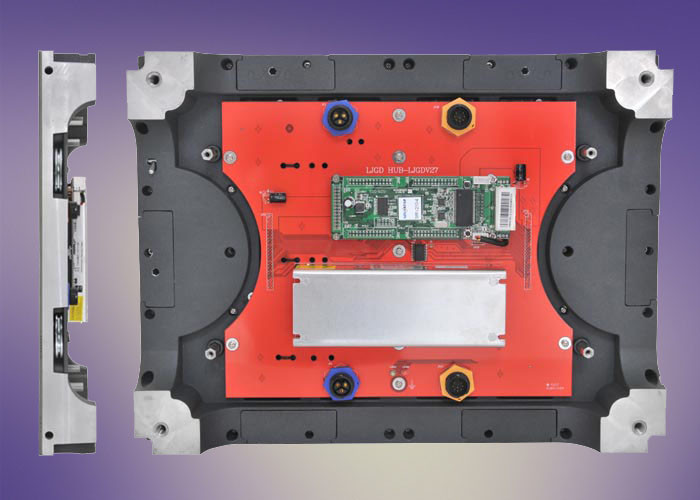

Flexible design for both front and rear service :There are both front and rear service for optional.Modules, power and cards can be take out from front or back. So wall mounted installation is possible for outdoor application and it can save quite a lot in steel structure. At the same time, the connection and waterproof is never affected by front service design.
high refresh rate : High refresh rate is never failed to be mentioned for such cases. Our PCB, IC and control system are perfectly combined to achive satisfying effect. LED display can still show good effect viewed from camera.
1.9mm HD Small Pitch LED Video Display Parameters:
| Type | 1010 black body |
| Pixel Pitch | 1.92mm |
| Arrangement | 1R1G1B(3 in 1) |
| Chip parameters | Red WLD:(625-630nm) IV:(65-115mcd) |
| Chip parameters | GreenWLD:(523-526nm) IV:(215-265mcd) |
| Chip parameters | Blue WLD:(470-473nm) IV:(33-83mcd) |
| Pixel Density | 270400 Dots/sqm |
| Cabinet Resolution | 208×156=32448(Dots) |
| Cabinet Dimension(W*H*D) | 400×300×95mm |
| Drive Mode | 1/26 Scan |
| Refresh Rate | ≥1920Hz(Depending on the system configuration) |
| Driver IC | PWM High refresh,High grayscale driver IC |
| Grey Scale | 14-16bit |
| Brightness | 300-800cd/sqm |
| Color Temperature | 8000K±500(Can be customized) |
| Viewing Angle | 140(Horizontal),120(Vertical) |
| Best Viewing Distance | 2m |
| Input Voltage | AC-110/220V±10%(Power supply optional) |
| Output Voltage | DC4.2V |
| Power Consumption (Max) | 100W/pcs |
| Power Consumption (Average) | 50W/pcs(During normal video playback) |
| Life-span | 50000 hours |
| Working Temperature | -10℃~50℃ |
| Cabinet Weight | 4kg/pcs |
| PC Operating System | Microsoft Windows 7, XP and Vista |
| Communication Type | Net cable,3G,WIFI(Sold separately) |
| Software | Nova Studio |
| Language | Chinese,Traditional Chinese,English,French,Spanish,Korean,Japanese |
| Certificate | CE,ROHS,FCC,ISO9001,TUV |
| Control card inputs | DVI,USB,RJ45,HDMI(Sold separately) |
P1.9 Indoor HD LED Display HD Led Video Wall Case:
Application:
Widely used in TV studio hall, military command centers, control centers, clubs, video conference center, banquet hall, and star hotels etc.
Our Products Advantages:
1) Price Advantage: we have the best competitive price at the market, also have the same even better quality.
2) Performance Advantage: Best Equality, high consistency, Big viewing angle, can repair each led lamps
3) Quality advantage: From material to finished product, from design to produce, we control all steps, that's the guarantee of the quality and reliability.
4) Service advantage: Better service at same situation, better cooperation at same service!
