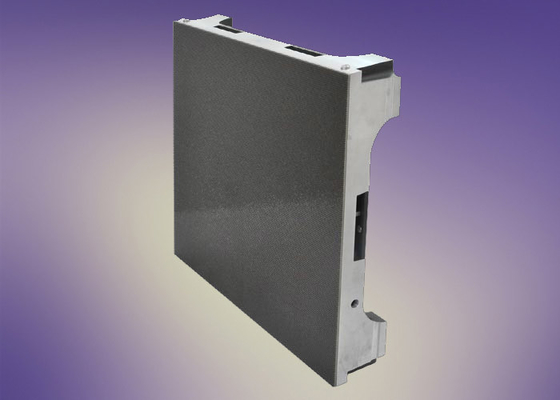

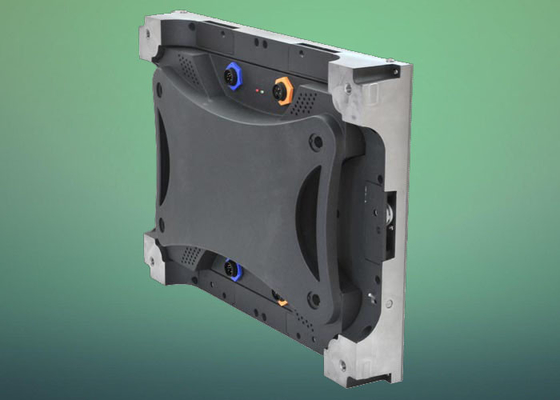

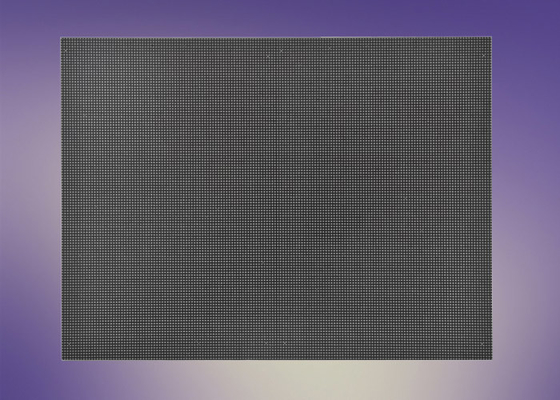

P1.6 P1.9 P2.5 clear indoor led video wall / rgb led display board 4kg / pcs
Product Details
| Cabinet Weight | 4kg/pcs | Viewing Angle | 140(Horizontal),120(Vertical) |
|---|---|---|---|
| Refresh Rate | ≥1920Hz | Grey Scale | 14-16bit |
| High Light | outdoor led video display,led video wall rental |
||
Product Description
P1.6 P1.9 P2.5 clear indoor led video wall / rgb led display board 4kg / pcs
Features:
1.Ultra-thin & ultra-light
2.Die casted AL cabinets, high precision with seamless splicing
3.Standard cabinet size: 400x300mm, convenient for area calculation
4.Highly effective & quick for transportation and screen assembling
5.SMD black light, wider viewing angle, high-contrast(5000:1),soft image
6.Special buckles structural connection between the cabinets,don’t need other tools
7.Cabinets are in common use for standard modules,shorten production cycl.
1.9mm HD Small Pitch LED Video Display Parameters:
| Type | 1010 black body |
| Pixel Pitch | 1.92mm |
| Arrangement | 1R1G1B(3 in 1) |
| Chip parameters | Red WLD:(625-630nm) IV:(65-115mcd) |
| Chip parameters | GreenWLD:(523-526nm) IV:(215-265mcd) |
| Chip parameters | Blue WLD:(470-473nm) IV:(33-83mcd) |
| Pixel Density | 270400 Dots/sqm |
| Cabinet Resolution | 208×156=32448(Dots) |
| Cabinet Dimension(W*H*D) | 400×300×95mm |
| Drive Mode | 1/26 Scan |
| Refresh Rate | ≥1920Hz(Depending on the system configuration) |
| Driver IC | PWM High refresh,High grayscale driver IC |
| Grey Scale | 14-16bit |
| Brightness | 300-800cd/sqm |
| Color Temperature | 8000K±500(Can be customized) |
| Viewing Angle | 140(Horizontal),120(Vertical) |
| Best Viewing Distance | 2m |
| Input Voltage | AC-110/220V±10%(Power supply optional) |
| Output Voltage | DC4.2V |
| Power Consumption (Max) | 100W/pcs |
| Power Consumption (Average) | 50W/pcs(During normal video playback) |
| Life-span | 50000 hours |
| Working Temperature | -10℃~50℃ |
| Cabinet Weight | 4kg/pcs |
| PC Operating System | Microsoft Windows 7, XP and Vista |
| Communication Type | Net cable,3G,WIFI(Sold separately) |
| Software | Nova Studio |
| Language | Chinese,Traditional Chinese,English,French,Spanish,Korean,Japanese |
| Certificate | CE,ROHS,FCC,ISO9001,TUV |
| Control card inputs | DVI,USB,RJ45,HDMI(Sold separately) |
P1.9 Indoor HD LED Display HD Led Video Wall Case:
Application:
Widely used in TV studio hall, military command centers, control centers, clubs, video conference center, banquet hall, and star hotels etc.
Serivices:
1)Reply your enquiry of led display in 24 working hours.
2)Customized design is available,OEM & ODM are welcomed.
3)Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.
4)Special discount and protection of sales area provided to our distributor.
5)Warmly welcome your visit in our company if available.
6)Warranty: 24 months, a little investment for longer warranty time.
