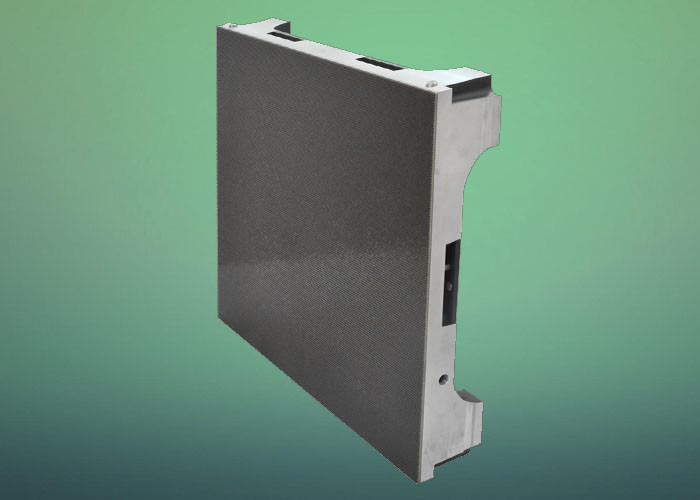

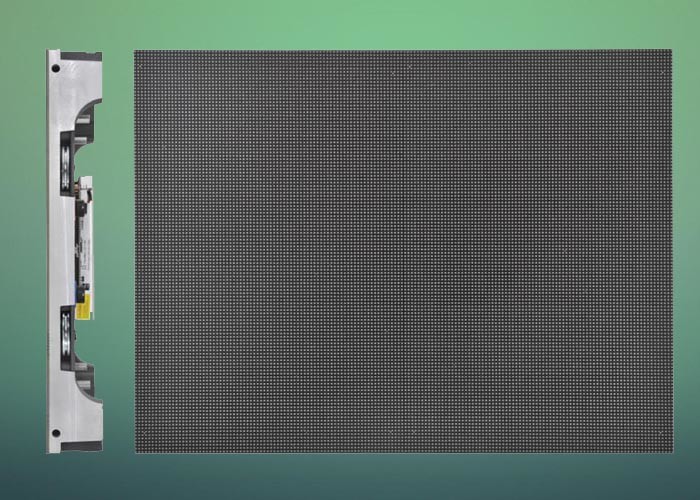

1.6mm CE Rohs Slim HD Led Screen panel display systems energy saving
Product Details
| Protection Level | IP43 | Driver IC | MBI5153 |
|---|---|---|---|
| Pixel Configuration | SMD1010 | Brightness | 800nits |
| High Light | outdoor led video display,led video wall rental |
||
Product Description
1.6mm CE Rohs Slim HD Led Screen panel display systems energy saving
1. High-Precision: Work under 0.5mA constant current, brightness 70-300mcd.
2. High Refresh Rate: 2400Hz for 1/32 duty screen, 4800Hz for 1/16 duty screen, 9600Hz for 1/8 duty,
1920Hz for 1/4 duty.
3.High-Energy Saving : Save 66% energy.
4. 4:3 Design and Good Uniformity. Perfect replacement for LCD display. Die cast aluminum cabinet,
guarantee you a flat and seamless screen.
5. Lightweight. Convenient in transporting and installing & saving labor cost, suitable for flow shows.
Application:
Widely used in TV studio hall, military command centers, control centers, clubs, video conference center, banquet hall, and star hotels etc.
Indoor HD LED Display P1.6 Parameters:
|
Model Number |
pixel pitch 1.6mm |
|
Description |

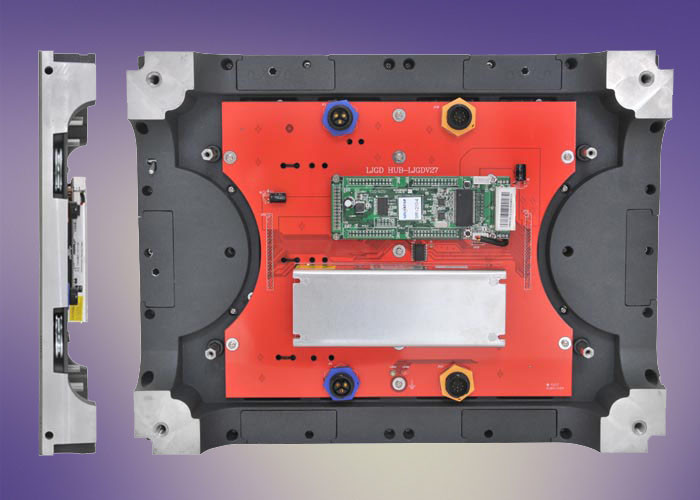

Die-casting Aluminum cabinets with hanging function |
|
Application |
Indoor use, AV rental |
|
Pixel configuration |
SMD1010 Black led |
|
Pixel pitch |
1.6mm |
|
Cabinet pixel resolution |
W 240 x H 180pixels |
|
Cabinet dimension |
W: 400mm, H: 300mm, T: 63mm |
|
Module size |
W: 200mm, H: 100mm |
|
Module pixel resolution |
W 120 x H 60 pixels |
|
Pixel density |
360,000dots/sqm |
|
Minimum viewing distance |
2m |
|
Brightness |
800nits |
|
Grey scale |
14 bits |
|
Color Number |
68.7194billion |
|
Display Mode |
Synchronous with video source |
|
Data refresh rate |
≥2880HZ |
|
Driver IC |
MBI5153 |
|
LED drive |
1/30 scanning, constant current |
|
Control system type |
Novastar |
|
Control software name |
Nova studio |
|
Viewing angle |
Vertical 140° Horizontal 140° |
|
Temperature range |
-20℃ to +60℃ |
|
Ambient Humidity |
10%-99% |
|
Service access |
Rear |
|
Cabinet weight |
4.8kg |
|
Power Consumption |
Max: 100 w/pcs; Average : 50w/pcs |
|
Protection Level |
IP43 |
|
Lifetime to 50% brightness |
75,000hr |
|
LED Failure Rate |
<0,00001(Led display line standard <0,0001) |
|
MTBF |
> 100.000 hours |
|
Input power cable |
AC110V to 220V |
|
Signal input |
DVI |
|
Certification |
CE, ROHS, FCC marked |
|
Warranty |
2 Years quality warranty |
indoor full color hd small display HD led module pixel pitch Case:
Our Services
indoor full color hd small display HD1.6 led module pixel pitch 1.6mm
1. Your enquiry will be replied in 24 working hours.
2. Experienced staffs answer all your query in fluent English and Russian.
3. Customized design is available,OEM & ODM are welcomed.
4. Exclusive and unique solution can be provided by our well-trained and professional engineers and staffs.
5. Area distributor enjoys special discount and protection of sales area.
6. Your visit will warmly welcome in anytime.
7. 2 Years guarantee. Only charge for cost of repair after 2 years.
8. YUCHIP assists with trainning and technical support for clients in the factory. This service is free of charge.
9. YUCHIP offer oversea technical support by well-trained engineers if clients required. The relevant costs charge by clients.
