Thin led full hd tv / 14 bits electronic led display board for advertising
Product Details
| Protection Level | IP43 | Brightness | 800nits |
|---|---|---|---|
| Grey Scale | 14 Bits | Data Refresh Rate | ≥2880HZ |
| High Light | outdoor led video display,led video wall rental |
||
Product Description
Thin led full hd tv / 14 bits electronic led display board for advertising
Smooth and exquisite picture processing,performance of high gray scale and high refresh rate.

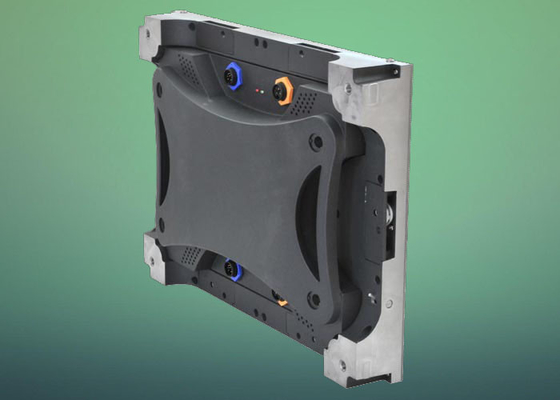

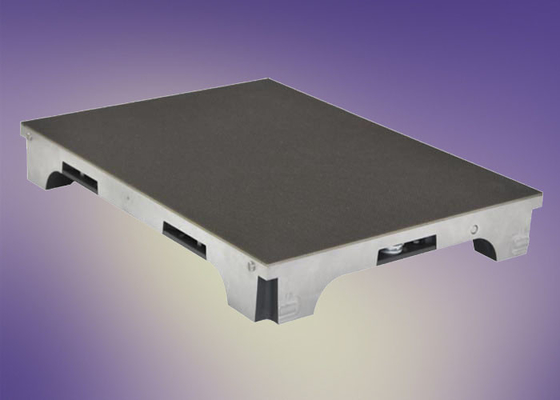

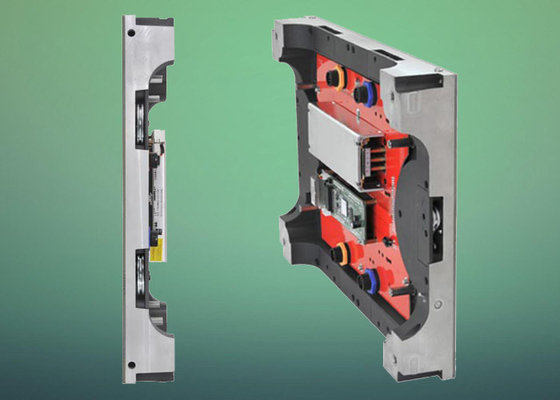

high reliable: Die-casting Aluminum cabinet make the quality more reliable
Ultra-long life:Work around the clock,high quality leds
High resolution:Wide viewing angle in suitable distance
Easy installation:YUCHIP's fast lock design make it easy to install
Seamless screen: YUCHIP exhibition patented kit design well controlled splice error between modules within ±0.1mm
Indoor HD LED Display P1.6 Parameters:
|
Model Number |
pixel pitch 1.6mm |
|
Description |
Die-casting Aluminum cabinets with hanging function |
|
Application |
Indoor use, AV rental |
|
Pixel configuration |
SMD1010 Black led |
|
Pixel pitch |
1.6mm |
|
Cabinet pixel resolution |
W 240 x H 180pixels |
|
Cabinet dimension |
W: 400mm, H: 300mm, T: 63mm |
|
Module size |
W: 200mm, H: 100mm |
|
Module pixel resolution |
W 120 x H 60 pixels |
|
Pixel density |
360,000dots/sqm |
|
Minimum viewing distance |
2m |
|
Brightness |
800nits |
|
Grey scale |
14 bits |
|
Color Number |
68.7194billion |
|
Display Mode |
Synchronous with video source |
|
Data refresh rate |
≥2880HZ |
|
Driver IC |
MBI5153 |
|
LED drive |
1/30 scanning, constant current |
|
Control system type |
Novastar |
|
Control software name |
Nova studio |
|
Viewing angle |
Vertical 140° Horizontal 140° |
|
Temperature range |
-20℃ to +60℃ |
|
Ambient Humidity |
10%-99% |
|
Service access |
Rear |
|
Cabinet weight |
4.8kg |
|
Power Consumption |
Max: 100 w/pcs; Average : 50w/pcs |
|
Protection Level |
IP43 |
|
Lifetime to 50% brightness |
75,000hr |
|
LED Failure Rate |
<0,00001(Led display line standard <0,0001) |
|
MTBF |
> 100.000 hours |
|
Input power cable |
AC110V to 220V |
|
Signal input |
DVI |
|
Certification |
CE, ROHS, FCC marked |
|
Warranty |
2 Years quality warranty |
