2RGB P25.6 Flexible Curtain LED Display for Outdoor Advertising
Product Details
| High Light | led curtain screen,led flexible display |
||
|---|---|---|---|
Product Description

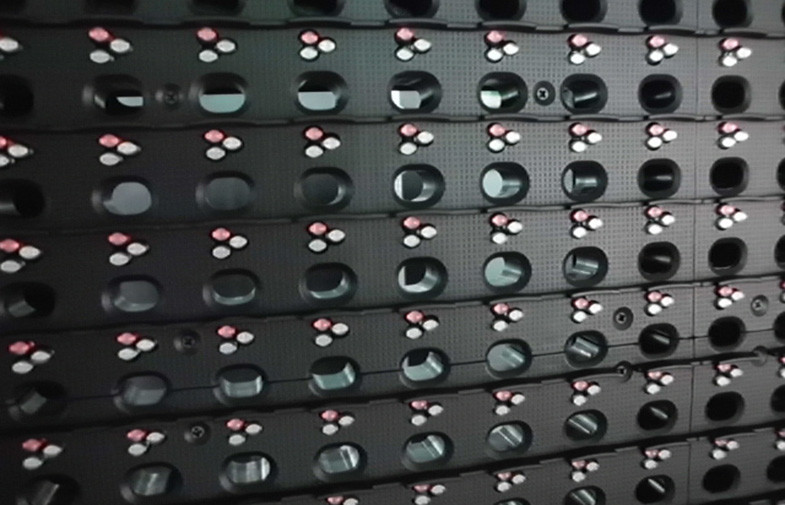

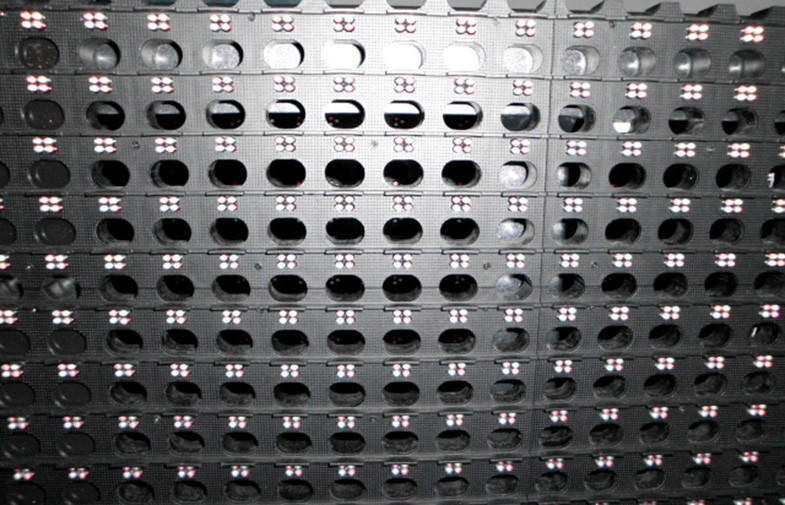

2RGB P25.6 Flexible Curtain LED Display for Outdoor Advertising
Quick Detail:
1, DIP 346 2R1G1B;
2, High brightness up to 7000cdp/㎡

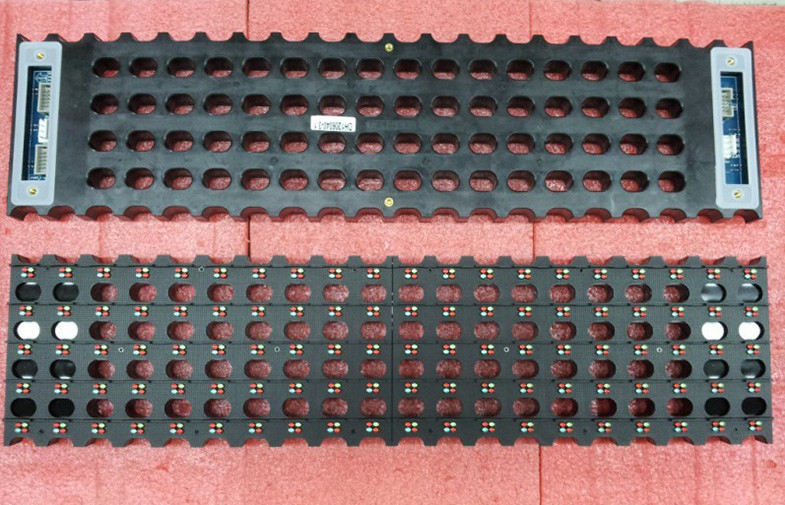

3, LED module: 512mm x 128mm;
4 LED cabinet: 1024mm x 1024mm x 90mm;
5, Cabient weight: 35kg;
6, Light transmittance: 40%
Description:
1. P25.6 outdoor curtain LED screen is of lighter weight which featured as fast assembly and labour cost saving;
2. P25.6 LED screen curtain is waterproof and dustproof of IP65 for outdoor LED screen projects use;
3. 2RGB P25.6 outdoor LED curtain screen is of high brightness up to 8000cd/㎡, insuring to deliver clear and vivid image even under direct sunshine;
4. Curtain LED display P25.6 is of ultra light weight at about 30kg lighter weight compared with stanard outdoor LED displays, makes P25.6 LED display a very suitable option for large size LED billboard projects;
5. Outdoor curtain LED screen's ligher weight features makes the LED billboard project saves cost in installation steel structure also reduce structure load bearing,suitable for large size LED billbaords;
6. Curtain LED display is of low windage and it reduces windage, saving structure costs because of it’s ventilation advantage;
Applications:
Huge LED Display
Large Size LED Billboard
Big Street LED Billboards
Wall Mounted LED Screen
Shopping Mall LED Display
Super Market LED Display Screen
Outdoor Curtain LED Display
Outdoor Curtain LED Screen
Outdoor Waterproof Curtain LED Display
Lighter Weight Roof Building Curtain LED Display
Specifications :
| LED Module Parameter | |
| Pixel pitch (mm) | 25.6 |
| Pixel configuration | 1R1G1B |
| Encapsulation | DIP346 |
| Colors matches | 6:3:1 |
| Module resolution (pixels) | 20 x 5 |
| Module pixel | 100 |
| Module size (mm) | 512 x 128 |
| LED CABINET SPECIFICATION | |
| Cabinet size (mm) | 1024 x 1024 x 90 |
| Cabinet resolution (pixels) | 40 x 40 |
| Cabinet pixels (pixels) | 1600 |
| Cabinet material | Steel |
| Cabinet weight (kg) | 30 |
| LED DISPLAY SPECIFICATION | |
| Pixel density(pixel/m2) | 1521 |
| Brightness(cd/m2) | ≥6500 (adjustable) |
| Brightness adjusted | 100 grade by software or by Auto-optic induced |
| View angle | Horizontal 110°; Vertical 70° |
| Best viewing distance (m) | ≥25m |
| Communication distance(m) | <100meter by Internet Cable(without Relay; Multi mode fiber cable ＜ 500m; Single mode fiber cable ＜ 20km |
| Display work method | Static |
| LED driving method | Constant driving current |
| Light transmittance | 40% |
| Color contrast ratio | 1800:1 |
| Gray Grade | 16bit |
| Display Color | 439, 804, 651, 110 |
| Refresh Frequency (Hz) | ≥1200 |
| Picture display method | Intellective control technology , test-itself technology , correct technology, Synchronization Control |
| Input signal | DVI (S-VIDEO, CVBS, ,DP,HDMI,VGA, PAL/NTSC, etc.through Video processor converting ) |
| System operating | WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc. |
| Front/Rear IP Level | IP65 |
| Working temperature(ºC) | -20～+60 |
| Stored temperature (ºC) | -30～+80 |
| Operation humidity(RH) | 0-95% |
| Display Lifetime(hours) | 10 years or more( natural environment) 100000 hours( ideal environment) |
| Maintenance | Rear side |
| Working Voltage | AC110 / AC220V±10% 47～63HZ |
| Power consumption | Max: 850W/㎡ ; Ave:300W/㎡ |
| Out of controlled dot | ≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the wave length are both >10% depart to the normal one) |
Competitive advantages:
1, Curtain LED display screen is cost effective: LED screen curtain is of much lower weight, saving much cost on people for installation, also saves much cost on steel structure;
2, LED curtain display is of better heat dissipation advantage and not needs air conditioner cooling system.
3, P25.6 LED screens curtain is of light transmittance at 40%;
4, 2RGB P25.6 outdoor curtain LED display is featured as energy saving: curtain LED display screen is utilizing unique 4.2V current design and this enables about 30% energy saving;
5, Curtain LED screen is of lighter weight: about 30kg lighter weight which makes curtain LED display suits for large size LED display projects like street LED billboards, wall mounted LED screen etc;
6, IP65 waterproof and dustproof for outdoor environment use;
