P8 Outdoor Advertising Led Screens DVI HDMI Dual Maintenance LED Sign
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Highlight | electronic led display,led video wall |
||
|---|---|---|---|
Product Description
P8 Outdoor Advertising Led Screens DVI HDMI Dual Maintenance LED Sign
Quick Detail:
1, High resolution at 15625 pixels/㎡;
2, Front and back maintenance;
3, LED chips: DIP246;
4, Module Size: 320mm x 320mm;
5, Power Supply: Meanwell;
6, MBI5020 IC, MBI5024 IC;
Description:
1, P8 outdoor dual maintenance LED screen is of high resolution for outdoor fixed LED billboard projects;
2, P8 front accessible LED signs is of high resolution at 15625 pixels/㎡;

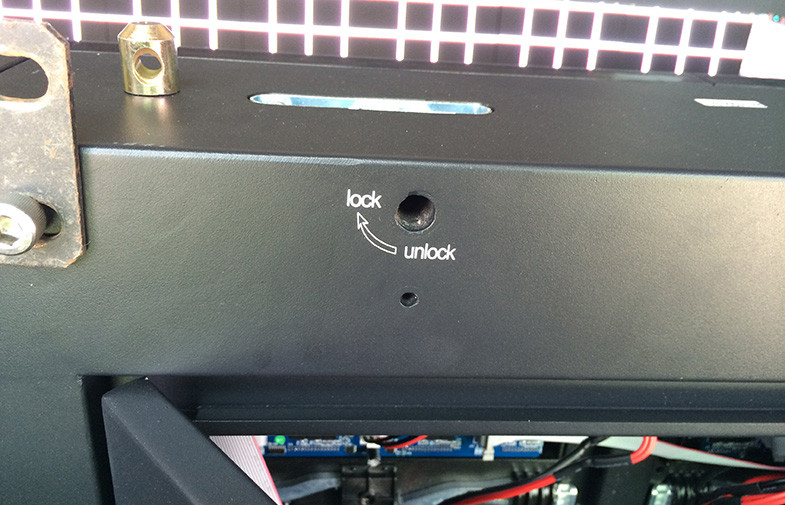

3, Easy maintenance, there are no screws between LED module and cabinet ,which can be easier to disassemble and install,it only take a few seconds to disassemble;
4, DIP246 P8 dual maintenance LED display is of good waterproof effect for outdoor environment use;
5, Outdoor P8 LED display is of high brightness up to 7000 cd/㎡, enabling LED screen a clear and vivid image and video presentation even under direct sunshine;
6, P8 front maintenance LED screen is widely installed for LED billboard projects that limited back space and difficult for back or rear maintenance;
Applications:
Easy Maintenance LED Signage
Front Maintenance LED Billboard
Front Accessible LED Signs
Front Maintenance Digital LED Sign
LED Digital Sign Front Maintenance
Electronic LED Sign Front Accessible
Front Maintenance LED Sign
Front Open LED Display
Dual Maintenance LED Screen
Front and Back Maintenance LED Display Screen
Front and Rear Maintenance LED Panel
Specifications :
| LED Module Parameter | |
| Pixel pitch (mm) | 8 |
| Pixel configuration | SMD3528 |
| Encapsulation | 3 in 1 |
| Colors matches | 6:3:1 |
| Module resolution (pixels) | 40 x 40 |
| Module pixel | 1600 |
| Module size (mm) | 320 x 320 |
| LED CABINET SPECIFICATION | |
| Cabinet size (mm) | 960 x 960 x 150 |
| Cabinet resolution (pixels) | 120 x 120 |
| Cabinet pixels (pixels) | 14400 |
| Cabinet material | Steel |
| Cabinet weight (kg) | 55 |
| LED DISPLAY SPECIFICATION | |
| Pixel density(pixel/m2) | 15625 |
| Brightness(cd/m2) | ≥7000 (adjustable) |
| Brightness adjusted | 100 grade by software or by Auto-optic induced |
| View angle | Horizontal 110°; Vertical 70° |
| Best viewing distance (m) | ≥6m |
| Communication distance(m) | <100meter by Internet Cable(without Relay; Multi mode fiber cable ＜ 500m; Single mode fiber cable ＜ 20km |
| Display work method | 1/4 Scan |
| LED driving method | Constant driving current |
| Color contrast ratio | 1800:1 |
| Gray Grade | 16bit |
| Display Color | 439, 804, 651, 110 |
| Refresh Frequency (Hz) | ≥600 |
| Picture display method | Intellective control technology , test-itself technology , correct technology, Synchronization Control |
| Input signal | DVI (S-VIDEO, CVBS, ,DP,HDMI,VGA, PAL/NTSC, etc.through Video procrssor converting ) |
| System operating | WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc. |
| Front/Rear IP Level | IP65 |
| Working temperature(ºC) | -20～+60 |
| Stored temperature (ºC) | -30～+80 |
| Operation humidity(RH) | 0-95% |
| Display Lifetime(hours) | 10 years or more( natural environment) 100000 hours( ideal environment) |
| Maintenance | Front & Rear |
| Working Voltage | AC110 / AC220V±10% 47～63HZ |
| Out of controlled dot | ≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the wave length are both >10% depart to the normal one) |
Competitive advantages:
1, P8 dual maintenance LED display is utilizing best quality raw materials like Epistar LED chips, MBI5020 and MBI5024 LED driver IC, meanwell power supply etc. to insure stable high quality.
2. There is no screw between LED modules and LED panel for fast and easy maintenance;
3. Suitable for LED display projects that limit installation site back side space;
4. Space saving:For installation site that backside space limited,it's a perfect option of this dual maintenance which allows front maintenance and not need backside space;
5. P8 DIP246 dual maintenance LED screen is available for both front and back maintenance;
6. P8 dual maintenance LED screens is of high resolution to show clear and vivid LED billboard advertising, installed for large size LED billboard.
