P10 Dual Maintenance Led Advertising Screens for America LED Sign Use
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Highlight | electronic led display,digital signage display |
||
|---|---|---|---|
Product Description
P10 Dual Maintenance Led Advertising Screens for America LED Sign Use
Quick Detail:
1, LED Source: DIP346

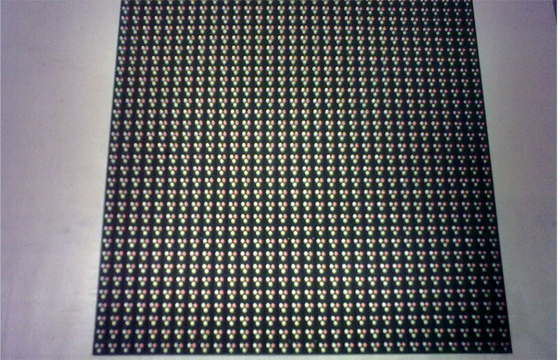

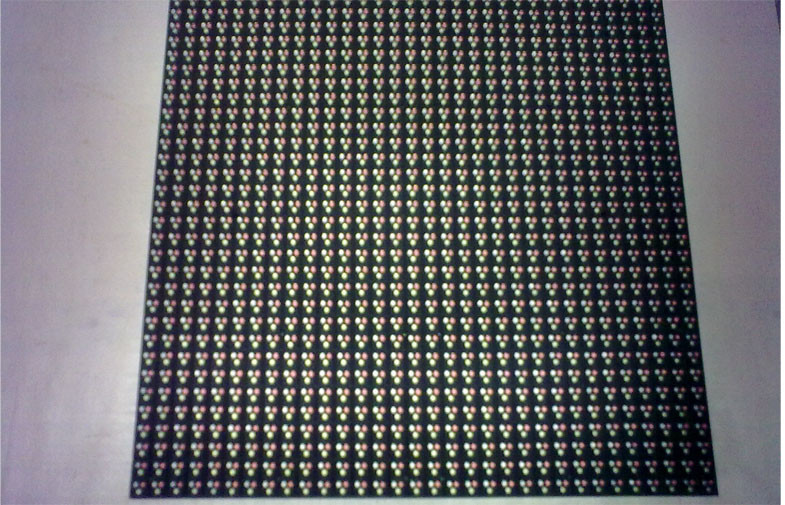

2, Module Size: 320mm x 320mm;
3, Power Supply: Meanwell;

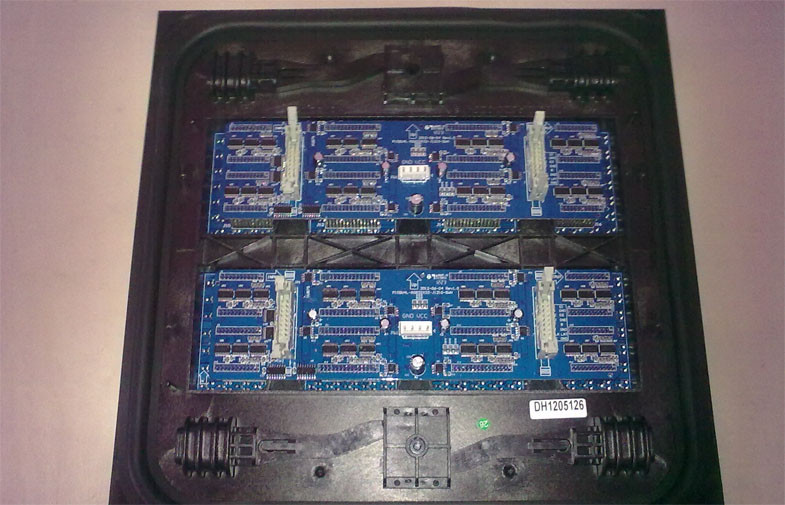

4. MBI5020 IC, MBI5024 IC;
5. Epistar, Cree,Nichia LED chip;
6. Cabinet customized;
Description:
1. High definition:10,000 pixels per square meter;
2. IP65:Waterproof and dustproof for outdoor enviroment;

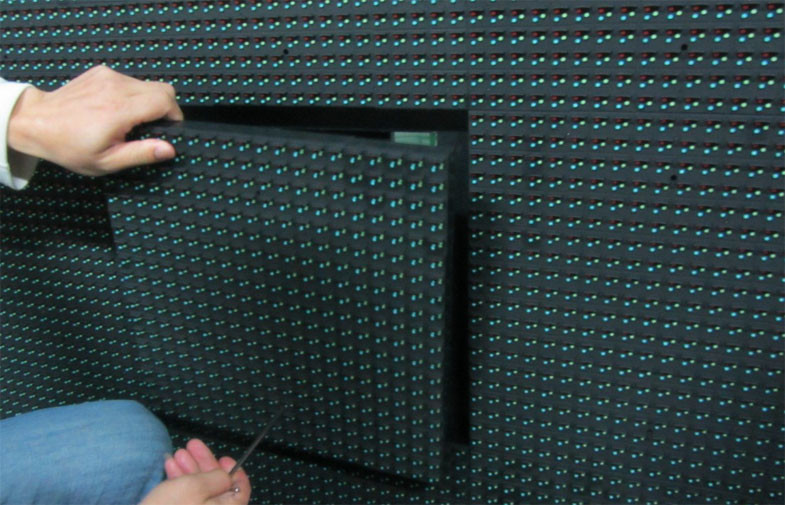

3. Easy maintenance:There are no screws between LED module and cabinet ,which can be easier to disassemble
and install,it only take a few seconds to disassemble;
4. Space saving:For installation site that backside space limited,it's a perfect option of this dual maintenance which allows
front maintenance and not need backside space;
Applications:
Front Maintenance LED Sign
Front Open LED Display
Dual Maintenance LED Screen
Front and Back Maintenance LED Display Screen
Front and Rear Maintenance LED Panel
Easy Maintenance LED Signage
Specifications :
| LED Module Parameter | |
| Pixel pitch (mm) | 10 |
| Pixel configuration | 1R1G1B |
| Encapsulation | DIP346 |
| Colors matches | 6:3:1 |
| Module resolution (pixels) | 32 x 32 |
| Module pixel | 1024 |
| Module size (mm) | 320 x 320 |
| LED CABINET SPECIFICATION | |
| Cabinet size (mm) | 960 x 960 x 150 |
| Cabinet resolution (pixels) | 96 x 96 |
| Cabinet pixels (pixels) | 9216 |
| Cabinet material | Steel |
| Cabinet weight (kg) | 55 |
| LED DISPLAY SPECIFICATION | |
| Pixel density(pixel/m2) | 10000 |
| Brightness(cd/m2) | ≥8000 (adjustable) |
| Brightness adjusted | 100 grade by software or by Auto-optic induced |
| View angle | Horizontal 110°; Vertical 70° |
| Best viewing distance (m) | ≥8m |
| Communication distance(m) | <100meter by Internet Cable(without Relay; Multi mode fiber cable ＜ 500m; Single mode fiber cable ＜ 20km |
| Display work method | 1/4 Scan |
| LED driving method | Constant driving current |
| Color contrast ratio | 1800:1 |
| Gray Grade | 16bit |
| Display Color | 439, 804, 651, 110 |
| Refresh Frequency (Hz) | ≥600 |
| Picture display method | Intellective control technology , test-itself technology , correct technology, Synchronization Control |
| Input signal | DVI (S-VIDEO, CVBS, ,DP,HDMI,VGA, PAL/NTSC, etc.through Video procrssor converting ) |
| System operating | WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc. |
| Front/Rear IP Level | IP65 |
| Working temperature(ºC) | -20～+60 |
| Stored temperature (ºC) | -30～+80 |
| Operation humidity(RH) | 0-95% |
| Display Lifetime(hours) | 10 years or more( natural environment) 100000 hours( ideal environment) |
| Maintenance | Front & Rear |
| Working Voltage | AC110 / AC220V±10% 47～63HZ |
| Out of controlled dot | ≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the wave length are both >10% depart to the normal one) |
Competitive advantages:
1. Front and back maintenance;
2. No screw between module and cabinets;
3. Fast and easy maintenance;
4. Suitable for LED display projects that limit installation site back side space;
