IP65 LED Screen Front Maintenance , P13.3 Outdoor Easy Maintenance LED Displays
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Highlight | electronic led display,led video wall |
||
|---|---|---|---|
Product Description

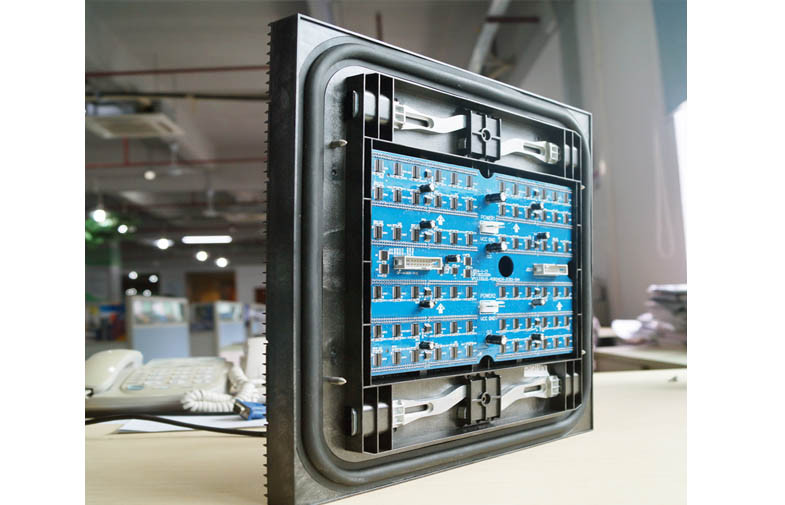

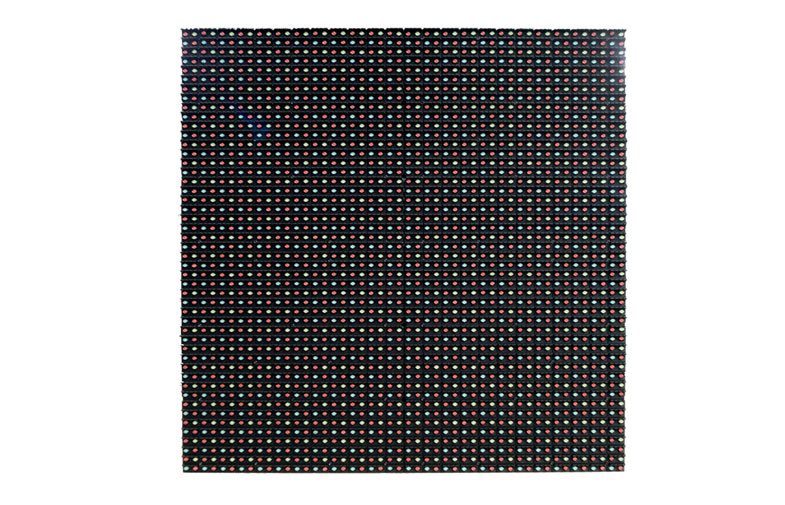

IP65 LED Screen Front Maintenance , P13.3 Outdoor Easy Maintenance LED Displays
Quick Detail:
1, Easy maintenance of front accessible;
2, P13.3 1RGB;
3, LED Source: DIP346
4, LED Module: 320mm x 320mm;
5, IP65 waterproof and dustproof;
6, High brightness at 7000cd/㎡;
Description:
1. Front maintenance LED screen is widely installed for LED billboard projects that limited back space and difficult for back or rear maintenance;
2. P13.3 LED screen is equipped high brightness Epistar LED chips at 7000cd/㎡, meanwhile outdoor LED screen brightness is adjustable through multi function card;

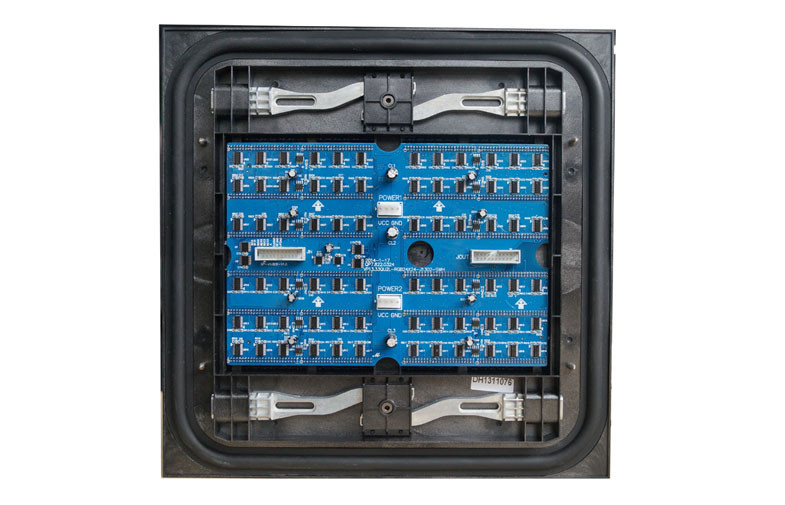

3. IP65 for outdoor LED display use: Dual maintenance LED screen is injected silicon in front of LED module, and each LED module is equipped a car rubber for waterproof;
4. P13.3 outdoor dual maintenance LED screen is of popular choose, as it got balance between P10 and P16 dual maintenance LED screens;
5. P13.3 dual maintenance LED display is of high contrast ratio at 4000:1;
6. For dual maintenance LED signs, there is no screw between LED module and LED cabinets, and this makes LED sign easier and quicker for installation and dismantling;
Applications:

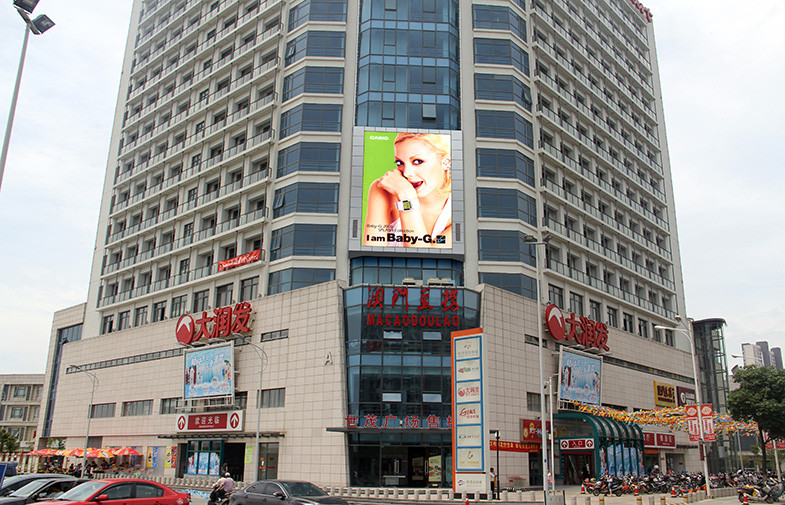

Front Maintenance LED Billboard
Front Accessible LED Signs
Front Maintenance Digital LED Sign
LED Digital Sign Front Maintenance
Electronic LED Sign Front Accessible
Front Maintenance LED Sign
Front Open LED Display
Dual Maintenance LED Screen
Front and Back Maintenance LED Display Screen
Front and Rear Maintenance LED Panel
Easy Maintenance LED Signage
Specifications :
| LED Module Parameter | |
| Pixel pitch (mm) | 16 |
| Pixel configuration | 1R1G1B |
| Encapsulation | DIP346 |
| Colors matches | 6:3:1 |
| Module resolution (pixels) | 24 x 24 |
| Module pixel | 576 |
| Module size (mm) | 320 x 320 |
| LED CABINET SPECIFICATION | |
| Cabinet size (mm) | 960 x 960 x 150 |
| Cabinet resolution (pixels) | 72 x 72 |
| Cabinet pixels (pixels) | 5184 |
| Cabinet material | Steel |
| Cabinet weight (kg) | 55 |
| LED DISPLAY SPECIFICATION | |
| Pixel density(pixel/m2) | 5627 |
| Brightness(cd/m2) | ≥7000 (adjustable) |
| Brightness adjusted | 100 grade by software or by Auto-optic induced |
| View angle | Horizontal 110°; Vertical 70° |
| Best viewing distance (m) | ≥12m |
| Communication distance(m) | <100meter by Internet Cable(without Relay; Multi mode fiber cable ＜ 500m; Single mode fiber cable ＜ 20km |
| Display work method | Static |
| LED driving method | Constant driving current |
| Color contrast ratio | 1800:1 |
| Gray Grade | 16bit |
| Display Color | 439, 804, 651, 110 |
| Refresh Frequency (Hz) | ≥600 |
| Picture display method | Intellective control technology , test-itself technology , correct technology, Synchronization Control |
| Input signal | DVI (S-VIDEO, CVBS, ,DP,HDMI,VGA, PAL/NTSC, etc.through Video procrssor converting ) |
| System operating | WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc. |
| Front/Rear IP Level | IP65 |
| Working temperature(ºC) | -20～+60 |
| Stored temperature (ºC) | -30～+80 |
| Operation humidity(RH) | 0-95% |
| Display Lifetime(hours) | 10 years or more( natural environment) 100000 hours( ideal environment) |
| Maintenance | Front & Rear |
| Working Voltage | AC110 / AC220V±10% 47～63HZ |
| Out of controlled dot | ≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the wave length are both >10% depart to the normal one) |
Competitive advantages:
1. P13.3 easy maintenance LED display is aslo known as front accessible LED signs that is developed to substitue traditional front accessible LED sign;
2. P13.3 dual maintenance LED screens is installed for large size LED billboard. As we know normal front accesible is always used for small size LED sign becuase of its front open structure;
3. Easy maintenance: P13.3 maintenance LED screens has no screws between LED module and cabinet ,which can be easier to disassemble and install,it only take a few seconds to disassemble;
4. Space saving: outdoor dual maintenance LED display,for installation site that backside space limited,it's a perfect option of this dual maintenance which allows front maintenance and not need backside space;
5. Fast and easy maintenance;
6. P13.3 dual maintenance LED screen, it not only support front side maintenance, but also back and rear side LED screen maintenance;
