Dustproof P13.3 Dual Maintenance LED Sign , Outdoor Full Color Led Display
Product Details
| High Light | electronic led display,digital signage display |
||
|---|---|---|---|
Product Description

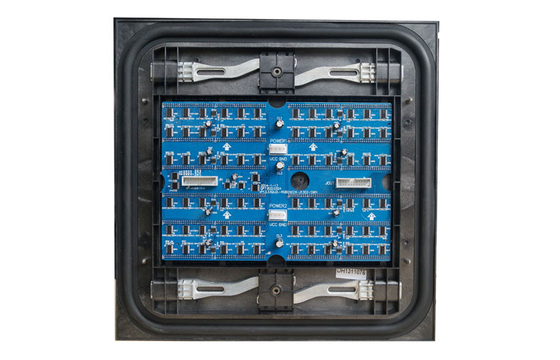

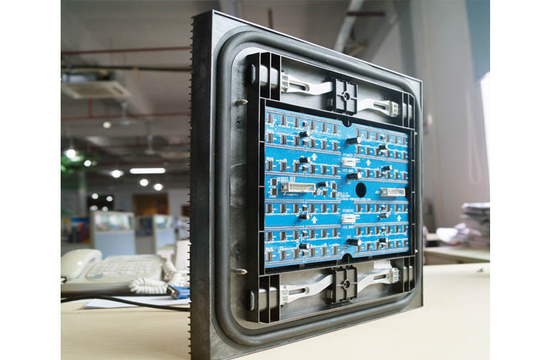

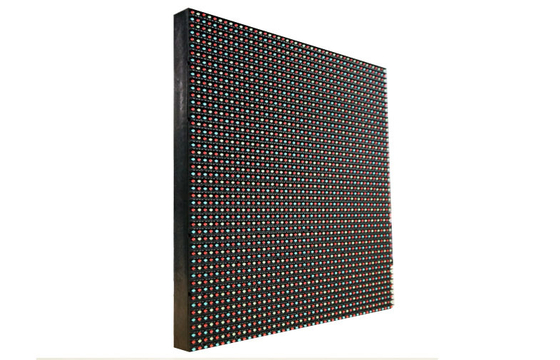

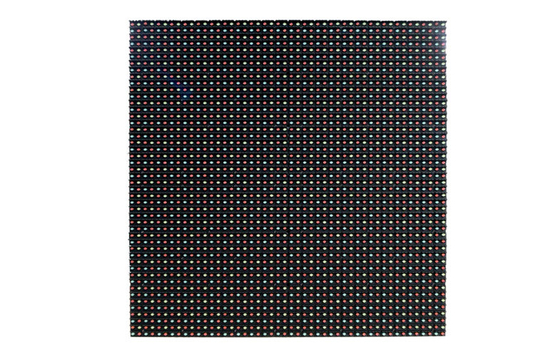

Dustproof P13.3 Dual Maintenance LED Sign , Outdoor Full Color Led Display
Quick Detail:
1, P13.3 1RGB;
2, LED Source: DIP346
3, LED Module: 320mm x 320mm;
4, IP65 waterproof and dustproof;
5, Front easy maintenance;
6, High brightness at 7000cd/㎡;
Description:
1. P13.3 outdoor dual maintenance LED display is of popular choose, as it got balance between P10 and P16 dual maintenance LED screens;
2. P13.3 dual maintenance LED screen is of high contrast ratio at 4000:1;
3. There is no screw between LED module and LED cabinets, and this makes LED sign easier and quicker for installation and dismantling;
4. Front maintenance outdoor LED sign is widely installed for installation site that limited back space;
5. P13.3 LED display is utilizing high brightness Epistar LED chips available at 7000cd/㎡;
6. Dual maintenance LED display is injected silicon in front of LED module, and each LED module is equipped a car rubber for waterproof;
Applications:
Front Maintenance LED Sign
Front Open LED Display
Dual Maintenance LED Screen
Front and Back Maintenance LED Display Screen
Front and Rear Maintenance LED Panel
Easy Maintenance LED Signage
Front Maintenance LED Billboard
Front Accessible LED Signs
Front Maintenance Digital LED Sign
LED Digital Sign Front Maintenance
Electronic LED Sign Front Accessible
Specifications :
| LED Module Parameter | |
| Pixel pitch (mm) | 16 |
| Pixel configuration | 1R1G1B |
| Encapsulation | DIP346 |
| Colors matches | 6:3:1 |
| Module resolution (pixels) | 24 x 24 |
| Module pixel | 576 |
| Module size (mm) | 320 x 320 |
| LED CABINET SPECIFICATION | |
| Cabinet size (mm) | 960 x 960 x 150 |
| Cabinet resolution (pixels) | 72 x 72 |
| Cabinet pixels (pixels) | 5184 |
| Cabinet material | Steel |
| Cabinet weight (kg) | 55 |
| LED DISPLAY SPECIFICATION | |
| Pixel density(pixel/m2) | 5627 |
| Brightness(cd/m2) | ≥7000 (adjustable) |
| Brightness adjusted | 100 grade by software or by Auto-optic induced |
| View angle | Horizontal 110°; Vertical 70° |
| Best viewing distance (m) | ≥12m |
| Communication distance(m) | <100meter by Internet Cable(without Relay; Multi mode fiber cable ＜ 500m; Single mode fiber cable ＜ 20km |
| Display work method | Static |
| LED driving method | Constant driving current |
| Color contrast ratio | 1800:1 |
| Gray Grade | 16bit |
| Display Color | 439, 804, 651, 110 |
| Refresh Frequency (Hz) | ≥600 |
| Picture display method | Intellective control technology , test-itself technology , correct technology, Synchronization Control |
| Input signal | DVI (S-VIDEO, CVBS, ,DP,HDMI,VGA, PAL/NTSC, etc.through Video procrssor converting ) |
| System operating | WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc. |
| Front/Rear IP Level | IP65 |
| Working temperature(ºC) | -20～+60 |
| Stored temperature (ºC) | -30～+80 |
| Operation humidity(RH) | 0-95% |
| Display Lifetime(hours) | 10 years or more( natural environment) 100000 hours( ideal environment) |
| Maintenance | Front & Rear |
| Working Voltage | AC110 / AC220V±10% 47～63HZ |
| Out of controlled dot | ≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the wave length are both >10% depart to the normal one) |
Competitive advantages:
1. Easy maintenance: P13.3 maintenance LED sign has no screws between LED module and cabinet ,which can be easier to disassemble and install,it only take a few seconds to disassemble;
2. Space saving: outdoor dual maintenance LED screen,for installation site that backside space limited,it's a perfect option of this dual maintenance which allows front maintenance and not need backside space;
3. For dual maintenance LED display,both front and back maintenance is available;
4. No screw between module and cabinets;
5. Fast and easy maintenance;
6. Suitable for LED display projects that limit installation site back side space;
