SMD3535 P8 Dual Maintenance LED Display Lightweight Led Screen

  • img.alt
  • img.alt
  • img.alt
  • img.alt
Place of Origin China
Brand Name YUCHIP
Certification CE,ROHS,FCC,EMC
Model Number OF-8DL
Minimum Order Quantity 1sqm
Price Negotiable
Packaging Details Flight Case,Wooden Case,Strong Carton Box
Delivery Time 15-20 Working Days
Payment Terms T/T
Supply Ability 5000㎡/Month
Product Details
High Light

led video wall

,

digital signage display
Leave a Message
Product Description

SMD3535 P8 Dual Maintenance LED Display Lightweight Led Screen​







Quick Detail:





1, Front maintenance;

2, LED chips:SMD3535;

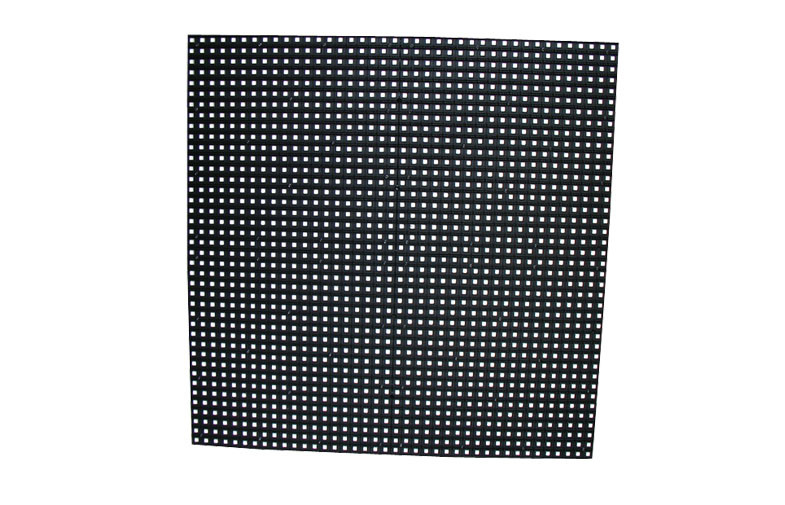

3, Module Size: 320mm x 320mm;

4, Power Supply: Meanwell;

5, MBI5020 IC, MBI5024 IC;

6, Epistar, Cree,Nichia LED chip;







Description:





1, P8 dual maintenance LED display is of high resolution at 15625 pixels/㎡;

2, P8 front maintenance LED sign is of IP65 waterproof and dustproof for outdoor enviroment;

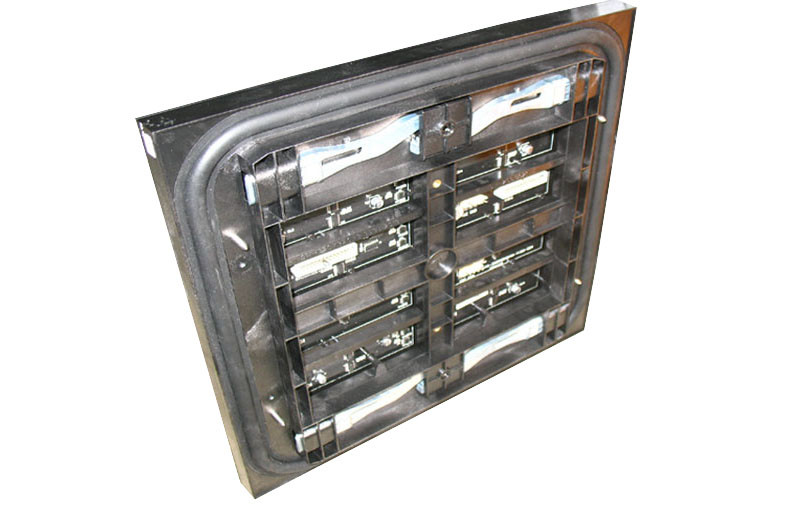

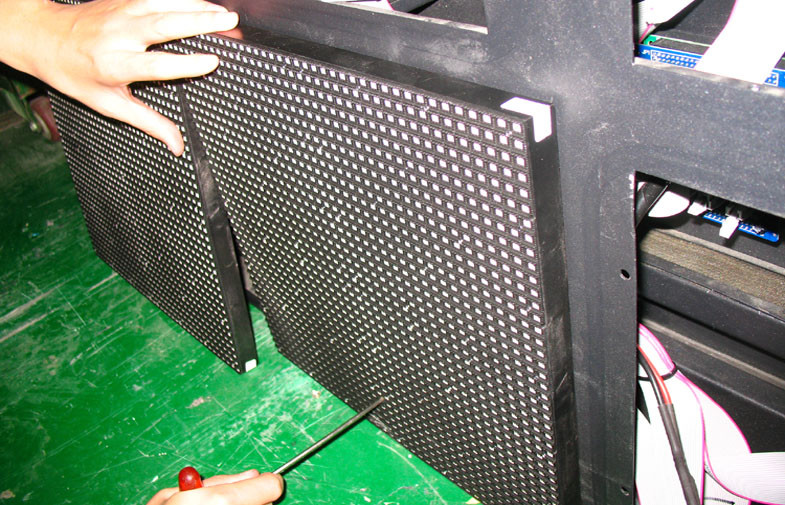

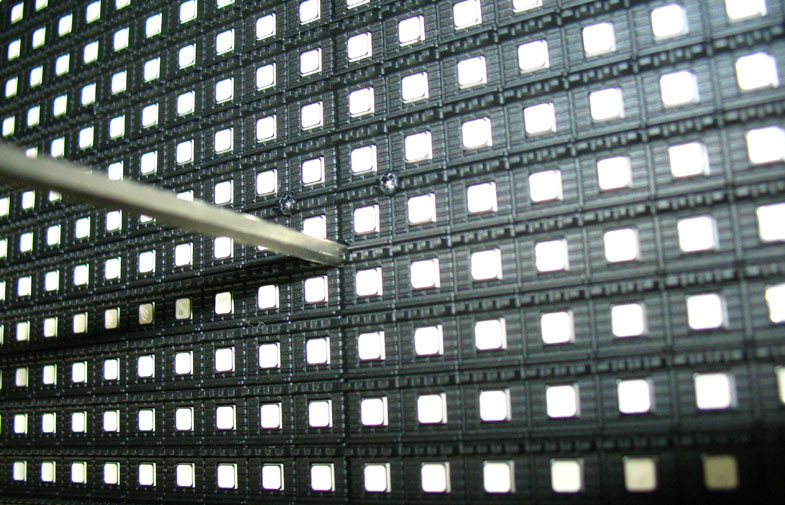

3, Dual maintenance LED display P8 is of easy maintenance:There are no screws between LED module and cabinet ,which can be easier to disassemble and install,it only take a few seconds to disassemble;

4, P8 SMD3535 dual maintenance LED display is of large viewing angle at 140 degree vertically and horizontally;

5, Outdoor P8 LED display is of high brightness up to 7000 cd/㎡, enabling LED screen a clear and vivid image and video presentation even under direct sunshine;

6, P8 dual maintenance LED screen is utilizing Epistar LED chips, MBI5020 and MBI5024 LED driver IC, meanwell power supply etc. best quality materials to insure stable high quality.











Applications:



Front Maintenance LED Sign

Front Open LED Display

Dual Maintenance LED Screen

Front and Back Maintenance LED Display Screen

Front and Rear Maintenance LED Panel

Easy Maintenance LED Signage

Front Maintenance LED Billboard

Front Accessible LED Signs

Front Maintenance Digital LED Sign

LED Digital Sign Front Maintenance

Electronic LED Sign Front Accessible









Specifications :



LED Module Parameter
Pixel pitch (mm) 8
Pixel configuration SMD3528
Encapsulation 3 in 1
Colors matches 6:3:1
Module resolution (pixels) 40 x 40
Module pixel 1600
Module size (mm) 320 x 320
LED CABINET SPECIFICATION
Cabinet size (mm) 960 x 960 x 150
Cabinet resolution (pixels) 120 x 120
Cabinet pixels (pixels) 14400
Cabinet material Steel
Cabinet weight (kg) 55
LED DISPLAY SPECIFICATION
Pixel density(pixel/m2) 15625
Brightness(cd/m2) ≥7000 (adjustable)
Brightness adjusted 100 grade by software or by Auto-optic induced
View angle Horizontal 110°; Vertical 70°
Best viewing distance (m) ≥6m
Communication distance(m) <100meter by Internet Cable(without Relay; Multi mode fiber cable ＜ 500m; Single mode
fiber cable ＜ 20km
Display work method 1/4 Scan
LED driving method Constant driving current
Color contrast ratio 1800:1
Gray Grade 16bit
Display Color 439, 804, 651, 110
Refresh Frequency (Hz) ≥600
Picture display method Intellective control technology , test-itself technology , correct technology, Synchronization
Control
Input signal DVI (S-VIDEO, CVBS, ,DP,HDMI,VGA, PAL/NTSC, etc.through Video procrssor converting )
System operating WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc.
Front/Rear IP Level IP65
Working temperature(ºC) -20～+60
Stored temperature (ºC) -30～+80
Operation humidity(RH) 0-95%
Display Lifetime(hours) 10 years or more( natural environment) 100000 hours( ideal environment)
Maintenance Front & Rear
Working Voltage AC110 / AC220V±10% 47～63HZ
Out of controlled dot ≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the wave
length are both >10% depart to the normal one)








Competitive advantages:



1. Front and back maintenance;

2. No screw between module and cabinets;

3. Fast and easy maintenance;

4. Suitable for LED display projects that limit installation site back side space;

5. Space saving:For installation site that backside space limited,it's a perfect option of this dual maintenance which allows front maintenance and not need backside space;

6. Cost saving: dual maintenance LED display not require large space in LED screen backside, so it save cost in steel structure and installation.

SMD3535 P8 Dual Maintenance LED Display Lightweight Led Screen 0SMD3535 P8 Dual Maintenance LED Display Lightweight Led Screen 1SMD3535 P8 Dual Maintenance LED Display Lightweight Led Screen 2
