P20 DIP346 Build Led Display Screens waterproof For Baseball Stadium
Product Details
| High Light | electronic led display,digital signage display |
||
|---|---|---|---|
Product Description
P20 DIP346 Build Led Display Screens waterproof For Baseball Stadium
Quick Detail:
1, IP65 waterproof for outdoor;
2, Epistar LED, DIP346

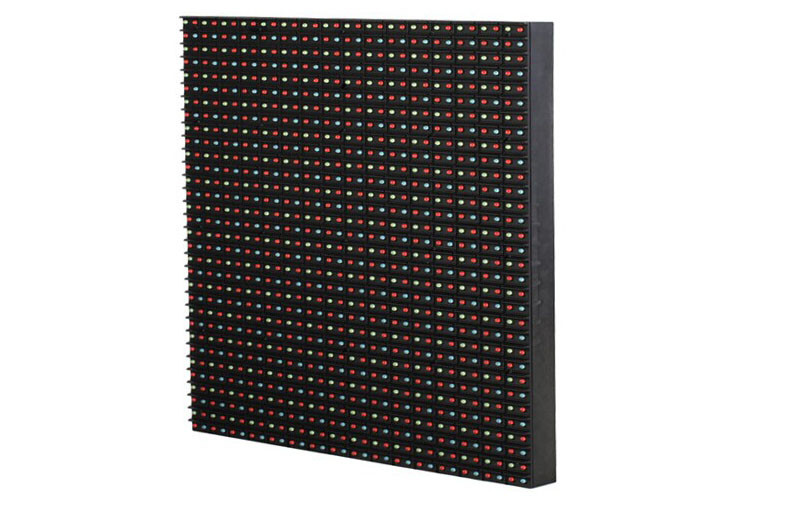

3, LED Module: 320mm x 320mm;
4, High brightness at 7000cd/㎡;

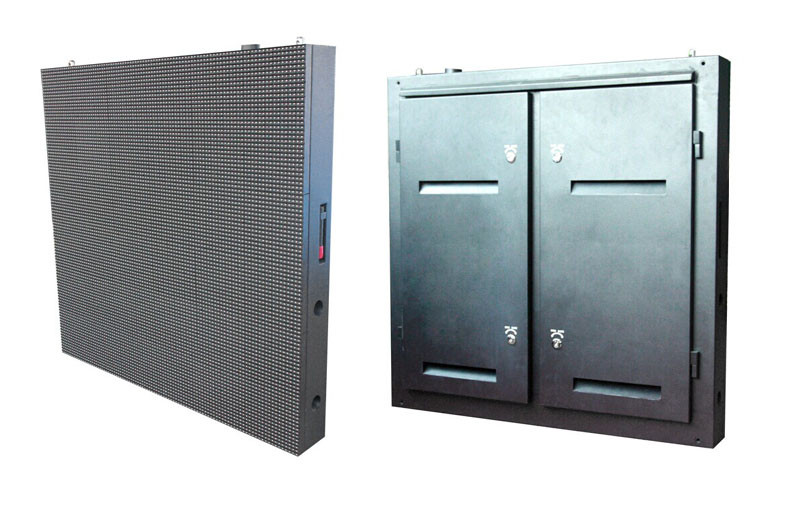

5, LED cabinet: 1280mm x 960mm x 150mm.
6, Front maintenance available;
Description:
1. Dual maintenance LED display has no screw between LED modules and LED panels, and this makes LED signs easier and quicker for installation and dismantling;
2. Front maintenance electronic outdoor LED signs is widely installed for installation site that limited back space;
3. P20 dual maintenance LED wall is cost effective and suitable for large size LED billboard;
4. P20 outdoor LED screen is utilizing high brightness Epistar LED chips available at 7000cd/㎡;

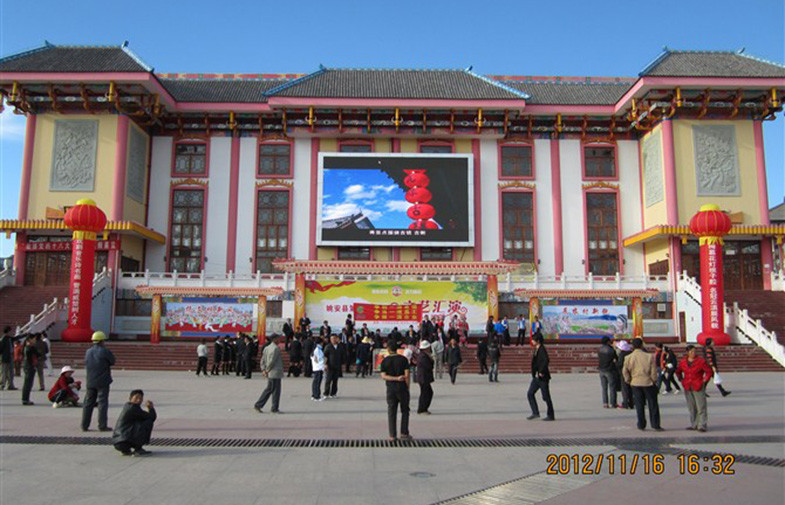

5. P20 dual maintenance LED screens is widely installed as mounted on building LED wall which makes it more convenient maintenance for LED wall.

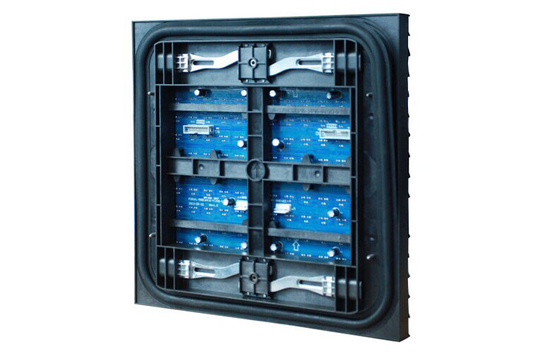

6. Dual maintenance LED dispaly screen is injected silicon in front of LED module, and each LED module is equipped a car rubber for waterproof;
Applications:
Baseball Stadium LED Display Screens
Sporting Stadium LED Video Display
Sports Perimeter LED Screen
Sports Club LED Display
LED Score Boards
LED Score Display
LED Digital Scoreboard
Stadium LED Display
Perimeter LED Screen
Football Stadium LED Screen
Football Perimeter LED Display
Basketball Stadium LED Displays
Soccer LED Display
Specifications :
| LED Module Parameter | |
| Pixel pitch (mm) | 20 |
| Pixel configuration | 1R1G1B |
| Encapsulation | DIP346 |
| Colors matches | 6:3:1 |
| Module resolution (pixels) | 16 x 16 |
| Module pixel | 256 |
| Module size (mm) | 320 x 320 |
| LED CABINET SPECIFICATION | |
| Cabinet size (mm) | 960 x 960 x 150 |
| Cabinet resolution (pixels) | 48 x 48 |
| Cabinet pixels (pixels) | 2304 |
| Cabinet material | Steel |
| Cabinet weight (kg) | 50 |
| LED DISPLAY SPECIFICATION | |
| Pixel density(pixel/m2) | 2500 |
| Brightness(cd/m2) | ≥8000 (adjustable) |
| Brightness adjusted | 100 grade by software or by Auto-optic induced |
| View angle | Horizontal 110°; Vertical 70° |
| Best viewing distance (m) | ≥18m |
| Communication distance(m) | <100meter by Internet Cable(without Relay; Multi mode fiber cable ＜ 500m; Single mode fiber cable ＜ 20km |
| Display work method | Static |
| LED driving method | Constant driving current |
| Color contrast ratio | 1800:1 |
| Gray Grade | 16bit |
| Display Color | 439, 804, 651, 110 |
| Refresh Frequency (Hz) | ≥1000 |
| Picture display method | Intellective control technology , test-itself technology , correct technology, Synchronization Control |
| Input signal | DVI (S-VIDEO, CVBS, ,DP,HDMI,VGA, PAL/NTSC, etc.through Video processor converting ) |
| System operating | WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc. |
| Front/Rear IP Level | IP65 |
| Working temperature(ºC) | -20～+60 |
| Stored temperature (ºC) | -30～+80 |
| Operation humidity(RH) | 0-95% |
| Display Lifetime(hours) | 10 years or more( natural environment) 100000 hours( ideal environment) |
| Maintenance | Rear side |
| Working Voltage | AC110 / AC220V±10% 47～63HZ |
| Power consumption | Max: 850W/㎡ ; Ave:350W/㎡ |
| Out of controlled dot | ≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the wave length are both >10% depart to the normal one) |
Competitive advantages:
1. P20 dual maintenance LED screen is suitable for LED creen projects that limit installation site back side space;
2. Easy maintenance: P20 maintenance LED screen has no screws between LED module and cabinet ,which can be easier to disassemble and install,it only take a few seconds to disassemble;
3. Convenient installation: As dual maintenance LED display not needs steel structure embeded into the wall;
4. Cost saving: Dual maintenance LED screen not need the quite heavy and huge complicated steel structure to mount LED billboard;
5. For dual maintenance LED video board,both front and back maintenance is available;
6. Space saving: outdoor dual maintenance LED screen,for installation site that backside space limited,it's a perfect option of this dual maintenance which allows front maintenance and not need backside space;
