Full Color Slim Thin Transparent LED Display Curtain LED Video Screen

  • img.alt
  • img.alt
  • img.alt
Place of Origin China
Brand Name YUCHIP
Certification CE,ROHS,FCC,EMC
Model Number P10
Packaging Details Flight Case,Wooden Case,Strong Carton Box
Product Details
High Light

led curtain screen

,

led flexible display
Leave a Message
Product Description

Transparent LED Display Introduction:

YUCHIP transparent LED Display is designed for concert background display, curtain wall building, advertising screen, nightclubs, dance halls and other application areas indoor and outdoor applications developed by GM's display. Synchronous control system processing, accept DVI, VGA, HDMI, S- video, composite, YUV input signals, etc., are free to play video, graphics, images, and Mao's program, and in real-time, synchronous, clear information dissemination play various kinds of information.

LED transparent screen unit box mainly has the following main features:
1, LED lamp design, making use of the LED display in a more uniform color mixing, wider viewing angle;
2, transparent LED Display through the body of the screen to adjust the color and brightness of the synchronization, enable Screen presents lifelike color performance;
3, high intensity, high refresh design; gradation> 4096, refresh rate> 800Hz;
4, compatible with a variety of input sources, such as AV, S-Video, DVI, VGA, YPBPr, HDMI, SDI, DP and the like;
5, air box specialty packaging protection for unit cabinet played a good protection;
6, lightweight, ultra-thin screen body design specifications;
7, using suspension installation structure, so that the assembly process easier and faster;
8, transparent LED Display with fast lock installation design, can be easily and quickly removed, loading operations;
9, the power consumption is small;
10, transparent LED Display are mainly used in concert to do the background, curtain wall building, advertising screen, nightclubs and dance halls and other application areas.

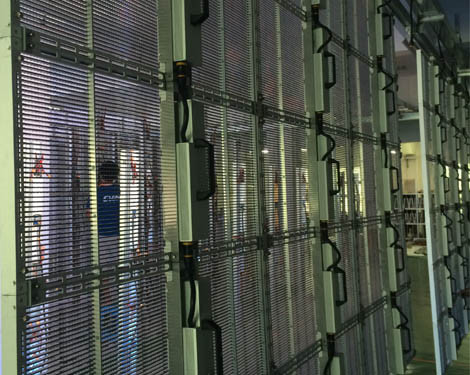

Full Color Slim Thin Transparent LED Display Curtain LED Video Screen 0

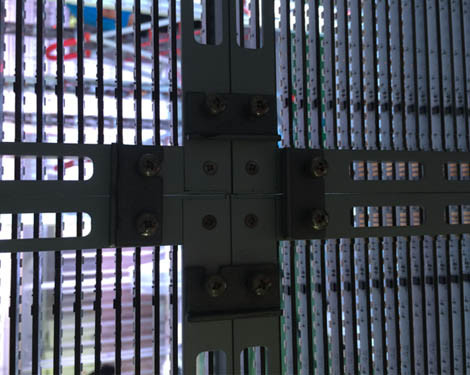

Full Color Slim Thin Transparent LED Display Curtain LED Video Screen 1

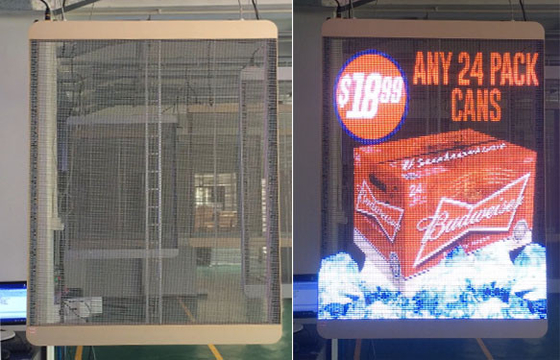

Full Color Slim Thin Transparent LED Display Curtain LED Video Screen 2





Model P5 P8 P10
Pixel Pitch(mm) 5 x 8 7.5 x8 10 x10
LED Model SMD3528 SMD3528 SMD3528
Brightness(nit) 6000 6000 6000
Transparency 68% 68% 75%
Module size(mm) 960 X 400 960 X 400 960 X 400
Module resolution 192 X 50 128 X 50 96 X 40
Resolution(dot/㎡) 25000 16666 10000
Max. Power(W/㎡) 800 800 800
Avg. Power(W/㎡) 240 240 240
Ingress Protection IP20 IP20 IP20
Refresh rate(Hz) 1000~1500 1000~1500 1000~1500
Weight(kg/㎡) 12 12 12
Working Temp. -10~40℃ -10~40℃ -10~40℃

Transparent LED display Applications:

Transparent LED display is an perfect solution for projects that limit installation site back-side space, projects that needs lighter weight bearing. Curtain LED screen is suitable for outdoor and indoor LED display projects.
Huge LED Display
Large Size LED Billboard
Big Street LED Billboards
Wall Mounted LED Screen
Shopping Mall LED Display
Super Market LED Display Screen
Outdoor Curtain LED Display
Outdoor Curtain LED Screen
Outdoor Waterproof Curtain LED Display
Lighter Weight Roof Building Curtain LED Display
