WINDOWS 98 Waterproof LED Display Boards Full Color LED Screens P20
Product Details
| High Light | outdoor full color led display,stage background led screen |
||
|---|---|---|---|
Product Description
WINDOWS 98 Waterproof LED Display Boards Full Color LED Screens P20
Quick Detail:
1, 1RGB DIP 346
2, LED Chips: Epistar
3. Module: 320mm x 320mm;
4. Cabinet: 960mm x 960mm x 150mm;
5. IP65, waterproof.
6. Internal signal and power connection.
Description:
1. P20 full color outdoor LED display automatic brightness adjustment to present a comfortable display effect in day and night and also save energy;
2. Outdoor full color LED display P20 is cost effective,expecially suitable for large size LED billboards;
3. DIP LED technology ensure high quality image and video presentation for large size LED billboards advertising use;
4. Full color LED screens outdoor high brightness up to 8000cd/㎡ to deliver a clear image and video even under direct sunshine;
5. LED digital sign remote control help to realize one computer control numbers LED screen timely;
6. Electronic LED billboards eye catching active advertising effect deliver to more audience and gain more revenues;
Applications:

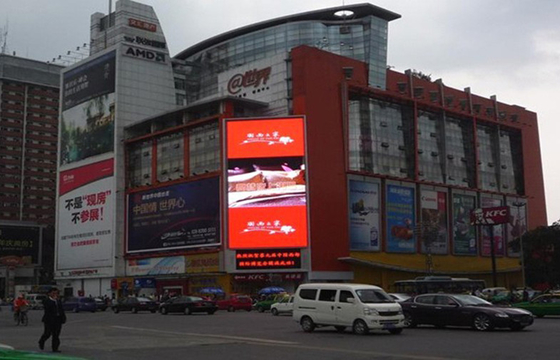

On roof of building Full Color LED Display
Mounted on buildingFull Color LED Display
Put on steel pole Full Color LED Display
Cross bridge information Full Color LED Display
Shopping Mall Full Color LED Display
Commercial Advertising Full Color LED Display
Church Full Color LED Display
Road Show Full Color LED Display
High Speed Way Full Color LED Display
Specifications :
| LED Module Parameter | |
| Pixel pitch (mm) | 20 |
| Pixel configuration | 1R1G1B |
| Encapsulation | DIP346 |
| Colors matches | 6:3:1 |
| Module resolution (pixels) | 16 x 16 |
| Module pixel | 256 |
| Module size (mm) | 320 x 320 |
| LED CABINET SPECIFICATION | |
| Cabinet size (mm) | 960 x 960 x 150 |
| Cabinet resolution (pixels) | 48 x 48 |
| Cabinet pixels (pixels) | 2304 |
| Cabinet material | Steel |
| Cabinet weight (kg) | 50 |
| LED DISPLAY SPECIFICATION | |
| Pixel density(pixel/m2) | 2500 |
| Brightness(cd/m2) | ≥8000 (adjustable) |
| Brightness adjusted | 100 grade by software or by Auto-optic induced |
| View angle | Horizontal 110°; Vertical 70° |
| Best viewing distance (m) | ≥18m |
| Communication distance(m) | <100meter by Internet Cable(without Relay; Multi mode fiber cable ＜ 500m; Single mode fiber cable ＜ 20km |
| Display work method | 1/4 Scan |
| LED driving method | Constant driving current |
| Color contrast ratio | 1800:1 |
| Gray Grade | 16bit |
| Display Color | 439, 804, 651, 110 |
| Refresh Frequency (Hz) | ≥1000 |
| Picture display method | Intellective control technology , test-itself technology , correct technology, Synchronization Control |
| Input signal | DVI (S-VIDEO, CVBS, ,DP,HDMI,VGA, PAL/NTSC, etc.through Video processor converting ) |
| System operating | WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc. |
| Front/Rear IP Level | IP65 |
| Working temperature(ºC) | -20～+60 |
| Stored temperature (ºC) | -30～+80 |
| Operation humidity(RH) | 0-95% |
| Display Lifetime(hours) | 10 years or more( natural environment) 100000 hours( ideal environment) |
| Maintenance | Rear side |
| Working Voltage | AC110 / AC220V±10% 47～63HZ |
| Power consumption | Max: 850W/㎡ ; Ave:350W/㎡ |
| Out of controlled dot | ≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the wave length are both >10% depart to the normal one) |
Competitive advantages:
1. Outdoor full color P20 LED billboards is being widely choose for large size outdoor LED billboards projects;
2. Full color outdoor LED walls standard LED cabinet of IP65,waterproof and dustproof;
3. Outdoor LED screen full color high brightness up to 8000cd/㎡,and special requirement LED screen projects can reach 10,000nits;
4, The full color LED displays present clear vivid image and video even under direct sunshine;
5. Outdoor LED sign boards is waterproof and dust proof for outdoor environment use;
6, P20 outdoor full color LED panels is cost effective for big size LED media display.
