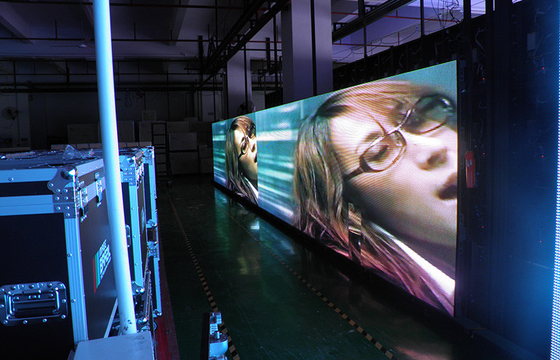

Automatic Brightness Adjustment Full Color Led Display LED Walls Display DIP246 P8
Product Details
| High Light | full color led signs outdoor,outdoor full color led display |
||
|---|---|---|---|
Product Description
Automatic Brightness Adjustment Full Color Led Display LED Walls Display DIP246 P8
Quick Detail:
1. Automatic brightness adjustment;
2. DIP246 LED;
3. High brightness up to 8000cd/㎡ in day time;
4. Steel and Aluminum LED cabinet;
5. Both rental and fixed installation method;
6. Silicon injection LED cabinet of IP65 waterproof for outdoor LED screen;
Description:
1. P8 outdoor LED screens high brightnes to deliver a clear image and video even under direct sunshine;
2. DIP246 P8 Full Color LED Video Walls is of high resolution at 15625pixels/㎡, mostly used as high resolution fixed installation outdoor LED screens;
3. High brightnes up to 8000cd/㎡ to deliver a clear and vivid image even under direct sunshine;
4. Linsn multi function LED card support brightness automatic adjustment for day and night use;
5. High quality image and video presentation for large size LED billboards advertising use;
6. DIP246 P8 Full Color LED Walls high contrast ratio at 4000:1 to display true and natural color of image and video;
Applications:
On roof of building LED Billboard
Mounted on building LED Billboard
Put on steel pole LED Billboard
Cross bridge information LED Billboard
Shopping Mall LED Billboard
Commercial Advertising LED Billboard
Church LED Billboard
Road Show LED Billboards
High Speed Way LED Advertising Billboard
Specifications :
| LED Module Parameter | |
| Pixel pitch (mm) | 8 |
| Pixel configuration | 1R1G1B |
| Encapsulation | DIP246 |
| Colors matches | 6:3:1 |
| Module resolution (pixels) | 40 x 40 |
| Module pixel | 1600 |
| Module size (mm) | 320 x 320 |

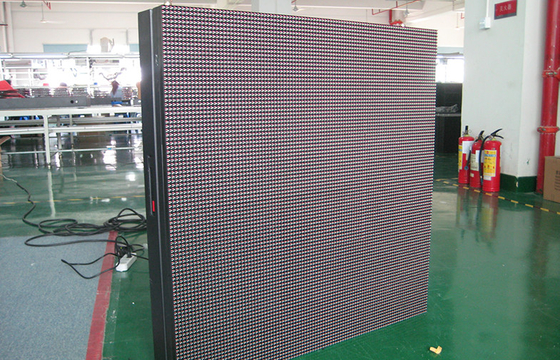

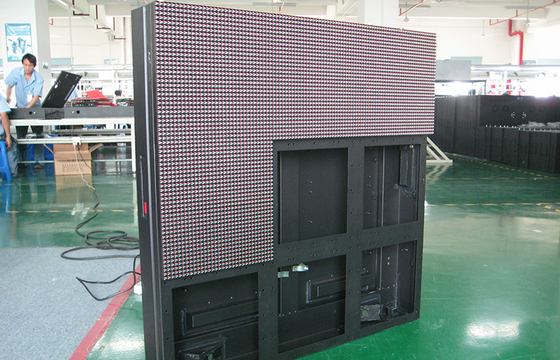

| LED CABINET SPECIFICATION | |
| Cabinet size (mm) | 960 x 960 x 150 |
| Cabinet resolution (pixels) | 120 x 120 |
| Cabinet pixels (pixels) | 14400 |
| Cabinet material | Steel |
| Cabinet weight (kg) | 50 |
| LED DISPLAY SPECIFICATION | |
| Pixel density(pixel/m2) | 15625 |
| Brightness(cd/m2) | ≥8000 (adjustable) |
| Brightness adjusted | 100 grade by software or by Auto-optic induced |
| View angle | Horizontal 110°; Vertical 70° |
| Best viewing distance (m) | ≥7m |
| Communication distance(m) | <100meter by Internet Cable(without Relay; Multi mode fiber cable ＜ 500m; Single mode fiber cable ＜ 20km |
| Display work method | 1/4 Scan |
| LED driving method | Constant driving current |
| Color contrast ratio | 1800:1 |
| Gray Grade | 16bit |
| Display Color | 439, 804, 651, 110 |
| Refresh Frequency (Hz) | ≥1000 |
| Picture display method | Intellective control technology , test-itself technology , correct technology, Synchronization Control |
| Input signal | DVI (S-VIDEO, CVBS, ,DP,HDMI,VGA, PAL/NTSC, etc.through Video processor converting ) |
| System operating | WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc. |
| Front/Rear IP Level | IP65 |
| Working temperature(ºC) | -20～+60 |
| Stored temperature (ºC) | -30～+80 |
| Operation humidity(RH) | 0-95% |
| Display Lifetime(hours) | 10 years or more( natural environment) 100000 hours( ideal environment) |

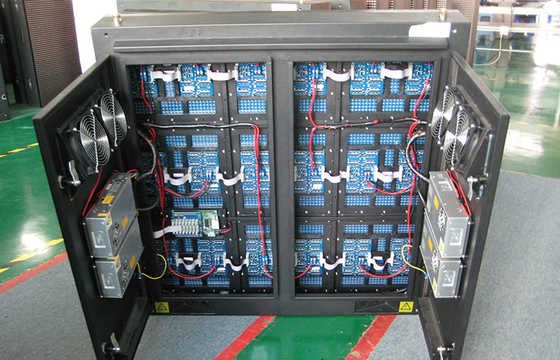

| Maintenance | Rear side |
| Working Voltage | AC110 / AC220V±10% 47～63HZ |
| Power consumption | Max: 900W/㎡ ; Ave:400W/㎡ |
| Out of controlled dot | ≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the wave length are both >10% depart to the normal one) |
Competitive advantages:
1. P8 LED Screens communication distance support less than 100 meters by Lan, under 500 meters by multi mode fiber optic and lower than 20km by single mode fiber optic.
2, P8 DIP246 outdoor LED billboards is of high resolution for eye catching active advertising effect deliver to more audience and gain more revenues;
3. P8 full color outdoor LED screens is widely used as truck LED display and LED screen trailer;
4. Outdoor LED video screens is utilizing standard LED cabinet of IP65,waterproof and dustproof;
5. High brightness up to 8000cd/㎡,and special requirement LED screen projects can reach 10,000nits;
6. Outdoor P8 LED displays best viewing distance is above 6 meters.
