Outdoor Waterproof Full Color Curved LED display , P20 1RGB LED Billboards

  • img.alt
  • img.alt
  • img.alt
  • img.alt
Place of Origin China
Brand Name YUCHIP
Certification CE,ROHS,FCC,EMC
Model Number OF-20D
Minimum Order Quantity 1sqm
Price Negotiable
Packaging Details Flight Case,Wooden Case,Strong Carton Box
Delivery Time 15-20 Working Days
Payment Terms T/T
Supply Ability 5000㎡/Month
Product Details
High Light

full color led signs outdoor

,

outdoor full color led display
Leave a Message
Product Description

Outdoor Waterproof Full Color Curved LED display , P20 1RGB LED Billboards​







Quick Detail:





1, Curve LED cabinet;

2, 1RGB DIP 346

3, LED Chips: Epistar

4. Module: 320mm x 320mm;

5. Cabinet: 960mm x 960mm x 150mm;

6. IP65 waterproof for outdoor environment.





Description:

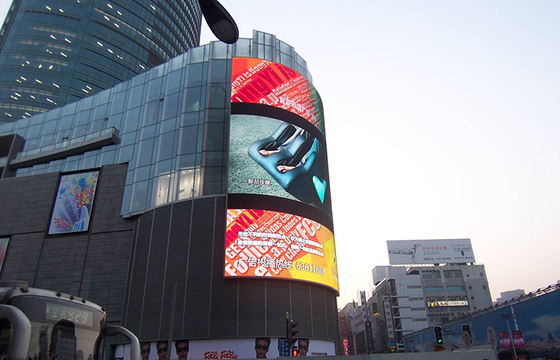

1. Curve LED displays is mainly installed on building with corner / angle to ensure advertising LED screens reach more audience in different direction;

2. P20 full color outdoor LED display automatic brightness adjustment to present a comfortable display effect in day and night and also save energy;

3. Outdoor full color LED display P20 is cost effective,expecially suitable for large size LED billboards;
4. P20 LED screen is utilizing DIP LED technology ensure high quality image and video presentation for large size LED billboards advertising use;
5. LED digital sign remote control help to realize one computer control numbers LED screen timely;
6. Electronic LED billboards eye catching active advertising effect deliver to more audience and gain more revenues;









Applications:



On roof of building Full Color LED Display

Mounted on buildingFull Color LED Display

Put on steel pole Full Color LED Display

Cross bridge information Full Color LED Display

Shopping Mall Full Color LED Display
Commercial Advertising Full Color LED Display
Church Full Color LED Display
Road Show Full Color LED Display
High Speed Way Full Color LED Display





Specifications :

LED Module Parameter
Pixel pitch (mm) 20
Pixel configuration 1R1G1B
Encapsulation DIP346
Colors matches 6:3:1
Module resolution (pixels) 16 x 16
Module pixel 256
Module size (mm) 320 x 320
LED CABINET SPECIFICATION
Cabinet size (mm) 960 x 960 x 150
Cabinet resolution (pixels) 48 x 48
Cabinet pixels (pixels) 2304
Cabinet material Steel
Cabinet weight (kg) 50
LED DISPLAY SPECIFICATION
Pixel density(pixel/m2) 2500
Brightness(cd/m2) ≥8000 (adjustable)
Brightness adjusted 100 grade by software or by Auto-optic induced
View angle Horizontal 110°; Vertical 70°
Best viewing distance (m) ≥18m
Communication distance(m) <100meter by Internet Cable(without Relay; Multi mode fiber cable ＜ 500m; Single mode
fiber cable ＜ 20km
Display work method 1/4 Scan
LED driving method Constant driving current
Color contrast ratio 1800:1
Gray Grade 16bit
Display Color 439, 804, 651, 110
Refresh Frequency (Hz) ≥1000
Picture display method Intellective control technology , test-itself technology , correct technology, Synchronization
Control
Input signal DVI (S-VIDEO, CVBS, ,DP,HDMI,VGA, PAL/NTSC, etc.through Video processor converting )
System operating WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc.
Front/Rear IP Level IP65
Working temperature(ºC) -20～+60
Stored temperature (ºC) -30～+80
Operation humidity(RH) 0-95%
Display Lifetime(hours) 10 years or more( natural environment) 100000 hours( ideal environment)
Maintenance Rear side
Working Voltage AC110 / AC220V±10% 47～63HZ
Power consumption Max: 850W/㎡ ; Ave:350W/㎡
Out of controlled dot ≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the wave
length are both >10% depart to the normal one)











Competitive advantages:



1. LED screens with curve enable LED display advertising reach more audience and bring more revenues;

2. Curve LED displays not only make advertising revenue, it also beauty the building, make the area more shining;

3. Full color outdoor LED walls standard LED cabinet of IP65,waterproof and dustproof;

4, The full color LED displays present clear vivid image and video even under direct sunshine;

5, P20 outdoor full color LED panels is cost effective for big size LED media display;

6, Through remote control, people could operate LED video displays advertising in a far distance over 20 km, or even in different cities.

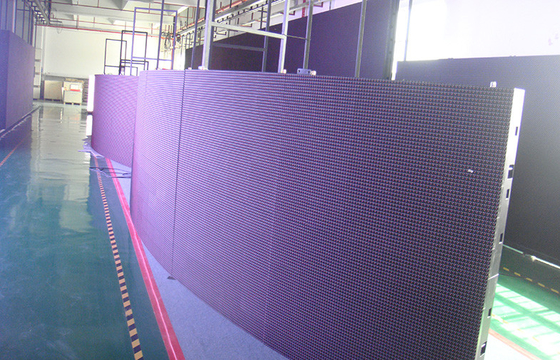

Outdoor Waterproof Full Color Curved LED display , P20 1RGB LED Billboards 0

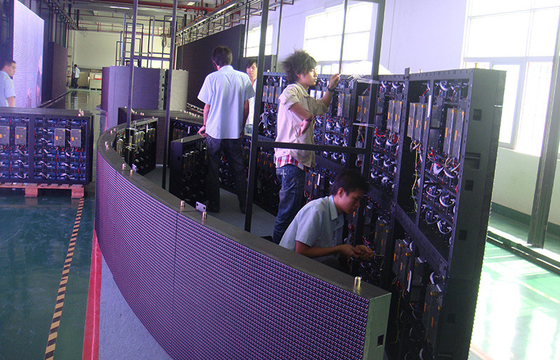

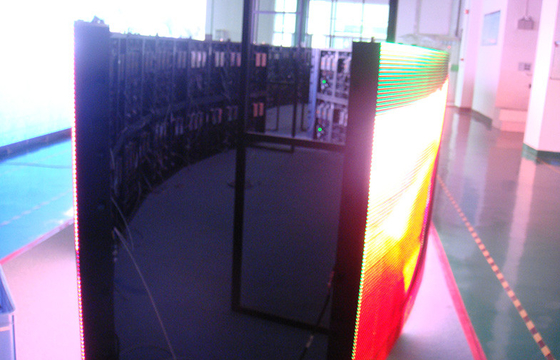

Outdoor Waterproof Full Color Curved LED display , P20 1RGB LED Billboards 1Outdoor Waterproof Full Color Curved LED display , P20 1RGB LED Billboards 2Outdoor Waterproof Full Color Curved LED display , P20 1RGB LED Billboards 3
