P16 Stadium Sporting Full Color Led Display Billboards , LED Digital Sign 2RGB

  • img.alt
  • img.alt
  • img.alt
  • img.alt
Place of Origin China
Brand Name YUCHIP
Certification CE,ROHS,FCC,EMC
Model Number OF-16D
Minimum Order Quantity 1sqm
Price Negotiable
Packaging Details Flight Case,Wooden Case,Strong Carton Box
Delivery Time 15-20 Working Days
Payment Terms T/T
Supply Ability 5000㎡/Month
Product Details
High Light

outdoor full color led display

,

stage background led screen
Leave a Message
Product Description

P16 Stadium Sporting Full Color Led Display Billboards ,  LED Digital Sign 2RGB​





Quick Detail:





1, 3906pixels/㎡;

2, DIP346 2RGB;

3. Epistar LED chips;

4. Module: 320mm x 320mm;

5. High contrast ratio at 4000:1;

6, IP65, waterproof;







Description:





1. Outdoor Full Color LED Signs P16 high brightness up to 8000cd/㎡,and special requirement LED screen projects can reach 10,000nits;

2. P16 Outdoor Full Color LED Signs is being widely choose for large size outdoor LED billboards projects;

3, P16 LED billboards present clear vivid image and video even under direct sunshine;

4, Outdoor full color LED display is utilizing control software like Linsn, Novastar, DBstar, ZQEC etc.

5, P16 2RGB LED displays outdoor is using vertual pixel which is 4 times higher resolution.

6. P16 DIP Lamp Outdoor LED Screens is utilizing standard LED cabinet of IP65,waterproof and dustproof;







Applications:



On roof of building Full Color LED Display

Mounted on buildingFull Color LED Display

Put on steel pole Full Color LED Display

Cross bridge information Full Color LED Display

Shopping Mall Full Color LED Display
Commercial Advertising Full Color LED Display
Church Full Color LED Display
Road Show Full Color LED Display
High Speed Way Full Color LED Display







Specifications :

LED Module Parameter
Pixel pitch (mm) 16
Pixel configuration 1R1G1B
Encapsulation DIP346
Colors matches 6:3:1
Module resolution (pixels) 20 x 20
Module pixel 400
Module size (mm) 320 x 320
LED CABINET SPECIFICATION
Cabinet size (mm) 960 x 960 x 150
Cabinet resolution (pixels) 60 x 60
Cabinet pixels (pixels) 3600
Cabinet material Steel
Cabinet weight (kg) 50
LED DISPLAY SPECIFICATION
Pixel density(pixel/m2) 3906
Brightness(cd/m2) ≥8000 (adjustable)
Brightness adjusted 100 grade by software or by Auto-optic induced
View angle Horizontal 110°; Vertical 70°
Best viewing distance (m) ≥14m
Communication distance(m) <100meter by Internet Cable(without Relay; Multi mode fiber cable ＜ 500m; Single mode
fiber cable ＜ 20km
Display work method Static
LED driving method Constant driving current
Color contrast ratio 1800:1
Gray Grade 16bit
Display Color 439, 804, 651, 110
Refresh Frequency (Hz) ≥1000
Picture display method Intellective control technology , test-itself technology , correct technology, Synchronization
Control
Input signal DVI (S-VIDEO, CVBS, ,DP,HDMI,VGA, PAL/NTSC, etc.through Video processor converting )
System operating WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc.
Front/Rear IP Level IP65
Working temperature(ºC) -20～+60
Stored temperature (ºC) -30～+80
Operation humidity(RH) 0-95%
Display Lifetime(hours) 10 years or more( natural environment) 100000 hours( ideal environment)
Maintenance Rear side
Working Voltage AC110 / AC220V±10% 47～63HZ
Power consumption Max: 850W/㎡ ; Ave:350W/㎡
Out of controlled dot ≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the wave
length are both >10% depart to the normal one)











Competitive advantages:





1, P16 DIP Lamp Outdoor LED Screens seamless connection: 320mm x 320mm large size LED module makes LED display seamless connection in one cabinet;

2, P16 DIP Lamp Outdoor LED Screens is utilizing large Epistar chip guaranteeing up to 10000 nits brightness to deliver vivid image and video even under direct sunshine;

3, Outdoor fixed installation LED displays is using best meanwell power supply equipped;

4, YUCHIP LED 5000㎡ per month production capacity to support timely delivery of advertising LED screen order;

5, High contrast ratio at 4000:1 to insure P16 outdoor LED billboards display the true and pure color;

6, P16 outdoor LED displays better waterproof, PCB is painted few layers coating for dust-proof,moisture proof and anti-corrosion.

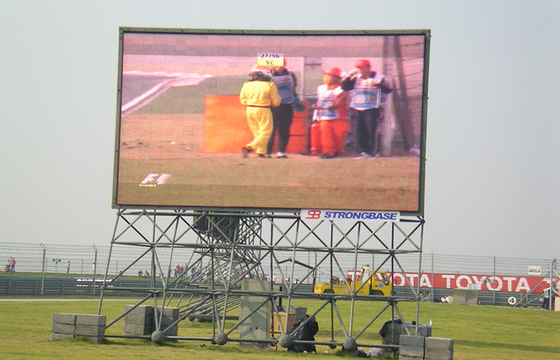

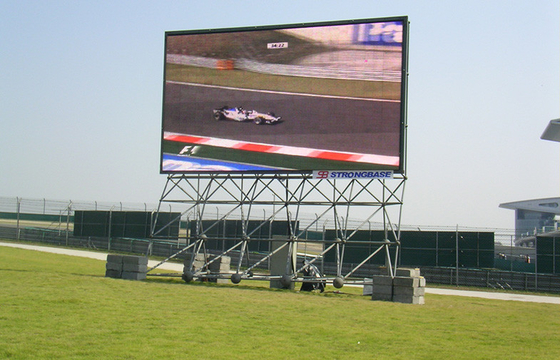

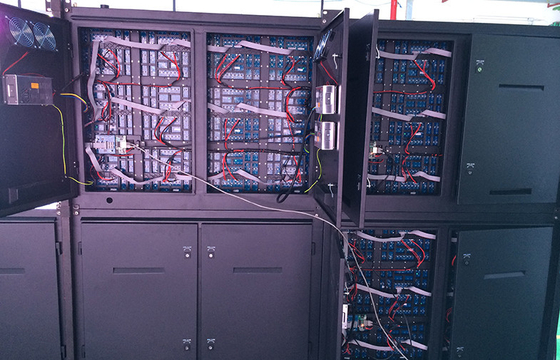

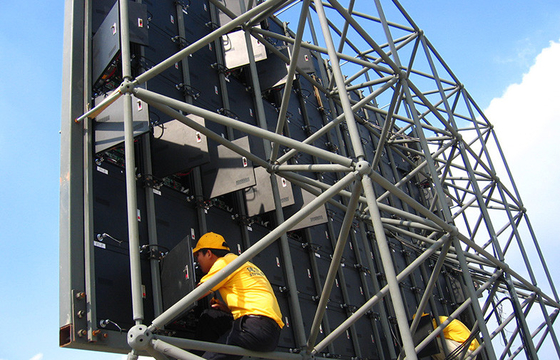

P16 Stadium Sporting Full Color Led Display Billboards , LED Digital Sign 2RGB 0P16 Stadium Sporting Full Color Led Display Billboards , LED Digital Sign 2RGB 1P16 Stadium Sporting Full Color Led Display Billboards , LED Digital Sign 2RGB 2P16 Stadium Sporting Full Color Led Display Billboards , LED Digital Sign 2RGB 3
