Advertising P16 Curtain LED Display Outdoor Commercial Led Displays
Product Details
| High Light | outdoor led curtain display,led flexible display |
||
|---|---|---|---|
Product Description
Advertising P16 Curtain LED Display Outdoor Commercial Led Displays
Quick Detail:
1, P16 1RGB;

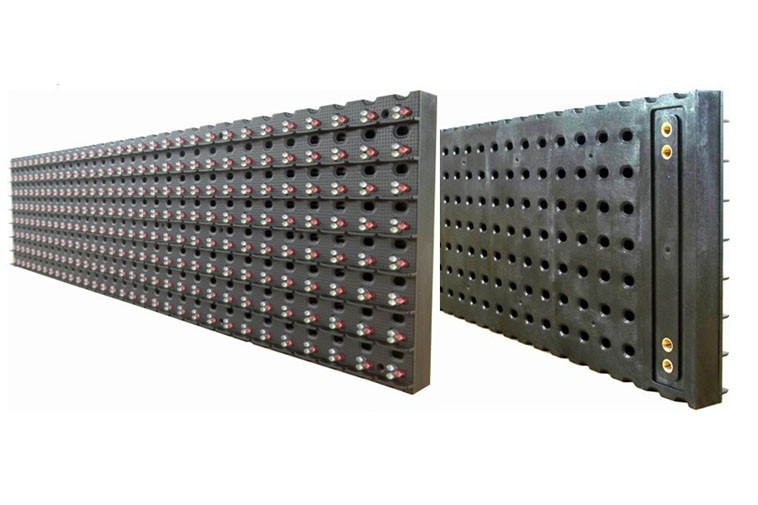

2, LED module: 512mm x 128mm;

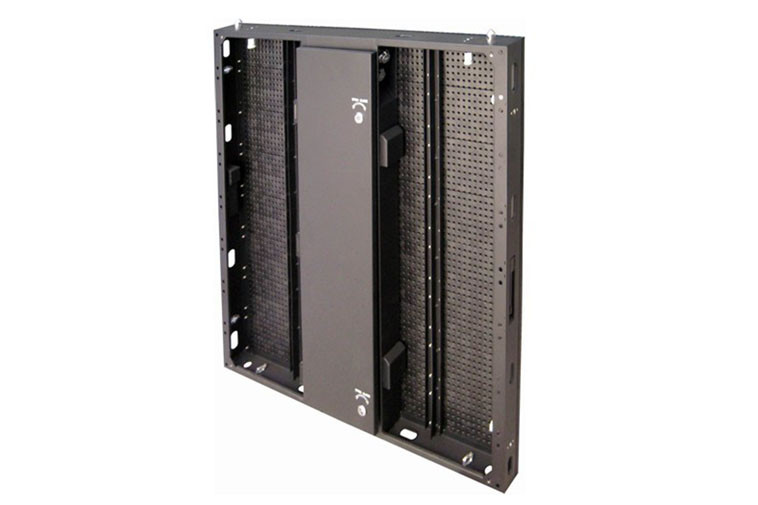

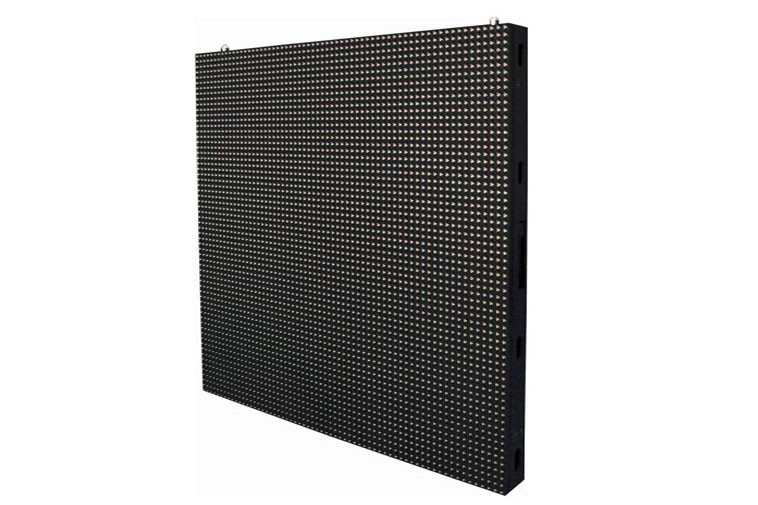

3, LED cabinet: 1024mm x 1024mm x 90mm;
4, Cabient weight: 35kg;
5, Light transmittance: 35%
6, IP65 waterproof for outdoor environment.
Description:
1. LED screen IP65:Waterproof and dustproof for outdoor and indoor use;
2. High brightness:Up to 8000cd/㎡ to deliver clear and vivid image even under direct sunshine;Auomatic brightness adjustable for day and night use;
3. Light transmittance:Up to 15%-40% transmittance and good heat dissipation,the LED screen not need air conditioning system and save cost;
4. Ultra light weight:20-30kg per square meter and this is about 30kg lighter weight compared with stanard outdoor LED display,this would save cost in installation steel structure also reduce structure load bearing,suitable for large size LED billbaords;
5. Low windage: It reduce windage and can save structure costs because of it’s ventilation;
6. Fast assembly and labour cost saving:It's much easier and quicker installation because of light weight design;
Applications:
Huge LED Display
Large Size LED Billboard
Big Street LED Billboards
Wall Mounted LED Screen
Shopping Mall LED Display
Super Market LED Display Screen
Outdoor Curtain LED Display
Outdoor Curtain LED Screen
Outdoor Waterproof Curtain LED Display
Lighter Weight Roof Building Curtain LED Display
Specifications :
| LED Module Parameter | |
| Pixel pitch (mm) | 16 |
| Pixel configuration | 1R1G1B |
| Encapsulation | DIP346 |
| Colors matches | 6:3:1 |
| Module resolution (pixels) | 32 x 8 |
| Module pixel | 256 |
| Module size (mm) | 512 x 128 |
| LED CABINET SPECIFICATION | |
| Cabinet size (mm) | 1024 x 1024 x 90 |
| Cabinet resolution (pixels) | 64 x 64 |
| Cabinet pixels (pixels) | 4096 |
| Cabinet material | Steel |
| Cabinet weight (kg) | 35 |
| LED DISPLAY SPECIFICATION | |
| Pixel density(pixel/m2) | 3906 |
| Brightness(cd/m2) | ≥7000 (adjustable) |
| Brightness adjusted | 100 grade by software or by Auto-optic induced |
| View angle | Horizontal 110°; Vertical 70° |
| Best viewing distance (m) | ≥14m |
| Communication distance(m) | <100meter by Internet Cable(without Relay; Multi mode fiber cable ＜ 500m; Single mode fiber cable ＜ 20km |
| Display work method | Static |
| LED driving method | Constant driving current |
| Light transmittance | 35% |
| Color contrast ratio | 1800:1 |
| Gray Grade | 16bit |
| Display Color | 439, 804, 651, 110 |
| Refresh Frequency (Hz) | ≥1200 |
| Picture display method | Intellective control technology , test-itself technology , correct technology, Synchronization Control |
| Input signal | DVI (S-VIDEO, CVBS, ,DP,HDMI,VGA, PAL/NTSC, etc.through Video processor converting ) |
| System operating | WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc. |
| Front/Rear IP Level | IP65 |
| Working temperature(ºC) | -20～+60 |
| Stored temperature (ºC) | -30～+80 |
| Operation humidity(RH) | 0-95% |
| Display Lifetime(hours) | 10 years or more( natural environment) 100000 hours( ideal environment) |
| Maintenance | Rear side |
| Working Voltage | AC110 / AC220V±10% 47～63HZ |
| Power consumption | Max: 850W/㎡ ; Ave:300W/㎡ |
| Out of controlled dot | ≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the wave length are both >10% depart to the normal one) |
Competitive advantages:
1, Lighter weight: about 30kg lighter weight compared with standard outdoor LED displays, suit for large size LED display projects like street LED billboards, wall mounted LED screen etc;
2, IP65 waterproof for outdoor environment use;
3, Light transmittance at 35%, better heat dissipation;
4, Energy saving: curtain LED display is utilizing unique 4.2V current design and this enables about 30% energy saving;
5, Cost effective: Curtain LED screen is of much lower weight, saving much cost on people for installation, also saves much cost on steel structure;
6, Outdoor curtain LED display not needs air conditioner cooling system.
