Outdoor Curtain LED Display Screen With H110º/ V70º View Angle
Product Details
| High Light | outdoor led curtain display,led curtain screen |
||
|---|---|---|---|
Product Description
Outdoor Curtain LED Display Screen With H110º/ V70º View Angle
Quick Detail:
1, Light transmittance: 35%
2, IP65 waterproof for outdoor environment.
3, P21.33 1R1G1B;
4, LED module: 512mm x 128mm;

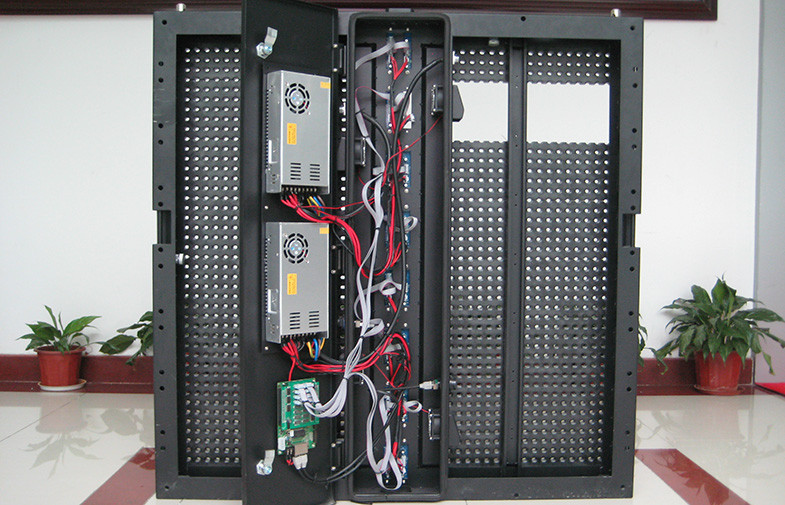

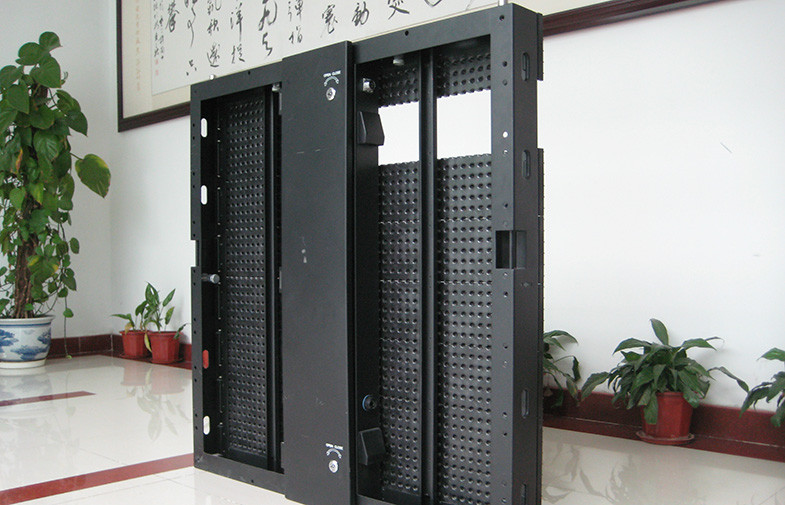

5, LED cabinet: 1024mm x 1024mm x 90mm;
6, Cabient weight: 35kg;
Description:
1. P21.33 Outdoor curtain LED screen is featured as fast assembly and labour cost saving:It's much easier and quicker to install because of light weight design;
2. P21.33 curtain LED display is of IP65,Waterproof and dustproof for outdoor use;
3. Outdoor curtain LED module is of high brightness up to 8000cd/㎡ to deliver clear and vivid image even under direct sunshine;
4. Working with Linsn or Novastar multi function card, outdoor LED screen realize auomatic brightness adjustmentfor day and night use;
5. Curtain LED display is of ultra light weight at about 30kg lighter weight compared with stanard outdoor LED displays;
6. Outdoor curtain LED screen's ligher weight features makes the LED billboard project saves cost in installation steel structure also reduce structure load bearing,suitable for large size LED billbaords;
Applications:
Huge LED Display
Large Size LED Billboard
Big Street LED Billboards
Wall Mounted LED Screen
Shopping Mall LED Display
Super Market LED Display Screen
Outdoor Curtain LED Display
Outdoor Curtain LED Screen
Outdoor Waterproof Curtain LED Display
Lighter Weight Roof Building Curtain LED Display
Specifications :
| LED Module Parameter | |
| Pixel pitch (mm) | 21.33 |

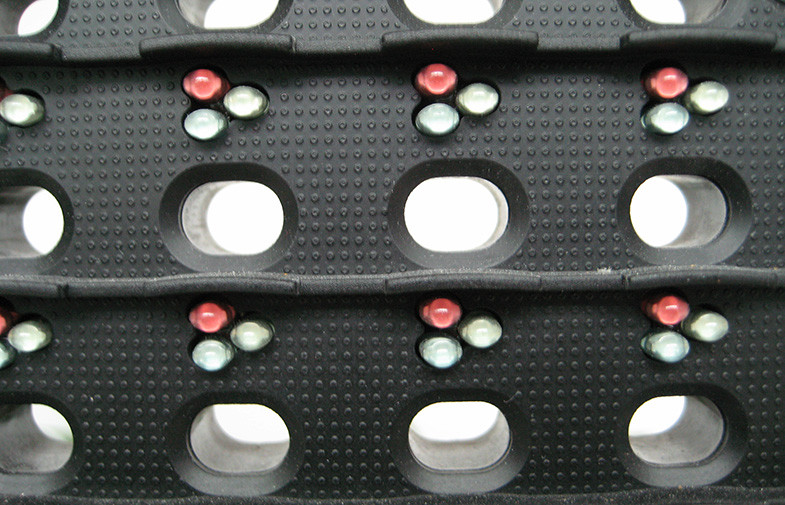

| Pixel configuration | 1R1G1B |
| Encapsulation | DIP346 |
| Colors matches | 6:3:1 |
| Module resolution (pixels) | 24 x 6 |
| Module pixel | 144 |
| Module size (mm) | 512 x 128 |
| LED CABINET SPECIFICATION | |
| Cabinet size (mm) | 1024 x 1024 x 90 |
| Cabinet resolution (pixels) | 48 x 48 |
| Cabinet pixels (pixels) | 2304 |
| Cabinet material | Steel |
| Cabinet weight (kg) | 30 |
| LED DISPLAY SPECIFICATION | |
| Pixel density(pixel/m2) | 2209 |
| Brightness(cd/m2) | ≥7000 (adjustable) |
| Brightness adjusted | 100 grade by software or by Auto-optic induced |
| View angle | Horizontal 110°; Vertical 70° |
| Best viewing distance (m) | ≥20m |
| Communication distance(m) | <100meter by Internet Cable(without Relay; Multi mode fiber cable ＜ 500m; Single mode fiber cable ＜ 20km |
| Display work method | Static |
| LED driving method | Constant driving current |

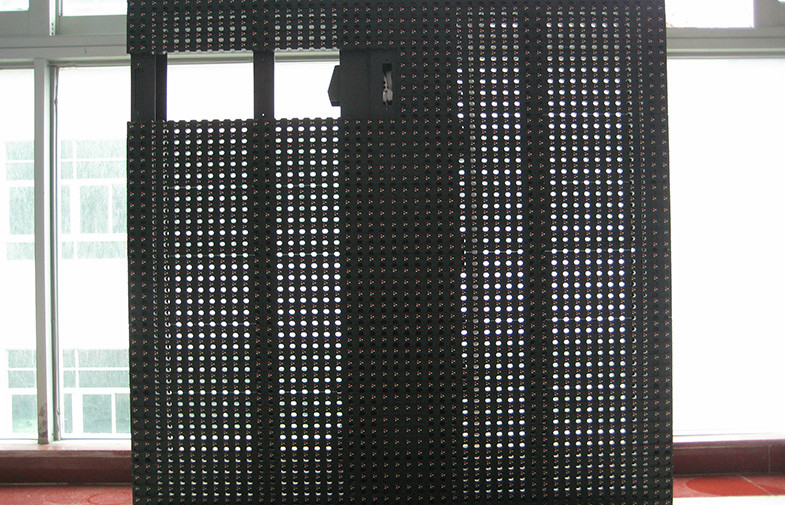

| Light transmittance | 35% |
| Color contrast ratio | 1800:1 |
| Gray Grade | 16bit |
| Display Color | 439, 804, 651, 110 |
| Refresh Frequency (Hz) | ≥1200 |
| Picture display method | Intellective control technology , test-itself technology , correct technology, Synchronization Control |
| Input signal | DVI (S-VIDEO, CVBS, ,DP,HDMI,VGA, PAL/NTSC, etc.through Video processor converting ) |
| System operating | WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc. |
| Front/Rear IP Level | IP65 |
| Working temperature(ºC) | -20～+60 |
| Stored temperature (ºC) | -30～+80 |
| Operation humidity(RH) | 0-95% |
| Display Lifetime(hours) | 10 years or more( natural environment) 100000 hours( ideal environment) |
| Maintenance | Rear side |
| Working Voltage | AC110 / AC220V±10% 47～63HZ |
| Power consumption | Max: 850W/㎡ ; Ave:300W/㎡ |
| Out of controlled dot | ≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the wave length are both >10% depart to the normal one) |
Competitive advantages:
1.Ultra light weight design:P21.33 outdoor curtain LED screen is of 20-30kg per square meter design,quicker and easier assembly;
2.High brightness:Up to 8000cd/㎡ delivers a vivid image and video even under direct sunshine;
3.Waterproof for outdoor use:IP65 both front and rear side,available for outdoor and indoor use;
4.Low windage: It reduce windage and can save steel structure costs because of it’s ventilation;
5.Light transmittance:Up to 15%-40% transmittance and good heat dissipation,the LED screen not need air conditioning system and save energy,save cost;
6.Applied for installation site that needs light weight outdoor LED display like roof building,single steel pole etc.
