High Brightness Outdoor Curtain LED Screens , 512mm x 128mm P16 led video curtain
Product Details
| High Light | led curtain screen,led flexible display |
||
|---|---|---|---|
Product Description
High Brightness Outdoor Curtain LED Screens , 512mm x 128mm P16 led video curtain
Quick Detail:
1, Cabinet Weight: 35kg;
2, DIP 346 Epistar LED chips;

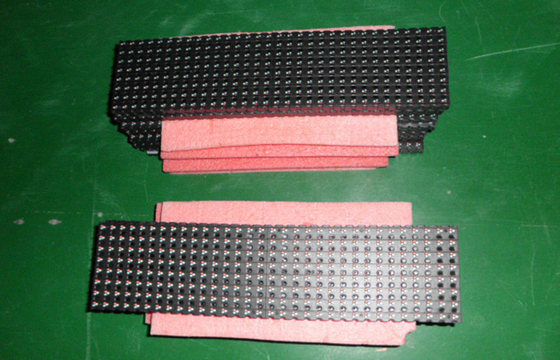

3, LED Module: 512mm x 128mm;

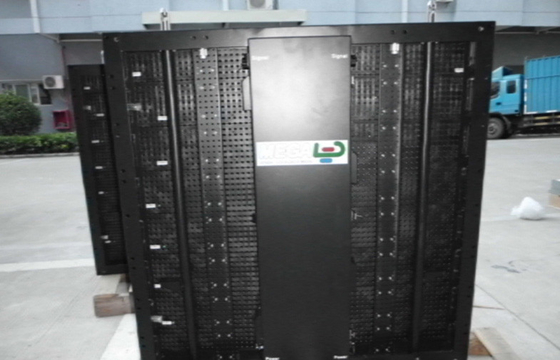

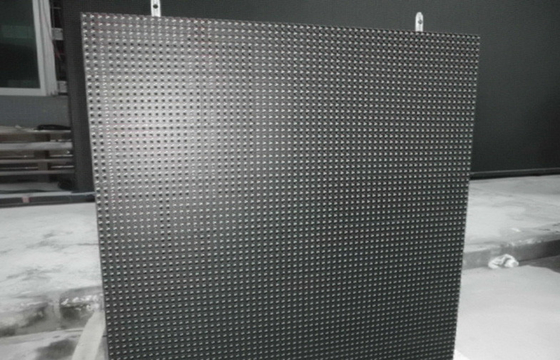

4, LED Cabinet: 1024mm x 1024mm x 90mm;
5, Light Transmittance: 35%;
6, Energy saving about 30%,DC4.2V;
Description:
1. Ultra thin design: Thickness is designed from 70-90mm,about 50mm thinner compared with standard outdoor LED display;
2. No frame connection in the middle of cabinet, which makes the cabinets more lighter, lightest is 6.5kgs;
3. High transmittance and good ventilation: The transmittance is over 15%-40% and gain the
homogeneous emission. Do not need air conditioning fan and saving costs;
4.Strong adaptability: The screen can be applied to a whole day work environment, waterproof,
dustproof and airproof design;
5.Energy saving: Power consumption is from 180-350w/m2, compared with conventional cabinets,it saves more than 40% energy.
6.Curtain LED screen is widely used on roof of building,steel pole that requre lighter weight LED display.
Applications:

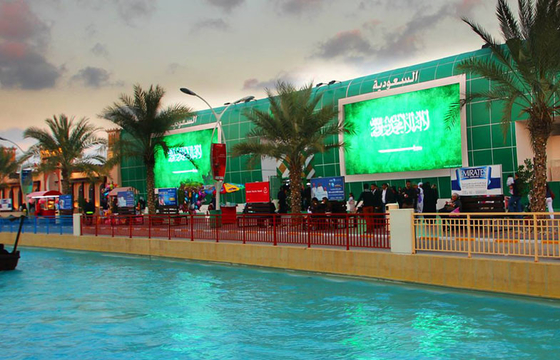

Curtain LED display is an perfect solution for projects that limit installation site back-side space, projects that needs lighter weight bearing. Curtain LED screen is suitable for large size LED display projects.
Huge LED Display
Large Size LED Billboard
Big Street LED Billboards
Wall Mounted LED Screen
Shopping Mall LED Display
Super Market LED Display Screen
Outdoor Curtain LED Display
Outdoor Curtain LED Screen
Outdoor Waterproof Curtain LED Display
Lighter Weight Roof Building Curtain LED Display
Specifications :
| LED MODULE PARAMETER | |
| Pixel pitch (mm) | 16 |
| Pixel configuration | 1R1G1B |
| Encapsulation | DIP346 |
| Colors matches | 6:3:1 |
| Module resolution (pixels) | 32 x 8 |
| Module pixel | 256 |
| Module size (mm) | 512 x 128 |
| LED CABINET SPECIFICATION | |
| Cabinet size (mm) | 1024 x 1024 x 90 |
| Cabinet resolution (pixels) | 64 x 64 |
| Cabinet pixels (pixels) | 4096 |
| Cabinet material | Steel |
| Cabinet weight (kg) | 35kg |
| LED DISPLAY SPECIFICATION | |
| Pixel density(pixel/m2) | 3906 |
| Brightness(cd/m2) | ≥7000 (adjustable) |
| Brightness adjusted | 100 grade by software or by Auto-optic induced |
| View angle | Horizontal 110°; Vertical 70° |
| Best viewing distance (m) | ≥14m |
| Communication distance(m) | <100meter by Internet Cable(without Relay; Multi mode fiber cable ＜ 500m; Single mode fiber cable ＜ 20km |
| Display work method | Static |
| LED driving method | Constant driving current |
| Light transmittance | 35% |
| Color contrast ratio | 1800:1 |
| Gray Grade | 16bit |
| Display Color | 439, 804, 651, 110 |
| Refresh Frequency (Hz) | ≥600 |
| Picture display method | Intellective control technology , test-itself technology , correct technology, Synchronization Control |
| Input signal | DVI (S-VIDEO, CVBS, ,DP,HDMI,VGA, PAL/NTSC, etc.through Video procrssor converting ) |
| System operating | WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc. |
| Front/Rear IP Level | IP65 |
| Working temperature(ºC) | -20～+60 |
| Stored temperature (ºC) | -30～+80 |
| Operation humidity(RH) | 0-95% |
| Display Lifetime(hours) | 10 years or more( natural environment) 100000 hours( ideal environment) |
| Maintenance | Rear side |
| Working Voltage | AC110 / AC220V±10% 47～63HZ |
| Out of controlled dot | ≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the wave length are both >10% depart to the normal one) |
Competitive advantages:
1. Low windage: It reduce windage and can save structure costs because of it’s ventilation;
2. Fast assembly and labour cost saving:It's much easier and quicker installation because of light weight design;
3. Lighter weight: 32kg/㎡ for outdoor fixed installation, about 30kg/㎡ lighter weight compared to standard outdoor cabinet;
4. Energy saving: Utilizing DC4.2V driving, saving about 30% energy;
5. Light transmittance: 35%, allowing sunshine and wind come through;
6. Applied for installation site that needs light weight outdoor LED display like roof building,single steel pole etc;
