P10 Full Color LED Video Wall with Epistar DIP346 16bit for Stage football filed
Product Details
| High Light | electronic led display,led video wall |
||
|---|---|---|---|
Product Description
P10 Full Color LED Video Wall with Epistar DIP346 16bit for Stage football filed
Quick Detail:
1, Front open, front maintenance;
2, High resolution at 10000 pixels/㎡;
3, LED chips: Epistar DIP346;
4, Module Size: 320mm x 320mm;
5, Power Supply: Meanwell;
6, Control system: Novastar etc.
Description:
1, P10 front open LED sign is of high brightness up to 8000 cd/㎡, enabling P10 LED screen a clear and vivid image and video presentation even under direct sunshine;

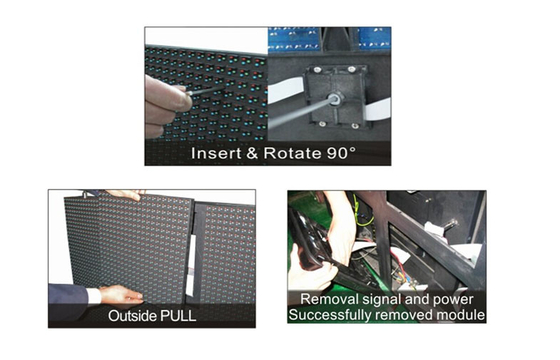

2, Fast and easy operation: Front maintenance LED display screen only take a few seconds to disassemble and assembly LED panels.
3, P10 dual maintenance LED display is widely built for large size LED billboards projects that limiting back space;
4, P10 outdoor dual maintenance LED screens is of high resolution for eletronic outdoor LED billboard projects;
5, Simple and easy maintenance, there is no screw between LED panel and LED module,which is be easier to disassemble and install;
6, P10 DIP dual maintenance LED display of good waterproof effect for outdoor environment use;
Applications:
Front and Back Maintenance LED Display Screen
Front and Rear Maintenance LED Panel
Easy Maintenance LED Signage
Front Maintenance LED Billboard
Front Accessible LED Signs
Front Maintenance Digital LED Sign
LED Digital Sign Front Maintenance
Electronic LED Sign Front Accessible
Front Maintenance LED Sign
Front Open LED Display
Dual Maintenance LED Screen
Specifications :

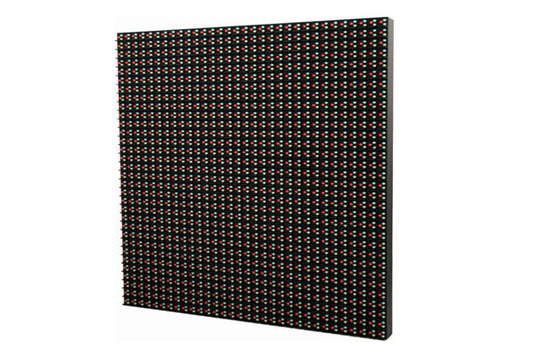

| LED Module Parameter | |
| Pixel pitch (mm) | 10 |
| Pixel configuration | 1R1G1B |
| Encapsulation | DIP346 |
| Colors matches | 6:3:1 |
| Module resolution (pixels) | 32 x 32 |
| Module pixel | 1024 |
| Module size (mm) | 320 x 320 |
| LED CABINET SPECIFICATION | |
| Cabinet size (mm) | 960 x 960 x 150 |
| Cabinet resolution (pixels) | 96 x 96 |
| Cabinet pixels (pixels) | 9216 |
| Cabinet material | Steel |
| Cabinet weight (kg) | 55 |
| LED DISPLAY SPECIFICATION | |
| Pixel density(pixel/m2) | 10000 |
| Brightness(cd/m2) | ≥8000 (adjustable) |
| Brightness adjusted | 100 grade by software or by Auto-optic induced |
| View angle | Horizontal 110°; Vertical 70° |
| Best viewing distance (m) | ≥8m |
| Communication distance(m) | <100meter by Internet Cable(without Relay; Multi mode fiber cable ＜ 500m; Single mode fiber cable ＜ 20km |
| Display work method | 1/4 Scan |
| LED driving method | Constant driving current |
| Color contrast ratio | 1800:1 |
| Gray Grade | 16bit |
| Display Color | 439, 804, 651, 110 |
| Refresh Frequency (Hz) | ≥600 |
| Picture display method | Intellective control technology , test-itself technology , correct technology, Synchronization Control |
| Input signal | DVI (S-VIDEO, CVBS, ,DP,HDMI,VGA, PAL/NTSC, etc.through Video procrssor converting ) |
| System operating | WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc. |
| Front/Rear IP Level | IP65 |
| Working temperature(ºC) | -20～+60 |
| Stored temperature (ºC) | -30～+80 |
| Operation humidity(RH) | 0-95% |
| Display Lifetime(hours) | 10 years or more( natural environment) 100000 hours( ideal environment) |
| Maintenance | Front & Rear |
| Working Voltage | AC110 / AC220V±10% 47～63HZ |
| Out of controlled dot | ≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the wave length are both >10% depart to the normal one) |
Competitive advantages:
1. P10 1RGB front open LED sign is suitable for LED billboard projects that limiting installation site back side space;
2. Dual maintenance LED screen is space saving:For installation site that backside space limited,it's a perfect option of this dual maintenance LED display which allows front maintenance and not need backside space;
3. P10 DIP346 front accessible LED sign is available for both front and back maintenance;
4. P10 dual maintenance LED display is of high resolution at 10000 pixels/㎡ to show clear and vivid LED billboard advertising;
5, P10 dual maintenance LED screen is utilizing best quality raw materials like Epistar LED chips, MBI5020 and MBI5024 LED driver IC, meanwell power supply etc. to insure stable high quality.
6. There is no screw between LED modules and LED panel for fast and easy maintenance;
