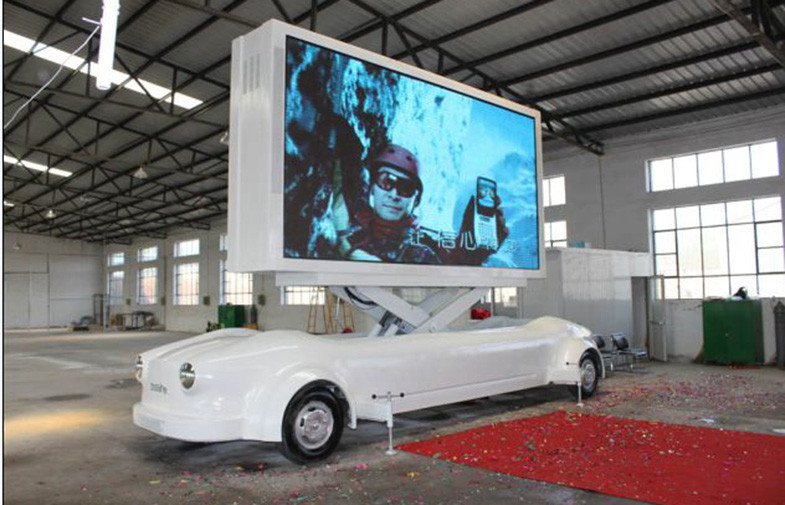

1RGB P10 Vehicle Truck Led Screen Trailer IP65 , Mobile Billboard Advertising
Product Details
| High Light | mobile led screen,mobile led display trailer |
||
|---|---|---|---|
Product Description
1RGB P10 Vehicle Truck Led Screen Trailer IP65 , Mobile Billboard Advertising
Quick Detail:
1. High resolution of 10000pixels/㎡;
2. Module: 320mm x 320mm;
3, Noiseless power generator equipped.
4, Anti-shake;
5, Anti-thunder;
6, Mobile movable;
Description:
1. P10 trailer LED screen is utilizing Epistar LED chips to realize high brightness up to 8000cd/㎡;
2. P10 truck LED display is equipped with multi function card for automatic brightness adjustment;
3. P10 trailer LED screen support asynchronous control sytem like Xixun,Nova star, also support synchronous control system like Linsn,Nova and ZDEC etc;
4. Trailer LED display P10 is utilizing energy saving LED display solution, and this feacutre brings truck LED screen big advantage in mobile LED billboard use;
5. Mobile trailer LED screen is of high level anti-shake: this point is very important for movable LED screen. All the truck LED screen must pass our anti-viration test before shipment;
6. Trailer mounted LED displayis equipped generator inside the truck to support move freely to any site needed without power supplying issue;
Applications:
Truck LED Display
Truck LED Screen
Trailer Mounted LED Display
Trailer Mounted LED Screen
LED Display Truck Rental
Mobile Truck LED Display
Movable LED Screens
LED Screen Trailer
LED Display Trailer
Specifications :
| LED Module Parameter | |
| Pixel pitch (mm) | 10 |
| Pixel configuration | 1R1G1B |
| Encapsulation | DIP246 |
| Colors matches | 6:3:1 |
| Module resolution (pixels) | 32 x 32 |
| Module pixel | 1024 |
| Module size (mm) | 320 x 320 |
| LED CABINET SPECIFICATION | |
| Cabinet size (mm) | 960 x 960 x 150 |
| Cabinet resolution (pixels) | 96 x 96 |
| Cabinet pixels (pixels) | 9216 |
| Cabinet material | Steel |
| Cabinet weight (kg) | 50 |
| LED DISPLAY SPECIFICATION | |
| Pixel density(pixel/m2) | 10000 |
| Brightness(cd/m2) | ≥8000 (adjustable) |
| Brightness adjusted | 100 grade by software or by Auto-optic induced |
| View angle | Horizontal 110°; Vertical 70° |
| Best viewing distance (m) | ≥8m |
| Communication distance(m) | <100meter by Internet Cable(without Relay; Multi mode fiber cable ＜ 500m; Single mode fiber cable ＜ 20km |
| Display work method | 1/4 Scan |
| LED driving method | Constant driving current |
| Color contrast ratio | 1800:1 |
| Gray Grade | 16bit |
| Display Color | 439, 804, 651, 110 |
| Refresh Frequency (Hz) | ≥1000 |
| Picture display method | Intellective control technology , test-itself technology , correct technology, Synchronization Control |
| Input signal | DVI (S-VIDEO, CVBS, ,DP,HDMI,VGA, PAL/NTSC, etc.through Video processor converting ) |
| System operating | WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc. |
| Front/Rear IP Level | IP65 |
| Working temperature(ºC) | -20～+60 |
| Stored temperature (ºC) | -30～+80 |
| Operation humidity(RH) | 0-95% |
| Display Lifetime(hours) | 10 years or more( natural environment) 100000 hours( ideal environment) |
| Maintenance | Rear side |
| Working Voltage | AC110 / AC220V±10% 47～63HZ |
| Power consumption | Max: 900W/㎡ ; Ave:400W/㎡ |
| Out of controlled dot | ≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the wave length are both >10% depart to the normal one) |
Competitive advantages:
1. Convenient control method: P10 trailer mounted LED screen provides MINI multimedia control room which supports multiple formats of the input mode,can use GPRS,3G wireless control system;
2, Quick revenue, as truck LED display is of frequent and convenient use for events, so it can be used more times in a limited time and earn more revenue;
3, P10 trailer LED screen is of high brightness to deliver a clear image and video even under direct sunshine;
4, High resolution: P10 truck LED display is mostly used as high resolution outdoor LED screens;
5, Movable: truck LED screen is convenient to move from one site to next;
6.High level anti-shake: To insure truck LED screen is of high grade anti-shake, each cabinet has to pass a strict anti-vibration test to prevent the damages caused by any improper transportation before the shipment.
