1R1G1B P16 DIP Full Color Outdoor Led Screen 960 x 960 x 150

  • img.alt
  • img.alt
  • img.alt
Place of Origin China
Brand Name YUCHIP
Certification CE,ROHS,FCC,EMC
Model Number OF-16D
Minimum Order Quantity 1sqm
Price Negotiable
Packaging Details Flight Case,Wooden Case,Strong Carton Box
Delivery Time 15-20 Working Days
Payment Terms T/T
Supply Ability 5000㎡/Month
Product Details
High Light

outdoor full color led display

,

stage background led screen
Leave a Message
Product Description

P16 DIP Full Color Outdoor Led Screen,P16 Outdoor Led Display description:



P16 DIP Full Color Outdoor Led Screen is specially designed for the outdoor HD shows; LED lamp adopts standard φ4 oval DIP technology with high brightness and good heat dissipation. Every pixel is composed by red, green, blue color, the colors of the display can be reached 1.07 billion kinds, and can display colorful dynamic and static images in real time, it has perfect display effect. The display supports the usual VGA and DVI traditional video signal, it also specially supports HDMI video signal, and so on, in addition, it can receive and show video programs, such as TV programs,VCD or DVD,live programs, and so on.

P16 DIP Full Color Outdoor Led Screen adopts full automatic production, The product has high reliability, saturated and uniform color, high brightness, low consumption, long service life, is widely used in outdoor sites, such as square, outdoor concerts, theme park, shopping mall, golf courses, and so on.





Description:



1. P16 DIP Lamp Outdoor LED Screens is utilizing standard LED cabinet of IP65,waterproof and dustproof;

2. P16 Outdoor Full Color LED Signs is being widely choose for large size outdoor LED billboards projects;

3. Outdoor Full Color LED Signs P16 high brightness up to 8000cd/㎡,and special requirement LED screen projects can reach 10,000nits;

4, P16 LED billboards present clear vivid image and video even under direct sunshine;

5. Short best view distance,for P10 outdoor LED display,the best view distance is above 8 meters;Audience/potential consumers people passed by would enjoy a clear image that standing above 8 meters.

6, Outdoor full color LED display is utilizing control software like Linsn, Novastar, DBstar, ZQEC etc.





P16 DIP Full Color Outdoor Led Screen Cabinet:



P16 DIP Full Color Outdoor Led Screen Cabinet



P16 Outdoor Led Display CabinetApplications:

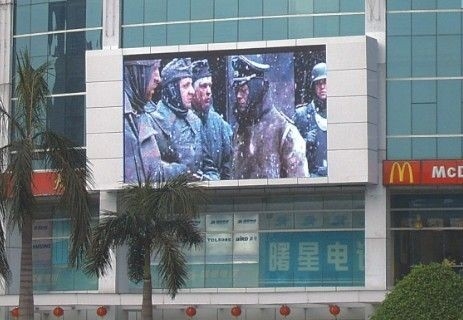

On roof of building Full Color LED Display

Mounted on buildingFull Color LED Display

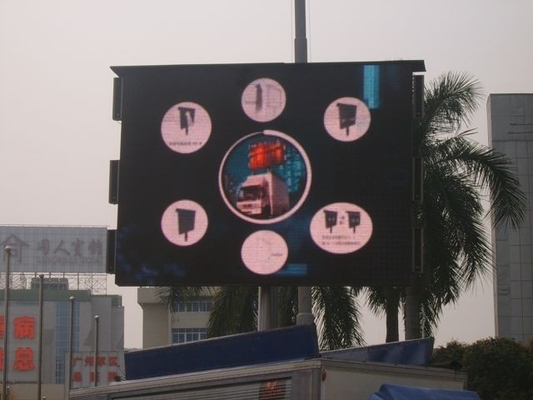

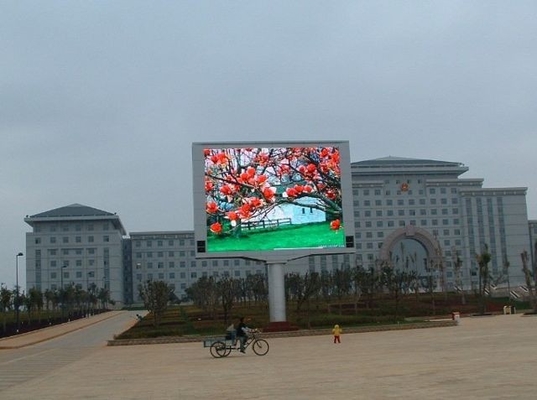

Put on steel pole Full Color LED Display

Cross bridge information Full Color LED Display

Shopping Mall Full Color LED Display
Commercial Advertising Full Color LED Display
Church Full Color LED Display
Road Show Full Color LED Display
High Speed Way Full Color LED Display







Specifications :

LED Module Parameter
Pixel pitch (mm) 16
Pixel configuration 1R1G1B
Encapsulation DIP346
Colors matches 6:3:1
Module resolution (pixels) 20 x 20
Module pixel 400
Module size (mm) 320 x 320
LED CABINET SPECIFICATION
Cabinet size (mm) 960 x 960 x 150
Cabinet resolution (pixels) 60 x 60
Cabinet pixels (pixels) 3600
Cabinet material Steel
Cabinet weight (kg) 50
LED DISPLAY SPECIFICATION
Pixel density(pixel/m2) 3906
Brightness(cd/m2) ≥8000 (adjustable)
Brightness adjusted 100 grade by software or by Auto-optic induced
View angle Horizontal 110°; Vertical 70°
Best viewing distance (m) ≥14m
Communication distance(m) <100meter by Internet Cable(without Relay; Multi mode fiber cable ＜ 500m; Single mode
fiber cable ＜ 20km
Display work method Static
LED driving method Constant driving current
Color contrast ratio 1800:1
Gray Grade 16bit
Display Color 439, 804, 651, 110
Refresh Frequency (Hz) ≥1000
Picture display method Intellective control technology , test-itself technology , correct technology, Synchronization
Control
Input signal DVI (S-VIDEO, CVBS, ,DP,HDMI,VGA, PAL/NTSC, etc.through Video processor converting )
System operating WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc.
Front/Rear IP Level IP65
Working temperature(ºC) -20～+60
Stored temperature (ºC) -30～+80
Operation humidity(RH) 0-95%
Display Lifetime(hours) 10 years or more( natural environment) 100000 hours( ideal environment)
Maintenance Rear side
Working Voltage AC110 / AC220V±10% 47～63HZ
Power consumption Max: 850W/㎡ ; Ave:350W/㎡
Out of controlled dot ≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the wave
length are both >10% depart to the normal one)
