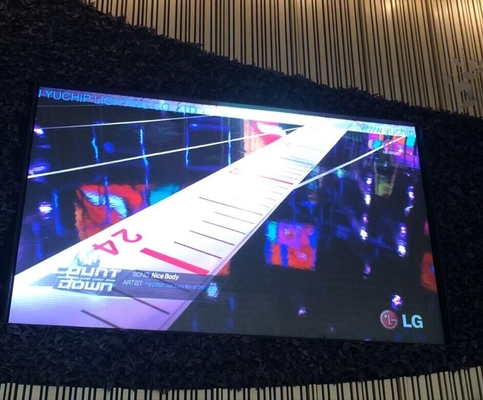

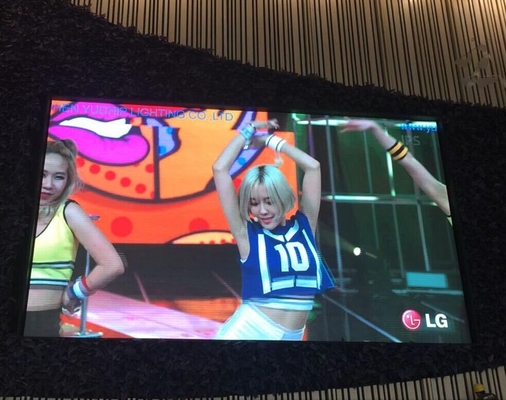

Indoor LED Video Wall Indoor SMD LED Video Display P6 Fixed installation
Product Details
| High Light | led curtain screen,led flexible display |
||
|---|---|---|---|
Product Description
YUCHIP indoor Fixed Led Video Wall Features:
1.Hot sale Fixed setting indoor p6 led display
2.Big viewing angle
3.High brightness
4.2 years warranty
5.CE,ROHS,CCC.
YUCHIP indoor Fixed Led Video Wall Advantage
1.High brightness Contrast:4000:1, which is a very high level to ensure a vivid image of our LED display screen system
2. First-class LED chip: Supplied by Cree & other high strictly selected LED chip to ensure the long lift-time and high brightness of our LED display screen system
3.Clear vivid image quality even in direct, full-on sunlight to ensure you attracts more audience to get short ROIof your LED display screen's investment.
4.Long-term Brightness:More 7000-nit brightness(for outdoor full color)(2000 nits brightness for indoor full color)capacity throughout product lifetime of the LED display screen.
5.Easy Installation & Using: easy & simple installation interface and user friendly software to ensure the user friendly interface of the LED display screen system
6.Convenient Servicing: Front and rear cabinet access make the maintance work very convenient and low cost to help you concentrate more time and energy on your main marketing promotion business.
YUCHIP Indoor Fixed Led Video Wall Parameter:
|
Description |
Technical parameter |
|
|
Unit module |
Module size |
192*96mm |
|
Pixel pitch |
6mm |
|
|
Pixel density |
27777dots/sqm |
|
|
Pixel configuration |
1R1G1B |
|
|
Led specification |
SMD3528 |
|
|
Pixel resolution |
W32:dots*H:32dots |
|
|
Cabinet |
Dimension |
576mm*576mm*80mm |
|
Quantities of module |
18pcs |
|
|
Power supply |
3pcs |
|
|
Thermal discharge |
Fan*2pcs |
|
|
Total weight |
12kg |
|
|
Best viewing distance |
6-150m |
|
|
Temperature |
Storage: -35°C~+85°C |
|
|
Working: -35°C~+85°C |
||
|
Thickness |
12cm can adjustable |
|
|
Remarks: cabinet size can changed, upon project need. |
||
|
Power |
Working voltage |
AC220V/110V±10% |
|
Average power consumption |
300-400W |
|
|
Max. Power consumption |
≤1000W/sqm |
|
|
Current |
≤20mA(single LED) |
|
|
Control system |
CPU |
Pentium4 or above |
|
Operating system |
WIN98/2000/NT/XP |
|
|
Control method |
Synchronization |
|
|
Main technical parameter |
Driving device |
1/16scanning |
|
Drive type |
Constant Current driver IC |
|
|
Refresh frequency |
≥400Hz |
|
|
Grey scale/colors |
256 levels of each color(R/G/B)/16.7M color |
|
|
Brightness of white balance |
More than 8000cd/sqm |
|
|
Brightness adjustment |
256 levels of each color(R/G/B)by software |
|
|
Operating ambient humidity |
10%--95% |
|
|
Video signal |
PAL/NTSC |
|
|
Control system |
DVI display card+full color controller card |
|
|
MTBF |
≥10,000hours |
|
|
Life span |
≥100,000hours |
|
|
Flatness |
Tolerance of interpixel ≤0.3mm |
|
|
Tolerance of modules clearance≤0.6mm |
||
|
Power switch |
Automatic switch |
|
|
Display mode |
1024*768 |
|
|
Software |
LED media player |
|
Our service
1.Your inquiry related to our products or price will be replied in 24hrs
2.OEM&ODM,any your customized lightings we can help you to design and put into product
3.Distributoership are offered for your unique design and some our current models
4.Protection of your sales area,ideas of design and all your private information
5.Top Quality+Reasonable Price+Responsible After Service=Successful & Win
6. Export countries : Peru, Mexico, Colombia, Turkey, US, UK, etc.
