P2.5 High Resolution RGB P2.5 Led Display Module Waterproof 6kg

  • img.alt
  • img.alt
  • img.alt
  • img.alt
Place of Origin China
Brand Name YUCHIP
Certification CE,ROHS,FCC,EMC
Model Number P2.5
Minimum Order Quantity 1
Price Negotiable
Packaging Details Flight Case,Wooden Case,Strong Carton Box
Supply Ability 5000㎡/Month
Product Details
Encapsulation SMD1010 Module Resolution (pixels) 80*120
Module Size (mm) 200*300 Module Pixel 9600
High Light

high definition led display

,

commercial led display
Leave a Message
Product Description

Indoor Led DISPLAY Modules P2.5 Wholesale Price High Resolution RGB P2.5 Module Waterpfoor

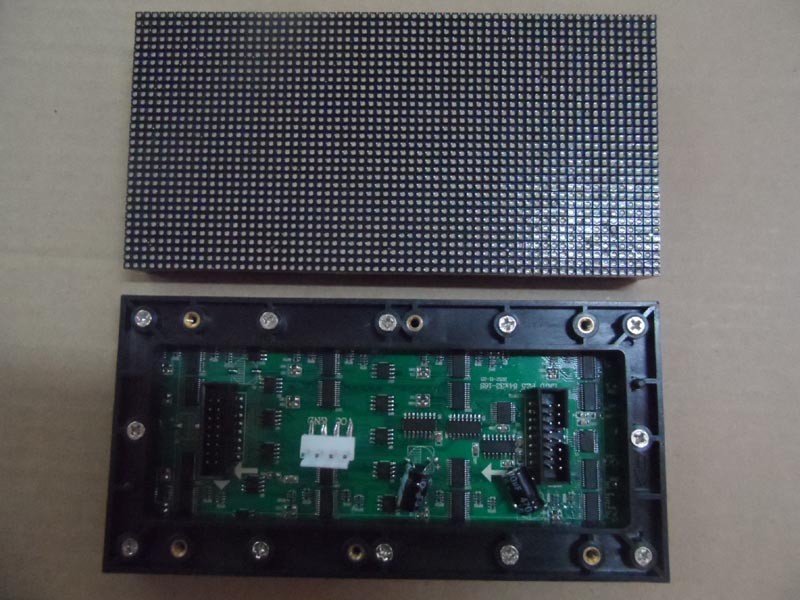

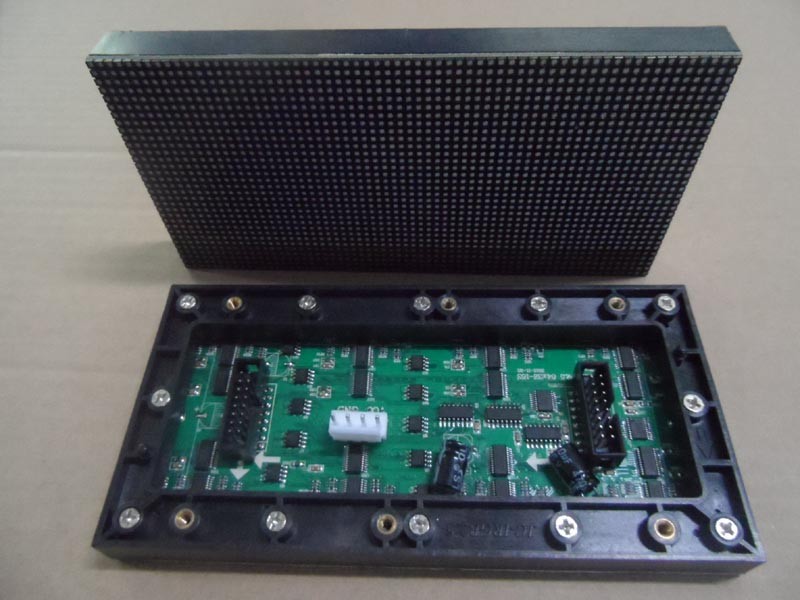

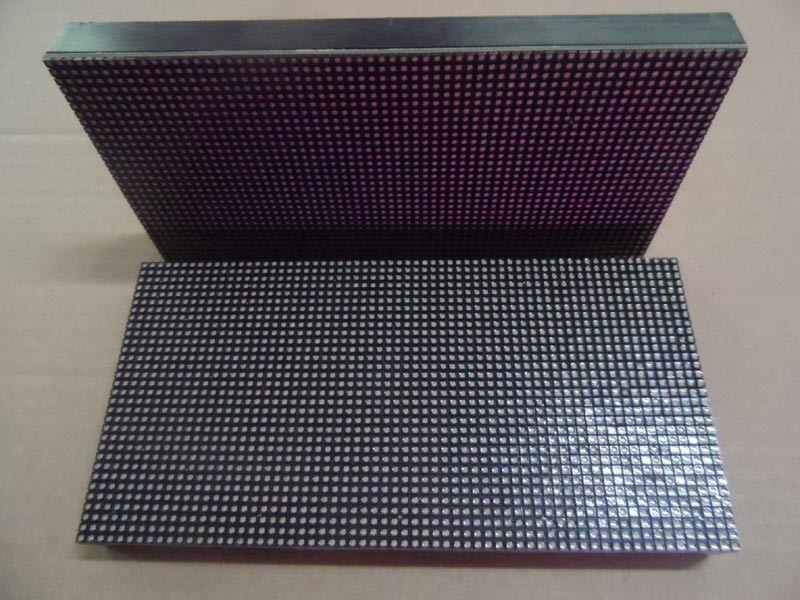

P2.5 Indoor Led Module Parameters:



LED MODULE PARAMETER
Pixel pitch (mm)
Pixel configuration 3 in 1
Encapsulation SMD1010
Colors matches 6:3:1
Module resolution (pixels) 80*120
Module pixel 9600
Module size (mm) 200*300
LED CABINET SPECIFICATION
Cabinet size (mm) 400*300*77mm
Cabinet resolution (pixels) 160*120
Cabinet pixels (pixels) 19200
Cabinet material Aluminum
Cabinet weight (kg) 6kg
LED DISPLAY SPECIFICATION
Pixel density(pixel/m2) 160000
Brightness(cd/m2) ≥800 (adjustable)
Brightness adjusted 100 grade by software or by Auto-optic induced
View angle Horizontal 140°; Vertical 140°
Best viewing distance (m) ≥2.5m
Communication distance(m) <100meter by Internet Cable(without Relay; Multi mode fiber cable ＜ 500m;
Single mode fiber cable ＜ 20km
Display work method 1/30 Scan
LED driving method Constant driving current
Color contrast ratio 1800:1
Gray Grade 14bit
Display Color 439, 804, 651, 110
Refresh Frequency (Hz) ≥1920
Picture display method Intellective control technology , test-itself technology , correct technology,
Synchronization Control
Input signal DVI (S-VIDEO, CVBS, ,DP,HDMI,VGA, PAL/NTSC, etc.through Video processor
converting )
System operating WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc.
Front/Rear IP Level IP30
Working temperature(ºC) -10～+40
Stored temperature (ºC) -30～+80
Operation humidity(RH) 0-95%
Display Lifetime(hours) 10 years or more( natural environment)
100000 hours( ideal environment)
Maintenance Rear side
Working Voltage AC110 / AC220V±10% 47～63HZ
Out of controlled dot ≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the
wave length are both >10% depart to the normal one)

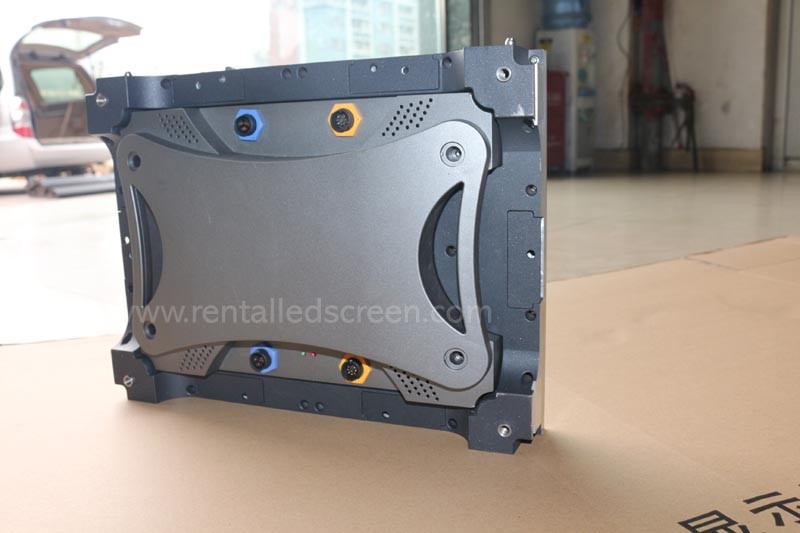

P2.5 Indoor HD Led Display Cabinets



Applications of led display

The indoor and outdoor LED displays are widely used on street, building, supermarket, entertainment place, sports field, live show stage, meeting room, airport, hotel and many other places for advertising and other usage.

(1) Use high quality LED chip
(2) Long life span (100,000 hours)
(3) Luminance difference between 2 lamps is less than 20%
(4) Easy maintain
(5) Working under the temperature -30C to +75C

Merits for our goods

1) Price Advantage: we have the best competitive price at the market, also have the same even better quality.
2) Quality advantage: From material to finished product, from design to produce, we control all steps.
3) Service advantage: Better service at same situation, better cooperation at same service.
