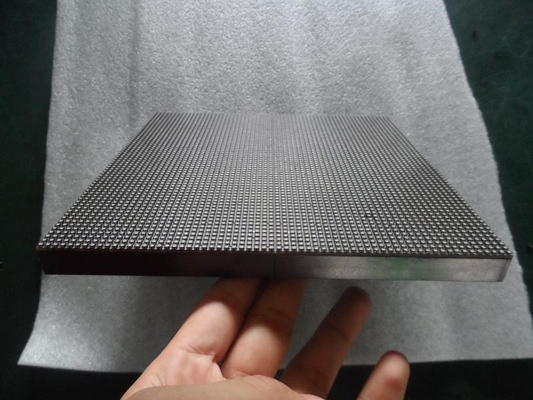

3mm SMD2121 RGB LED Display Module 64*32 Pixle HD Video Images Picture P3

  • img.alt
  • img.alt
  • img.alt
Place of Origin China
Brand Name YUCHIP
Certification CE,ROHS,FCC,EMC
Model Number P3
Minimum Order Quantity 1
Price Negotiable
Packaging Details Flight Case,Wooden Case,Strong Carton Box
Supply Ability 5000㎡/Month
Product Details
Encapsulation SMD2121 Module Resolution (pixels) 64*32
Module Size (mm) 192.96 Module Pixel 2048
High Light

high definition led display

,

commercial led display
Leave a Message
Product Description

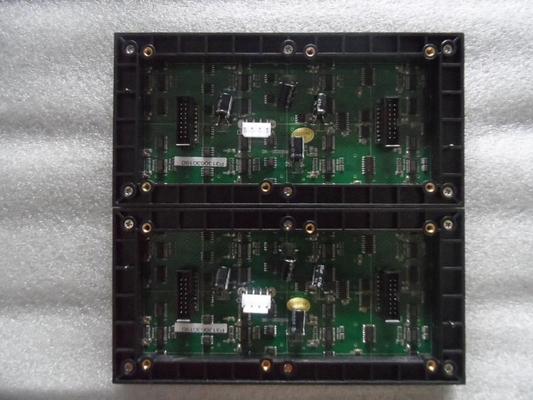

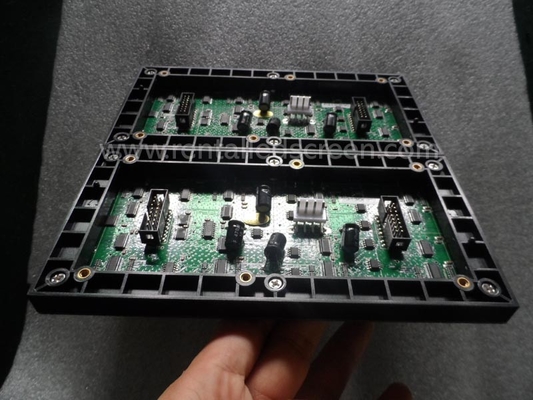

Indoor SMD2121 RGB LED Display Module 192mm x 96mm

P3 Indoor Led Module Parameters:



LED MODULE PARAMETER
Pixel pitch (mm) 3
Pixel configuration 3 in 1
Encapsulation SMD2121
Colors matches 6:3:1
Module resolution (pixels) 64*32
Module pixel 2048
Module size (mm) 192*96
LED CABINET SPECIFICATION
Cabinet size (mm) 576*576*140mm
Cabinet resolution (pixels) 192*192
Cabinet pixels (pixels) 36864
Cabinet material Steel
Cabinet weight (kg) 15kg
LED DISPLAY SPECIFICATION
Pixel density(pixel/m2) 111111
Brightness(cd/m2) ≥2000 (adjustable)
Brightness adjusted 100 grade by software or by Auto-optic induced
View angle Horizontal 140°; Vertical 140°
Best viewing distance (m) ≥3m
Communication distance(m) <100meter by Internet Cable(without Relay; Multi mode fiber cable ＜ 500m;
Single mode fiber cable ＜ 20km
Display work method 1/30 Scan
LED driving method Constant driving current
Color contrast ratio 3000:1
Gray Grade 16bit
Display Color 439, 804, 651, 110
Refresh Frequency (Hz) ≥1200
Picture display method Intellective control technology , test-itself technology , correct technology,
Synchronization Control
Input signal DVI (S-VIDEO, CVBS, ,DP,HDMI,VGA, PAL/NTSC, etc.through Video processor
converting )
System operating WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc.
Front/Rear IP Level IP30
Working temperature(ºC) -10～+40
Stored temperature (ºC) -30～+80
Operation humidity(RH) 0-95%
Display Lifetime(hours) 10 years or more( natural environment)
100000 hours( ideal environment)
Maintenance Rear side
Working Voltage AC110 / AC220V±10% 47～63HZ
Out of controlled dot ≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the
wave length are both >10% depart to the normal one)




indoor P3 led display module aging



led indoor module aging from yuchip



indoor led display case from yuchip



Applications of led display

The indoor and outdoor LED displays are widely used on street, building, supermarket, entertainment place, sports field, live show stage, meeting room, airport, hotel and many other places for advertising and other usage.

(1) Use high quality LED chip
(2) Long life span (100,000 hours)
(3) Luminance difference between 2 lamps is less than 20%
(4) Easy maintain
(5) Working under the temperature -30C to +75C

Merits for our goods

1) Price Advantage: we have the best competitive price at the market, also have the same even better quality.
2) Quality advantage: From material to finished product, from design to produce, we control all steps.
3) Service advantage: Better service at same situation, better cooperation at same service.
