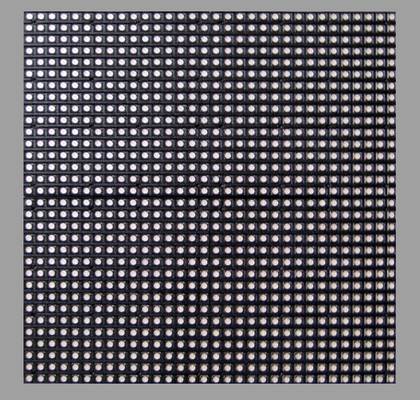

P3 P4 P4.8 P6 Rental Led Panel Module 288*288mm SMD3528 Indoor
Product Details
| Encapsulation | SMD3528 | Viewing Angle | H:140,V:140 |
|---|---|---|---|
| Module Size (mm) | 288*288 | Brightness(nits) | 2500 |
| High Light | high definition led display,p10 led module |
||
Product Description
P4.8 Led Display Module Features:
1.Rental box adopt the die casting aluminum forming, product strength, precision and seamless surface of the whole screen.
2.Die casting aluminum quality improve heat dissipation performance, reduce the light failure, extend the service life of the body
3.The screen body easy maintenance, on-site module can change from house box to maintenance
4. Based on the rapid connection between Body design, assembling cabinet is convenient, fast, don't need the lock bolt
5. Body slim, only 10.5 kg, easy to install
6. Product general spacing is compatible with a variety of point, the product easy to upgrade.
7 noisless,low heat and low radiation
| Parameters | Indoor Die-casting LED display series(576*576) | ||||
| Pixel Pitch (mm) | 3.84mm | 4.0mm | 4.8mm | 5.33mm | 6mm |
| Pixel density(pix/m2) | 67817 | 62500 | 43402 | 35200 | 27777 |
| LED Type | SMD2020 | SMD3528 | |||
| Viewing Angle | H:140,V:140 | ||||
| Brightness(nits) | 1500 | 1600 | 2500 | 2500 | 2000 |
| Drive Method | 1/15 | 1/12 | 1/15 | 1/9 | 1/12 |
| Color Depth | 16bit | ||||
| Refresh Rate(Hz) | 600HZ | 1200HZ | |||
| Module Size (mm) | 288×288 | ||||
| Cabinet Size(mm) | 576×576 | ||||
| Cabinet Material | Die-cast aluminum | ||||
| Cabinet weight(kg) | 10.5 | ||||
| Voltage | 110/250V | ||||
| Average.power(W / m2) | 260 | 230 | 170 | 270 | 190 |
| Max.power (W / m2) | 780 | 670 | 500 | 800 | 560 |
| IP Grade | IP31 | ||||
| Operating temperature/humidity | temperature:-20°C~ 50°C humidity:10~90%RH | ||||
| Storage temperature/ humidity | temperature:-40°C~ 60°C humidity:10~90%RH | ||||
| Lifetime(h) | ≥50000 | ||||
| Compliant Standard | CCC,CE,Rosh | ||||
1. What about your MOQ?
MOQ for 192x192 led screen is 3 square meters. Actually, we can make solution and proposition according to your neds. You if you have needs for led scren, please tell us more details, this will help us to make reasonable solution for you.
2.How about the payment?
As rule, T/T payment or Western Union payment is both ok. 40% payment first for our production, 60% balance before our delivery. We will take photos and videos for you before delivery for your check. And you can also ask your Chinese friend come to our factory for QC. Before our delivery, your screen already has 72 hours test without stop in our factory to ensure our real quality.
3.How's your delivery?
There are 3 ways for delivery, air trnsportation, shipping by sea and DHL/FEDEX express. When over 150KG, we advise ship by air or ship by sea. If it is not so urgent, ship by sea for led display is the most favourable.
4.How about your warranty?
We provide 2 years free warranty and lifespan maintain service/lifespan technical support. So if any problem for your led tv, you can contact with us, we will solve trouble for you within 24 hours. For important project, we can also send our engineer to your country for training. Our engineer will teach your team how to maintain led screeen and train your team for correct operation of led screen.
