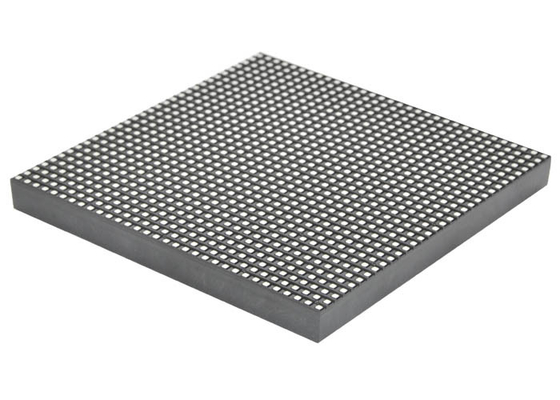

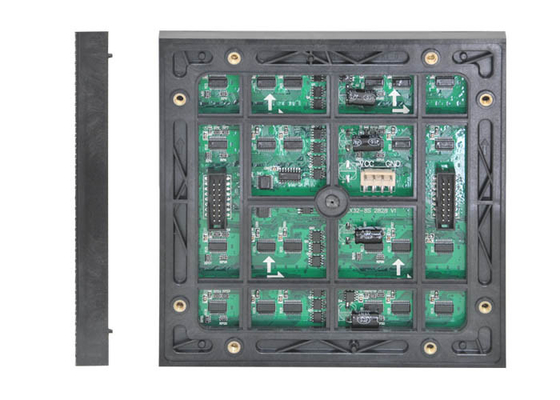

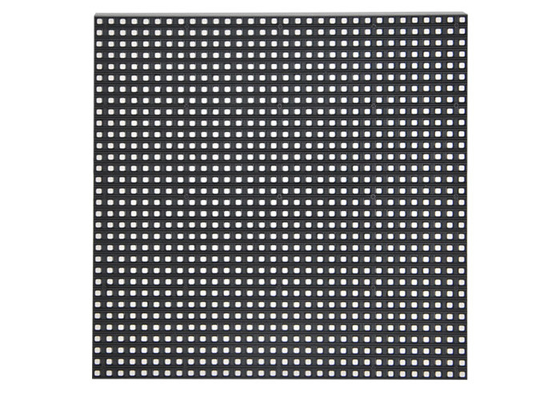

P5 SMD 3528 Outdoor Full Color Led Screen Module , 140 Deg Viewing Angle 160 * 160 Mm

  • img.alt
  • img.alt
  • img.alt
Place of Origin China
Brand Name YUCHIP
Certification CE,ROHS,FCC,EMC
Model Number P5
Minimum Order Quantity 1
Price Negotiable
Packaging Details Flight Case,Wooden Case,Strong Carton Box
Supply Ability 5000㎡/Month
Product Details
Encapsulation SMD3528 Viewing Angle H:140,V:140
Module Size (mm) 160*160 Brightness(nits) >6200
High Light

high definition led display

,

p10 led module
Leave a Message
Product Description

P5 SMD3535 Outdoor Full Color LED Display Module



Our Service

1)Your inquiry related to our products or price will be replied in 24hrs

2)OEM&ODM,any your customized lightings we can help you to design and put into product

3)Distributoership are offered for your unique design and some our current models

4)Protection of your sales area,ideas of design and all your private information

5)Top Quality+Reasonable Price+Responsible After Service=Successful & Win



Trade Terms



1.Payment:T/T,30% deposits before production,70% balance to be paid before dleiverying

2.Shipping freight are quoted under your requests

3.Shipping port:ShenZhen,Mainland China

4.MOQ:1pcs

Unit Module Item                                      Parameter
Module number   P5
Moule size  160mm x 160mm
Pixel pitch 5mm
Pixel density  40000dots/sqm
Pixel configuration 1R1G1B
Package mode smd3535
 Pixel resolution 32x 32 dots
 Max power consumpion 28w
 Module thickness 14.85mm(without magent)
27.15mm(with magent)
 Module weight 0.504kg
 Driver method constant drive
 Driver method 1/8 scanning
 Port type HUB75
 Brightness >6200cd/sqm
 Bracket  Size  160mm x 160mm
Unit Cabinet               Cabinet size 960mm x 960mm
 Quantity of module  36pcs
 Power supply 5v/40A x 6pcs
 Thermal discharge  2pcs cooling fans
 Pixel per cabinet  192 x 192 dots
 Best viewing distance  10m-150m
 Best viewing angle  160°(w)120°(H)
 Temperature   storage:-35℃-+85℃
 working:-20℃- +50℃
 Opration humidity  10%-95%
 Thickness  85mm
Power  Working voltage  220V±10%
 Averange power consumption  140W/sqm
 Max. power consumption  420w/sqm
 Current  <20mA(single LED)
