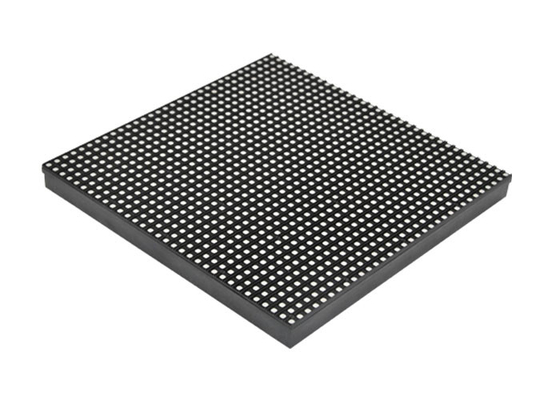

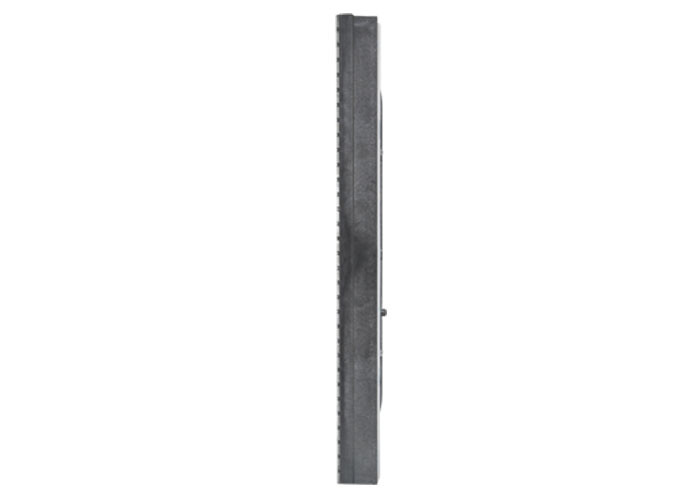

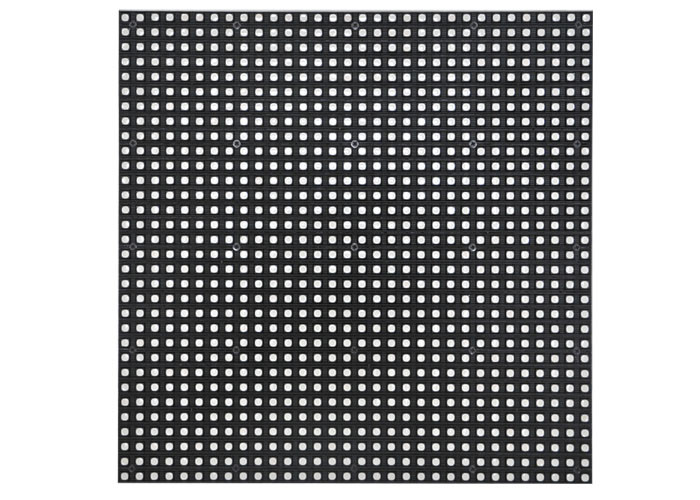

600Hz High Resolution Led Display Module , P6 Outdoor 3535 SMD LED Module

  • img.alt
  • img.alt
  • img.alt
  • img.alt
Place of Origin China
Brand Name YUCHIP
Certification CE,ROHS,FCC,EMC
Model Number P6
Minimum Order Quantity 1
Price Negotiable
Packaging Details Flight Case,Wooden Case,Strong Carton Box
Supply Ability 5000㎡/Month
Product Details
Encapsulation SMD3535 Viewing Angle H:140,V:140
Module Size (mm) 192*192 Brightness(nits) >6200
High Light

commercial led display

,

p10 led module
Leave a Message
Product Description

High Resolution Led Modules P6 Outdoor SMD LED Module 192*192 Led Module



Outdoor full colour hight brightness P6 3535 SMD Led Display Module Our advantage:



1)LED: well-known international brand, with wide viewing angle, high brightness,
little attenuation, good heat dissipation, and vivid colors.
2) Driving IC: famous brands such as, Taiwan MBI, Japanese Toshiba, avoidable
the defective phenomena, such as dark bright, virtual light and so on.
3) Power supply: industrial-strength brand. The power t maximum power reserve of 20% the space, the range of voltage fluctuation is less 5%, high stability.
4) Connector: Aerial grade brands ensure the stable transmission of power and
signal.
5) PCB Board: adopt 4-layer design.

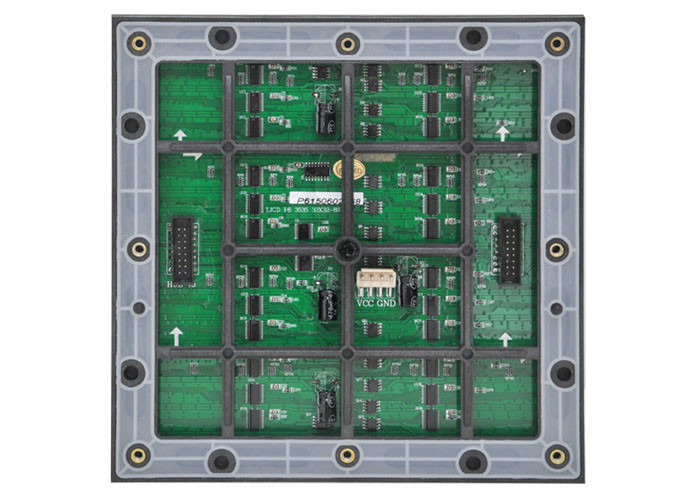

led board
Pitch size 6mm
Module size 192mm*192mm
Module pixel(dots) 32*32
Pixel configuration 1Red,1Green,1Blue SMD 3-in-1
LED chip Silan/Cree/Nichia
Color scale 65536degree/1.07 billion colors
Pixel density 27777pixels/square meter
View angle(H/V) 120/120degree
Brightness ≥1200cd/sqm
Brightness adjustment 100level automatic or manual
View distance 5--80m
Power consumption 100-1200W/sqm
Net weight <45kg/square meter
Operating temperature —45°C~+80°C
Operating humidity 10%—95%RH
Life time ≥100,000hours
Out of control dot ≤3/10,000
Whole Display Flatness ≤1mm Juncture
Exchange frame speed >150frames per second
Refresh frame frequency 600Hz
Control distance Cat. 5: 120m (without repeater), single mode fiber:20km,multi mode fiber: 500m
Power  110V/220V±15% 50Hz
Operating system Windows98/Me/2000/Xp
Drive mode constant current driving, static scan
Display mode VGA640X480—VGA1600X1024
Protections for outdoor display   IP65 for front, IP64 for rear
Maintenance way rear access, haging installation
Accepting signal PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI



Company Information
Shenzhen YUCHIP Lighting CO.,Ltd,a professional manufaturer specialized in the design,manufacture,sales and service of LED display,was founded in 2004---a most important industrial center of western Shenzhen.

Since established,YUCHIP have built up a highly-qualified group in LED display,which is equipped with abundant experiences in R&D,production and management as well as engineering service.

It now have over 200 employees,including 20 talented engineers who have been working in LED industry for over 12 years and thus have accumulated rich R&D experience.With over 4000 m2 output per month,we can well satisfy the growing market and provide more stable quality products.

By virtue of various hi-tech advanced equipments and our new production base,YUCHIP has successfully passed ISO9001:2008 and ISO 14001:2004,in addition to certification of UL,CE,TUV,RoHS,and CCC,etc.With over 7 years of progressive endeavors,YUCHIOP have forced its way to a number of industries both at home and abroad,building a strategic partnership with customers and winning over a stable global market.

Our services
Could provide LED display project support and do investigation in local places since our customers start the LED display project budget.
Customized LED screen software and hardware products will be provided base on customers’ requirements.
Provide LED screen technical training (factory or on-site) for different customers.
Drawings like steel structure drawing, connection drawing, etc. can be provided after the order.
Timely online services are provided whenever there is software operational problems and we’ll solve problems as soon as possible in working with our customers.
