DIP 346 Advertising Outdoor LED Billboard P10 Full Color 1R1G1B
Product Details
| High Light | led billboard advertising,outdoor digital signage |
||
|---|---|---|---|
Product Description
DIP 346 Advertising Outdoor LED Billboard P10 Full Color 1R1G1B
Quick Detail:
1, LED Chips: Epistar
2. LED Source: DIP 346;
3. Module: 320mm x 320mm;
4. Cabinet: 960mm x 960mm x 150mm;
5. Power consumption: Max 850W/㎡, Average 350W/㎡
6. IP65, waterproof.
Description:
1. P10 Outdoor LED billboard is being widely choose for large size outdoor LED billboards projects;
2. Standard LED cabinet of IP65,waterproof and dustproof;
3. High brightness up to 8000cd/㎡,and special requirement LED screen projects can reach 10,000nits;
4, The LED billboards present clear vivid image and video even under direct sunshine;
5. Short best view distance,for P10 outdoor LED display,the best view distance is above 8 meters;Audience/potential consumers people passed by would enjoy a clear image that standing above 8 meters.
6. Waterproof for outdoor environment use.

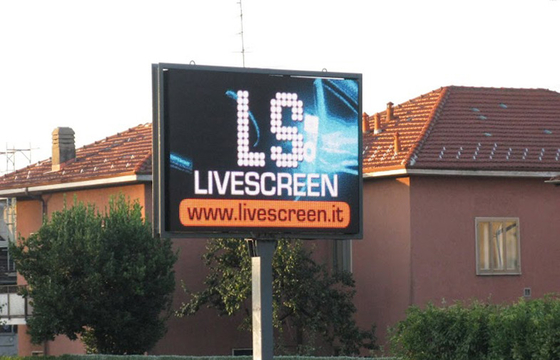

Applications:
On roof of building LED Billboard
Mounted on building LED Billboard
Put on steel pole LED Billboard
Cross bridge information LED Billboard
Specifications :
| LED Module Parameter | |
| Pixel pitch (mm) | 10 |
| Pixel configuration | 1R1G1B |
| Encapsulation | DIP346 |
| Colors matches | 6:3:1 |
| Module resolution (pixels) | 32 x 32 |
| Module pixel | 1024 |
| Module size (mm) | 320 x 320 |
| LED CABINET SPECIFICATION | |

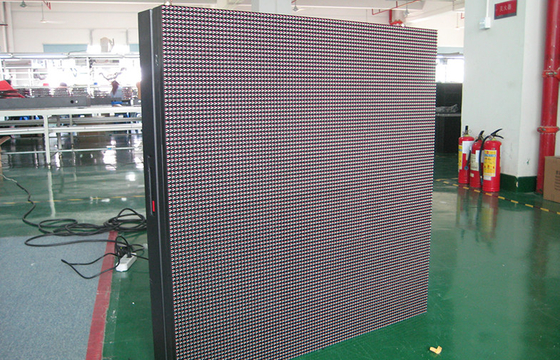

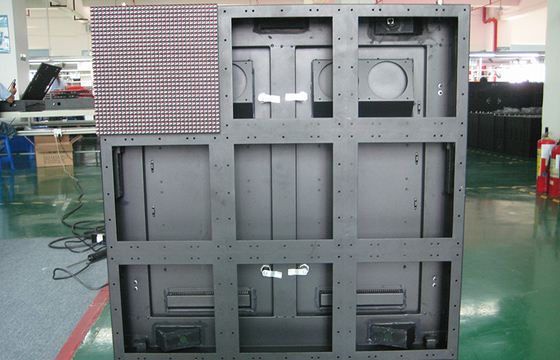

| Cabinet size (mm) | 960 x 960 x 150 |
| Cabinet resolution (pixels) | 96 x 96 |
| Cabinet pixels (pixels) | 9216 |
| Cabinet material | Steel |
| Cabinet weight (kg) | 50 |
| LED DISPLAY SPECIFICATION | |
| Pixel density(pixel/m2) | 10000 |
| Brightness(cd/m2) | ≥8000 (adjustable) |
| Brightness adjusted | 100 grade by software or by Auto-optic induced |
| View angle | Horizontal 110°; Vertical 70° |
| Best viewing distance (m) | ≥8m |
| Communication distance(m) | <100meter by Internet Cable(without Relay; Multi mode fiber cable ＜ 500m; Single mode fiber cable ＜ 20km |
| Display work method | 1/4 Scan |
| LED driving method | Constant driving current |
| Color contrast ratio | 1800:1 |
| Gray Grade | 16bit |
| Display Color | 439, 804, 651, 110 |
| Refresh Frequency (Hz) | ≥600 |
| Picture display method | Intellective control technology , test-itself technology , correct technology, Synchronization Control |
| Input signal | DVI (S-VIDEO, CVBS, ,DP,HDMI,VGA, PAL/NTSC, etc.through Video processor converting ) |
| System operating | WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc. |
| Front/Rear IP Level | IP65 |
| Working temperature(ºC) | -20～+60 |
| Stored temperature (ºC) | -30～+80 |
| Operation humidity(RH) | 0-95% |
| Display Lifetime(hours) | 10 years or more( natural environment) 100000 hours( ideal environment) |
| Maintenance | Rear side |
| Working Voltage | AC110 / AC220V±10% 47～63HZ |
| Power consumption | Max: 940W/㎡ ; Ave:400W/㎡ |
| Out of controlled dot | ≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the wave length are both >10% depart to the normal one) |
Competitive advantages:

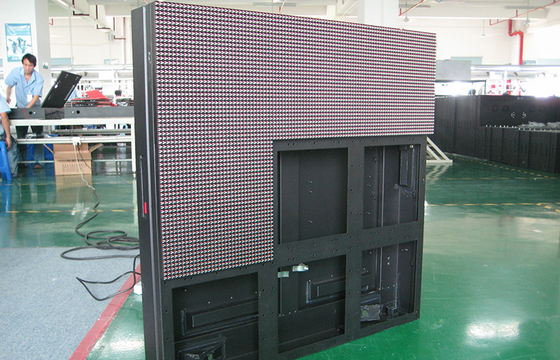

1, Seamless connection: 320mm x 320mm large size LED module makes LED display seamless connection in one cabinet;
2, Large Epistar chip guaranteeing up to 10000 nits brightness to deliver vivid image and video even under direct sunshine;
3, Best meanwell power supply equipped;
4, 5000㎡ per month production capacity to support timely delivery of advertising LED screen order;
5, Better waterproof, PCB is painted few layers coating for dust-proof,moisture proof and anti-corrosion;
6, High contrast ratio at 4000:1 to insure P10 outdoor LED billboards display the true and pure color.
