High brightness P13.3 1RGB Full Color Advertising LED Video Wall
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Highlight | led billboard advertising,outdoor led digital billboards |
||
|---|---|---|---|
Product Description
High brightness P13.3 1RGB Full Color Advertising LED Video Wall
Automatic brightness adjustment to present a comfortable display effect in day and night and also save energy;P13.3 1RGB Full Color LED Display Screens , Advertising LED Video Wall
Quick Detail:
1. LED power supply: Meanwell 5V 40A;
3. IP65 for waterproof and dustproof.
3. LED Chips: Epistar DIP 346;
4. LED Module: 320mm x 320mm;
5. LED Cabinet: 960mm x 960mm;

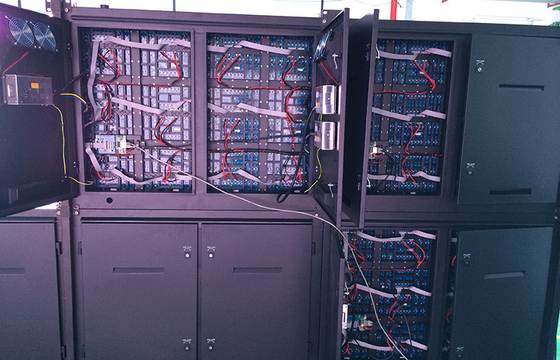

6. Internal connection of signal and power cables;
Description:
1. 4000:1 High contrast ratio guaranteeing a vivid and beautiful image and video presentation;
2. Shopping Mall Advertising LED display boards P13.3, LED Screen Panels Advertising is of high resolution for outdoor LED billboards use;
3. Standard LED cabinet of IP65,waterproof and dustproof;
4. High brightness up to 8000cd/㎡,and special requirement LED screen projects can reach 10,000nits.The LED billboards present clear vivid image and video even under direct sunshine;

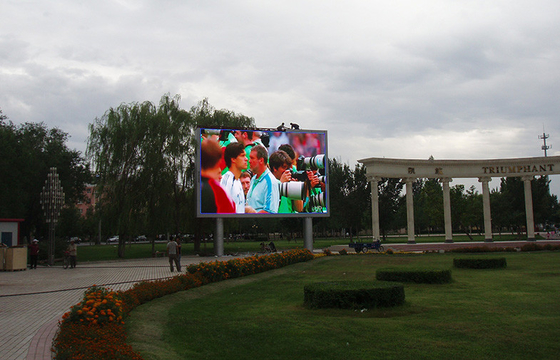

5. Applied as outdoor fixed installation LED display on steel pole,wall building,building roof etc.
6. 320mm x 320mm large LED module design enable less modules quantity in one LED cabinet for seamless connection;
Applications:
On roof of building advertising LED display
Mounted on building advertising LED screen
Put on steel pole advertising LED billboard
Cross bridge information LED display
Shopping Mall LED Billboard
Commercial Advertising LED Billboard
Church LED Billboard
Road Show LED Billboards
High Speed Way LED Advertising Billboard
Specifications :
| LED Module Parameter | |
| Pixel pitch (mm) | 13.3 |

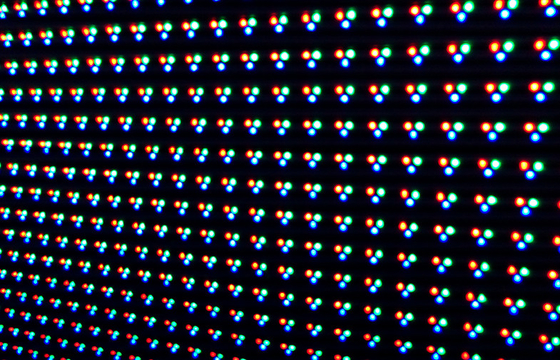

| Pixel configuration | 1R1G1B |
| Encapsulation | DIP346 |
| Colors matches | 6:3:1 |
| Module resolution (pixels) | 24 x 24 |
| Module pixel | 576 |
| Module size (mm) | 320 x 320 |
| LED CABINET SPECIFICATION | |
| Cabinet size (mm) | 960 x 960 x 150 |
| Cabinet resolution (pixels) | 72 x 72 |
| Cabinet pixels (pixels) | 5184 |
| Cabinet material | Steel |
| Cabinet weight (kg) | 50 |
| LED DISPLAY SPECIFICATION | |
| Pixel density(pixel/m2) | 5627 |
| Brightness(cd/m2) | ≥8000 (adjustable) |
| Brightness adjusted | 100 grade by software or by Auto-optic induced |
| View angle | Horizontal 110°; Vertical 70° |
| Best viewing distance (m) | ≥12m |
| Communication distance(m) | <100meter by Internet Cable(without Relay; Multi mode fiber cable ＜ 500m; Single mode fiber cable ＜ 20km |
| Display work method | 1/4 Scan |
| LED driving method | Constant driving current |
| Color contrast ratio | 1800:1 |
| Gray Grade | 16bit |
| Display Color | 439, 804, 651, 110 |
| Refresh Frequency (Hz) | ≥1200 |
| Picture display method | Intellective control technology , test-itself technology , correct technology, Synchronization Control |
| Input signal | DVI (S-VIDEO, CVBS, ,DP,HDMI,VGA, PAL/NTSC, etc.through Video processor converting ) |
| System operating | WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc. |
| Front/Rear IP Level | IP65 |
| Working temperature(ºC) | -20～+60 |
| Stored temperature (ºC) | -30～+80 |
| Operation humidity(RH) | 0-95% |
| Display Lifetime(hours) | 10 years or more( natural environment) 100000 hours( ideal environment) |
| Maintenance | Rear side |
| Working Voltage | AC110 / AC220V±10% 47～63HZ |
| Power consumption | Max: 940W/㎡ ; Ave:400W/㎡ |
| Out of controlled dot | ≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the wave length are both >10% depart to the normal one) |
Competitive advantages:
1. Multi Function card installed for automatic brightness adjustment to present a comfortable display effect in day and night and also save energy;
2. P13.3 outdoor LED displays is widely used as advertising LED display,LED billboards,P16 LED panel,P13.3LED display screen etc.Its stable working and advantaged working effect impressed users a lot that choose this solution its balanced display resolution and cost;
3. High resolution for large size outdoor LED screens project,resolution is 5627pixels/㎡;
4. High quality image and video presentation for large size LED billboards advertising use;
5. Enough brightness to deliver a clear image and video even under direct sunshine;
6. P13.3 1RGB LED display boards outdoor is being widely choose. As it got a balance between P10 LED screen outdoor and P16 outdoor LED walls.
