High Power Commercial Outdoor LED Billboard Dustproof for Shopping Mall
Product Details
| High Light | led billboard advertising,outdoor digital signage |
||
|---|---|---|---|
Product Description
High Power Commercial Outdoor LED Billboard Dustproof for Shopping Mall
Quick Detail:
1. IP65, waterproof.
2, LED Chips: Epistar
3. LED Source: DIP 346;
4. Module: 320mm x 320mm;
5. Cabinet: 960mm x 960mm x 150mm;
6. Power consumption: Max 850W/㎡, Average 350W/㎡
Description:
1. High resolution of 10000 pixels/㎡;
2. Standard LED cabinet of IP65,waterproof and dustproof;
3. High brightness up to 8000cd/㎡,and special requirement LED screen projects can reach 10,000nits;
4, The LED billboards present clear vivid image and video even under direct sunshine;
5. Short best view distance,for P10 outdoor LED display,the best view distance is above 8 meters;Audience/potential consumers people passed by would enjoy a clear image that standing above 8 meters.
6. Waterproof for outdoor environment use.
Applications:
On roof of building LED Billboard
Mounted on building LED Billboard
Put on steel pole LED Billboard
Cross bridge information LED Billboard
Shopping Mall LED Billboard
Commercial Advertising LED Billboard

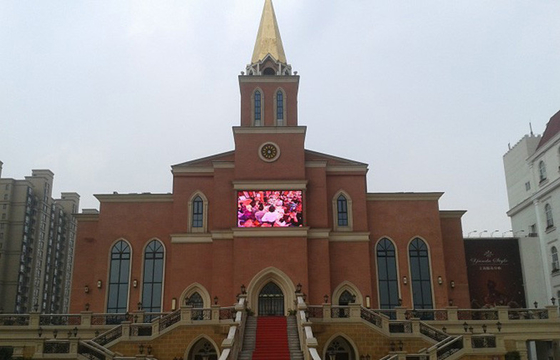

Church LED Billboard
Road Show LED Billboards
High Speed Way LED Advertising Billboard
Specifications :
| LED Module Parameter | |
| Pixel pitch (mm) | 10 |
| Pixel configuration | 1R1G1B |
| Encapsulation | DIP346 |
| Colors matches | 6:3:1 |
| Module resolution (pixels) | 32 x 32 |
| Module pixel | 1024 |
| Module size (mm) | 320 x 320 |
| LED CABINET SPECIFICATION | |
| Cabinet size (mm) | 960 x 960 x 150 |
| Cabinet resolution (pixels) | 96 x 96 |
| Cabinet pixels (pixels) | 9216 |
| Cabinet material | Steel |
| Cabinet weight (kg) | 50 |
| LED DISPLAY SPECIFICATION | |
| Pixel density(pixel/m2) | 10000 |
| Brightness(cd/m2) | ≥8000 (adjustable) |
| Brightness adjusted | 100 grade by software or by Auto-optic induced |
| View angle | Horizontal 110°; Vertical 70° |
| Best viewing distance (m) | ≥8m |
| Communication distance(m) | <100meter by Internet Cable(without Relay; Multi mode fiber cable ＜ 500m; Single mode fiber cable ＜ 20km |
| Display work method | 1/4 Scan |
| LED driving method | Constant driving current |
| Color contrast ratio | 1800:1 |
| Gray Grade | 16bit |
| Display Color | 439, 804, 651, 110 |
| Refresh Frequency (Hz) | ≥600 |
| Picture display method | Intellective control technology , test-itself technology , correct technology, Synchronization Control |
| Input signal | DVI (S-VIDEO, CVBS, ,DP,HDMI,VGA, PAL/NTSC, etc.through Video processor converting ) |
| System operating | WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc. |
| Front/Rear IP Level | IP65 |
| Working temperature(ºC) | -20～+60 |
| Stored temperature (ºC) | -30～+80 |
| Operation humidity(RH) | 0-95% |
| Display Lifetime(hours) | 10 years or more( natural environment) 100000 hours( ideal environment) |
| Maintenance | Rear side |
| Working Voltage | AC110 / AC220V±10% 47～63HZ |
| Power consumption | Max: 940W/㎡ ; Ave:400W/㎡ |
| Out of controlled dot | ≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the wave length are both >10% depart to the normal one) |
Competitive advantages:
1, Stable Internal connection of power and signal cables;
2, Seamless connection: 320mm x 320mm large size LED module makes LED display seamless connection in one cabinet;
3, Large Epistar chip guaranteeing up to 10000 nits brightness to deliver vivid image and video even under direct sunshine;
4, Best meanwell power supply equipped;
5, 5000㎡ per month production capacity to support timely delivery of advertising LED screen order;
6, P10 Outdoor LED billboard is being widely choose for large size outdoor LED billboards projects;
