High Resolution Outdoor LED Billboard 1R1G1B , DIP346 Advertising Led Display

  • img.alt
  • img.alt
  • img.alt
  • img.alt
Place of Origin China
Brand Name YUCHIP
Certification CE,ROHS,FCC,EMC
Model Number OF-10D
Minimum Order Quantity 1sqm
Price Negotiable
Packaging Details Flight Case,Wooden Case,Strong Carton Box
Delivery Time 15-20 Working Days
Payment Terms T/T
Supply Ability 5000㎡/Month
Product Details
High Light

outdoor digital signage

,

outdoor led digital billboards
Leave a Message
Product Description

High Resolution Outdoor LED Billboard 1R1G1B , DIP346 Advertising Led Display







Quick Detail:





1. LED Source: DIP 346;

2. Module: 320mm x 320mm;

3. Cabinet: 960mm x 960mm;

4. Cabinet weight: 50kg;

5. Power consumption: Max 850W/㎡, Average 350W/㎡

6. IP65, back maintenance.





Description:





1. P10 Outdoor LED display is of the high resolution in outdoor LED display series and is of most popular choose as

its balanced resolution and cost.

2. Standard LED cabinet of IP65,waterproof and dustproof;

3. High brightness up to 8000cd/㎡,and special requirement LED screen projects can reach 10,000nits.The LED billboards present clear vivid image and video even under direct sunshine;

4. High definition for outdoor LED panel projects,P10 is a most popular choose for outdoor LED displays projects;

5. Short best view distance,for P10 outdoor LED display,the best view distance is above 8 meters;Audience/potential consumers people passed by would enjoy a clear image that standing above 8 meters.

6. Applied as outdoor fixed installation LED display on steel pole,wall building,building roof etc.

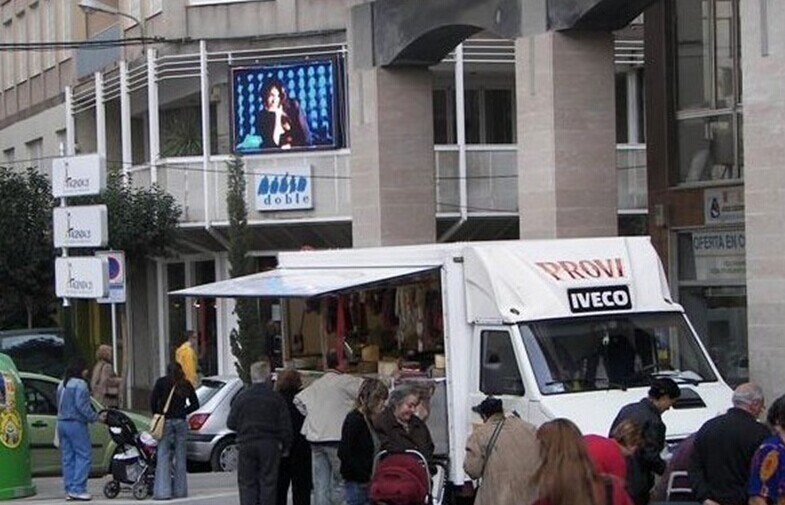

Applications:



On roof of building advertising LED display

Mounted on building advertising LED screen

Put on steel pole advertising LED billboard

Cross bridge information LED display







Specifications :

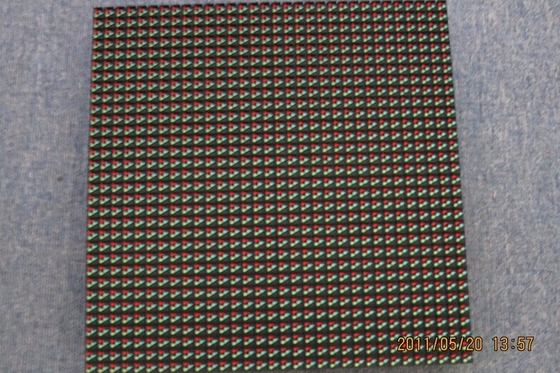

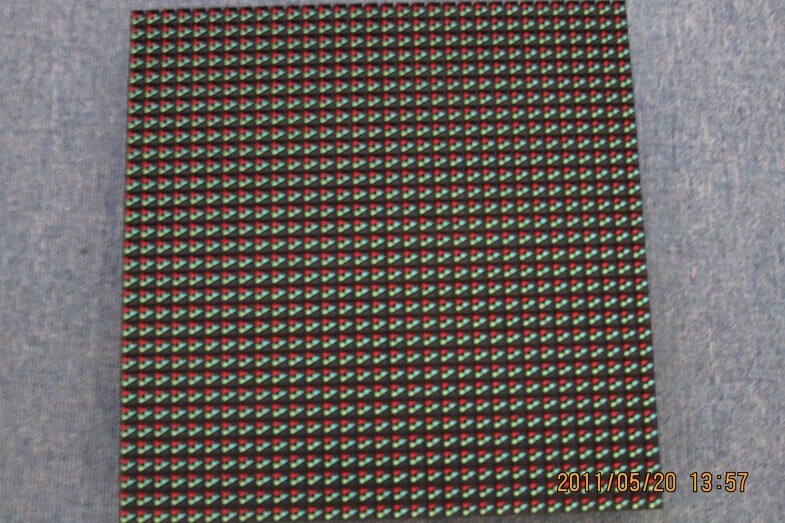

LED Module Parameter
Pixel pitch (mm) 10
Pixel configuration 1R1G1B
Encapsulation DIP346
Colors matches 6:3:1
Module resolution (pixels) 32 x 32
Module pixel 1024
Module size (mm) 320 x 320

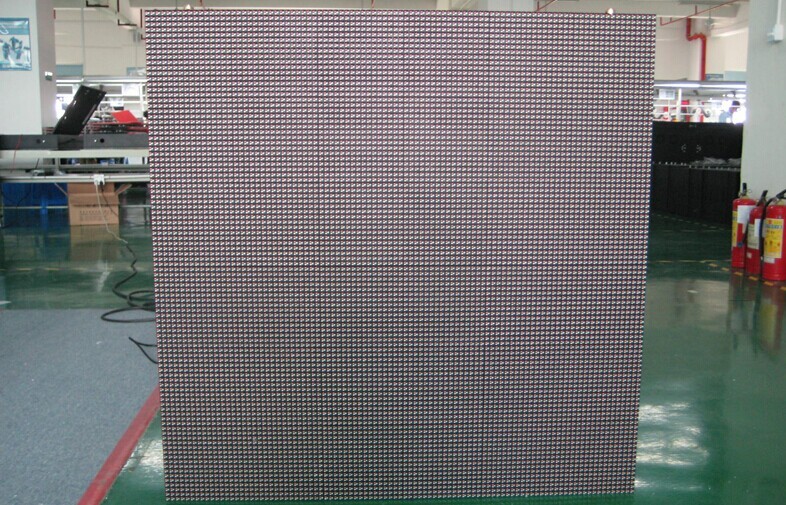

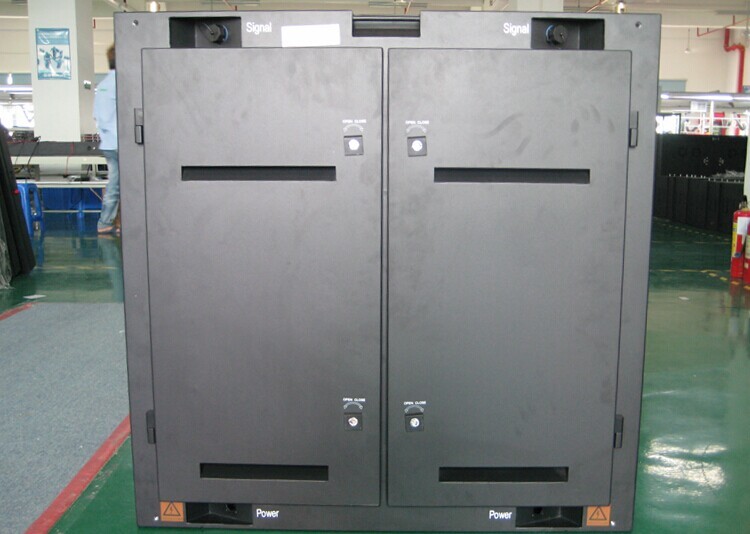

LED CABINET SPECIFICATION
Cabinet size (mm) 960 x 960 x 150
Cabinet resolution (pixels) 96 x 96
Cabinet pixels (pixels) 9216
Cabinet material Steel
Cabinet weight (kg) 50
LED DISPLAY SPECIFICATION
Pixel density(pixel/m2) 10000
Brightness(cd/m2) ≥8000 (adjustable)
Brightness adjusted 100 grade by software or by Auto-optic induced
View angle Horizontal 110°; Vertical 70°
Best viewing distance (m) ≥8m
Communication distance(m) <100meter by Internet Cable(without Relay; Multi mode fiber cable ＜ 500m; Single mode
fiber cable ＜ 20km
Display work method 1/4 Scan
LED driving method Constant driving current
Color contrast ratio 1800:1
Gray Grade 16bit
Display Color 439, 804, 651, 110
Refresh Frequency (Hz) ≥600
Picture display method Intellective control technology , test-itself technology , correct technology, Synchronization
Control
Input signal DVI (S-VIDEO, CVBS, ,DP,HDMI,VGA, PAL/NTSC, etc.through Video processor converting )
System operating WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc.
Front/Rear IP Level IP65
Working temperature(ºC) -20～+60
Stored temperature (ºC) -30～+80
Operation humidity(RH) 0-95%
Display Lifetime(hours) 10 years or more( natural environment) 100000 hours( ideal environment)
Maintenance Rear side
Working Voltage AC110 / AC220V±10% 47～63HZ
Power consumption Max: 940W/㎡ ; Ave:400W/㎡
Out of controlled dot ≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the wave
length are both >10% depart to the normal one)











Competitive advantages:

1. 320mm x 320mm large size LED module makes LED display seamless connection in one cabinet;

2. Large Epistar chip guaranteeing up to 10000 nits brightness to deliver vivid image and video even under direct sunshine;

3. Best meanwell power supply equipped;

4. 5000㎡ per month production capacity to support timely delivery of advertising LED screen order;

High Resolution Outdoor LED Billboard 1R1G1B , DIP346 Advertising Led Display 0High Resolution Outdoor LED Billboard 1R1G1B , DIP346 Advertising Led Display 1
