Curve Advertising ARC Led Display , P20 1RGB Stadium Led Display
Product Details
| High Light | led billboard advertising,outdoor led digital billboards |
||
|---|---|---|---|
Product Description
Curve Advertising ARC Led Display , P20 1RGB Stadium Led Display
Quick Detail:
1, Curve LED display with angle;
2, Large viewing angle;
3, LED Chips: Epistar
4. LED Source: DIP 346;
5. Module: 320mm x 320mm;
6. IP65, waterproof.
Description:

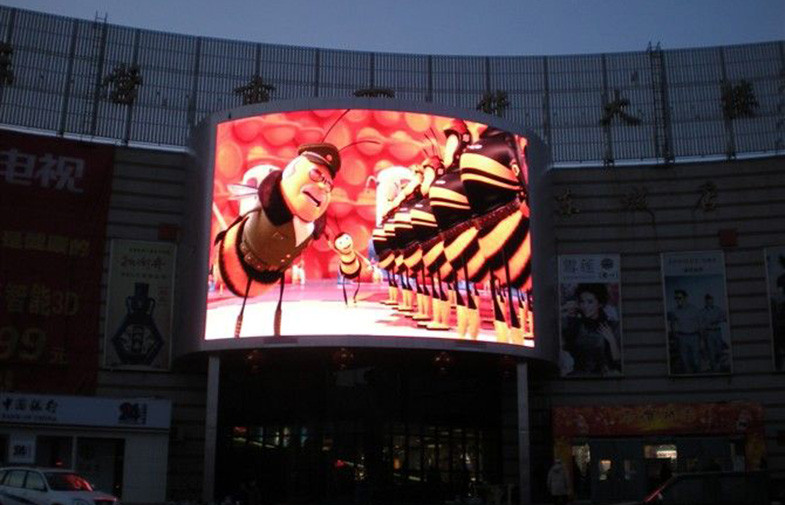

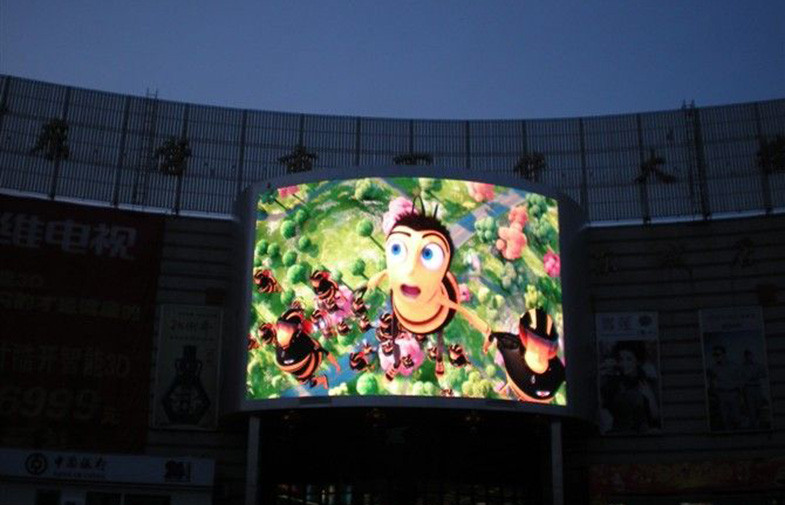

1. Curve LED screen is always installed on shopping mall building as advertising LED billboards where has angle of the building;
2. High quality image and video presentation for large size LED billboards advertising use;
3. Enough brightness to deliver a clear image and video even under direct sunshine;
4.Automatic brightness adjustment to present a comfortable display effect in day and night and also save energy;
5.Remote control help to realize one computer control numbers LED screen timely;
6.Eye catching active advertising effect deliver to more audience and gain more revenues;
Applications:
On roof of building LED Billboard
Mounted on building LED Billboard
Put on steel pole LED Billboard
Cross bridge information LED Billboard
Shopping Mall LED Billboard
Commercial Advertising LED Billboard
Church LED Billboard
Road Show LED Billboards
High Speed Way LED Advertising Billboard
Specifications :
| LED Module Parameter | |
| Pixel pitch (mm) | 20 |
| Pixel configuration | 1R1G1B |
| Encapsulation | DIP346 |
| Colors matches | 6:3:1 |
| Module resolution (pixels) | 16 x 16 |
| Module pixel | 256 |
| Module size (mm) | 320 x 320 |
| LED CABINET SPECIFICATION | |
| Cabinet size (mm) | 960 x 960 x 150 |
| Cabinet resolution (pixels) | 48 x 48 |
| Cabinet pixels (pixels) | 2304 |
| Cabinet material | Steel |
| Cabinet weight (kg) | 50 |
| LED DISPLAY SPECIFICATION | |
| Pixel density(pixel/m2) | 2500 |
| Brightness(cd/m2) | ≥8000 (adjustable) |
| Brightness adjusted | 100 grade by software or by Auto-optic induced |
| View angle | Horizontal 110°; Vertical 70° |
| Best viewing distance (m) | ≥18m |
| Communication distance(m) | <100meter by Internet Cable(without Relay; Multi mode fiber cable ＜ 500m; Single mode fiber cable ＜ 20km |
| Display work method | Static |
| LED driving method | Constant driving current |
| Color contrast ratio | 1800:1 |
| Gray Grade | 16bit |
| Display Color | 439, 804, 651, 110 |
| Refresh Frequency (Hz) | ≥1000 |
| Picture display method | Intellective control technology , test-itself technology , correct technology, Synchronization Control |
| Input signal | DVI (S-VIDEO, CVBS, ,DP,HDMI,VGA, PAL/NTSC, etc.through Video processor converting ) |
| System operating | WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc. |
| Front/Rear IP Level | IP65 |
| Working temperature(ºC) | -20～+60 |
| Stored temperature (ºC) | -30～+80 |
| Operation humidity(RH) | 0-95% |
| Display Lifetime(hours) | 10 years or more( natural environment) 100000 hours( ideal environment) |
| Maintenance | Rear side |
| Working Voltage | AC110 / AC220V±10% 47～63HZ |
| Power consumption | Max: 850W/㎡ ; Ave:350W/㎡ |
| Out of controlled dot | ≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the wave length are both >10% depart to the normal one) |
Competitive advantages:
1. Curve LED screen realise larger viewing angle to reach more audience;
2. 1RGB P20 Outdoor LED billboard is being widely choose for large size outdoor LED billboards projects;
3. Curve LED cabinet of IP65,waterproof and dustproof;
4. High brightness up to 8000cd/㎡,and special requirement LED screen projects can reach 10,000nits;
5, The LED billboards present clear vivid image and video even under direct sunshine;
6. Waterproof and dust proof for outdoor environment use;
