P10 Outdoor LED Billboard High Definition Full Color Advertising

  • img.alt
  • img.alt
  • img.alt
  • img.alt
Place of Origin CHINA
Brand Name YUCHIP
Certification CE,ROHS,FCC,EMC
Model Number P10
Minimum Order Quantity 1sqm
Packaging Details Flight Case,Wooden Case,Strong Carton Box
Supply Ability Negotiable
Product Details
High Light

outdoor digital signage

,

outdoor led digital billboards
Leave a Message
Product Description

P10 Outdoor LED Billboard High Definition Full Color Advertising



Product advantage introduction



  • 1. Wide application: it can be used for any rental application of stage show: such as main screen, side screen, floor screen, arc screen stage design etc.
  • 2. Both indoor and outdoor series are compatible, outdoor SMD and DIP screen with IP65 weatherproof level, so it can be used normally in rainy days.
  • 3. Front maintenance module structure design, modules can be installed and dismantled from front side, any cabinet within this screen is free of assembly and dismantling.
  • 4. Floor led screen can bear 1 ton weight, IP65 weatherproof level.
  • 5. High structure performance: esy connection of each components, modules and HUB card without flat cables, modules and systems without power cable.
  • 6. Cabinet and modules hollow are designed for great heat dissipation performance, high transparency, and high wind resistance level.
  • 7. Easy and Fast: for both installation and dismantling, without any tools, it takes only 10 seconds to assembly, hanging, pile up and fix installation available.
  • 8. Light weight and small size: each cabinet size only 640mm*640mm*98mm, weight 12.8kg, frame 55mm.



without any tools, it takes only 10 seconds to assembly, hanging, pile up and fix installation available.



Specifications :



LED MODULE PARAMETER
Pixel pitch (mm) 10
Pixel configuration 1R1G1B
Encapsulation DIP346
Colors matches 6:3:1
Module resolution (pixels) 32 x 32
Module pixel 1024
Module size (mm) 320 x 320
LED CABINET SPECIFICATION
Cabinet size (mm) 640 x 640 x 100
Cabinet resolution (pixels) 64 x 64
Cabinet pixels (pixels) 4096
Cabinet material Aluminum
Cabinet weight (kg) 14.5kg
LED DISPLAY SPECIFICATION
Pixel density(pixel/m2) 10000
Brightness(cd/m2) ≥8000 (adjustable)
Brightness adjusted 100 grade by software or by Auto-optic induced
View angle Horizontal 110°; Vertical 70°
Best viewing distance (m) ≥8m
Communication distance(m) <100meter by Internet Cable(without Relay; Multi mode fiber cable ＜ 500m; Single mode fiber cable ＜ 20km
Display work method Static
LED driving method Constant driving current
Color contrast ratio 1800:1
Gray Grade 16bit
Display Color 439, 804, 651, 110
Refresh Frequency (Hz) ≥600
Picture display method Intellective control technology , test-itself technology , correct technology, Synchronization
Control
Input signal DVI (S-VIDEO, CVBS, ,DP,HDMI,VGA, PAL/NTSC, etc.through Video processor converting )
System operating WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc.
Front/Rear IP Level IP65
Working temperature(ºC) -20～+60
Stored temperature (ºC) -30～+80
Operation humidity(RH) 0-95%
Display Lifetime(hours) 10 years or more( natural environment)
100000 hours( ideal environment)
Maintenance Rear side
Working Voltage AC110 / AC220V±10% 47～63HZ
Out of controlled dot ≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the wave length are both >10% depart to the normal one)




P10 Outdoor High Definition Full Color Advertising Large LED Screen Display Cabinet:



P10 Outdoor LED Billboard High Definition Full Color Advertising 0

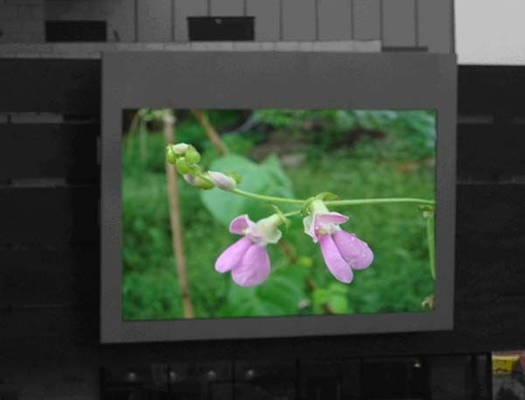

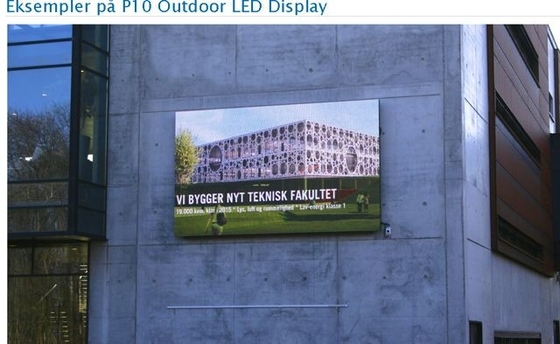

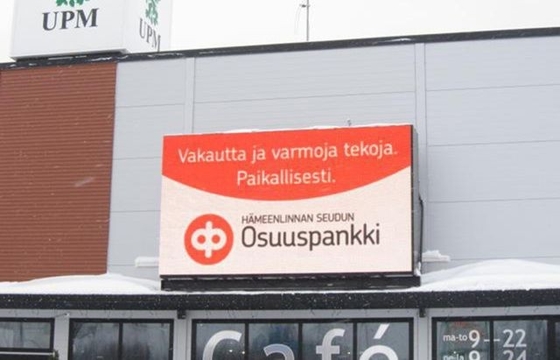

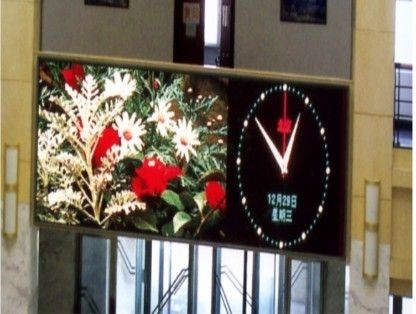

 P10 Outdoor High Definition Full Color Advertising Large LED Screen Display Case:

YUCHIP P10 Outdoor High Definition Full Color Advertising Large LED Screen Display case in china



P10 Outdoor Full Color Advertising Large LED Screen Display case in china
