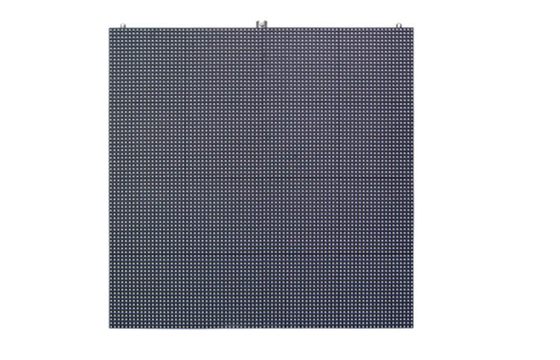

Full Color Portable Ultra Thin Led Display for Airport Stadium and Shopping Mall

  • img.alt
  • img.alt
  • img.alt
  • img.alt
Place of Origin China
Brand Name YUCHIP
Certification CE,ROHS,FCC,EMC
Model Number IR-8S
Minimum Order Quantity 1sqm
Price Negotiable
Packaging Details Flight Case,Wooden Case,Strong Carton Box
Delivery Time 15-20 Working Days
Payment Terms T/T
Supply Ability 5000㎡/Month
Product Details
High Light

lightweight led Screen

,

stage led display
Leave a Message
Product Description

Full Color Portable Ultra Thin Led Display for Airport Stadium and Shopping Mall



Description:



1. Weight:14Kg

2. It has a high refresh rate,high grayscale,and widely applied to the stage renting.

3. can be quickly installed and is Suitable for stage performance, leasing ,etc.







Applications:



Airport Full Color Indoor LED displays

Train station Indoor Full Color LED Displays

Entertainment Bar Indoor Full Color LED Screen

Stadium Indoor Full Color LED Display

Museum Full Color Indoor LED display

Car exhibition LED display

Conference room Indoor Full Color LED Video Display

Shopping Mall Indoor Full Color LED display





Specifications :



LED MODULE PARAMETER
Pixel pitch (mm) 8
Pixel configuration 3 in 1
Encapsulation SMD3528
Colors matches 6:3:1
Module resolution (pixels) 40*40
Module pixel 1600
Module size (mm) 320*320*17mm
LED CABINET SPECIFICATION

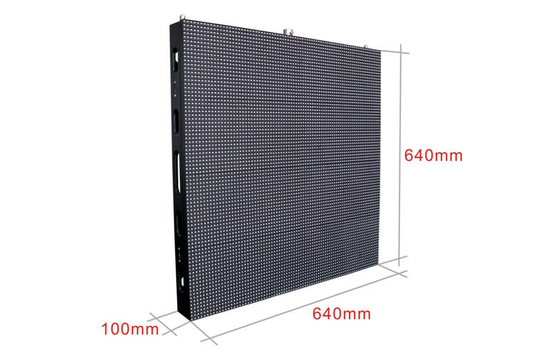

Cabinet size (mm) 640*640*100mm
Cabinet resolution (pixels) 80*80
Cabinet pixels (pixels) 6400
Cabinet material Aluminum
Cabinet weight (kg) 14kg
LED DISPLAY SPECIFICATION
Pixel density(pixel/m2) 15625
Brightness(cd/m2) ≥5000 (adjustable)
Brightness adjusted 100 grade by software or by Auto-optic induced
View angle Horizontal 120°; Vertical 120°
Best viewing distance (m) ≥8m
Communication distance(m) <100meter by Internet Cable(without Relay; Multi mode fiber cable ＜ 500m;
Single mode fiber cable ＜ 20km
Display work method 1/16 Scan
LED driving method Constant driving current
Color contrast ratio 4000:1
Gray Grade 14bit
Display Color 439, 804, 651, 110
Refresh Frequency (Hz) ≥1500
Picture display method Intellective control technology , test-itself technology , correct technology,
Synchronization Control
Input signal DVI (S-VIDEO, CVBS, ,DP,HDMI,VGA, PAL/NTSC, etc.through Video processor
converting )
System operating WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc.
Front/Rear IP Level IP65
Working temperature(ºC) -20～+60
Stored temperature (ºC) -30～+80
Operation humidity(RH) 0-95%
Display Lifetime(hours) 10 years or more( natural environment)
100000 hours( ideal environment)
Maintenance Front OR Rear
Working Voltage AC110 / AC220V±10% 47～63HZ
Out of controlled dot ≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the
wave length are both >10% depart to the normal one)





Competitive advantages:



1, P10  Outdoor full color LED display uniform in brightness and color;

2, Full color P10 LED screen is utilizing full black color LED chips;

3, Ondoor full color LED video screens contrast ratio up to 4000:1 to react real color of the content;

4, Utilizing Sum driver IC to reach high refresh frequency and high grey grade;

5, Large viewing angle at 120 degree horizontal and vertical;

6, P10 LED display is of high resolution for Outdoor rental events that require high quality presentation and its cost is being lower for large size indoor LED screens use;

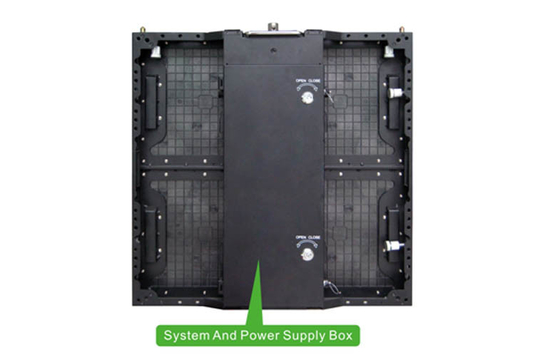

Assembly Sketch Map:



Full Color Portable Ultra Thin Led Display for Airport Stadium and Shopping Mall 0

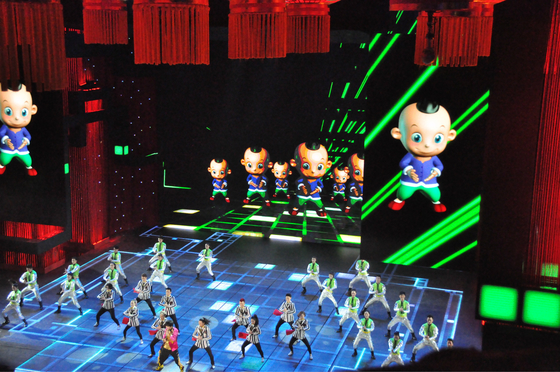

Case:



Full Color Portable Ultra Thin Led Display for Airport Stadium and Shopping Mall 1



Full Color Portable Ultra Thin Led Display for Airport Stadium and Shopping Mall 2
