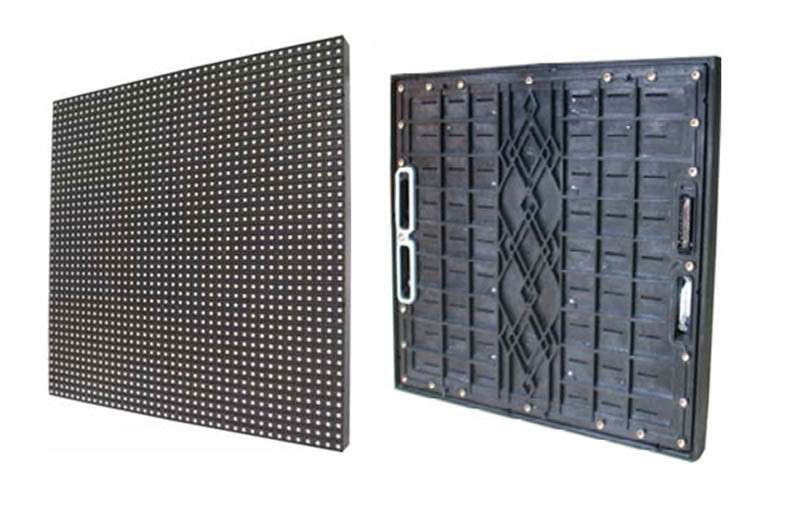

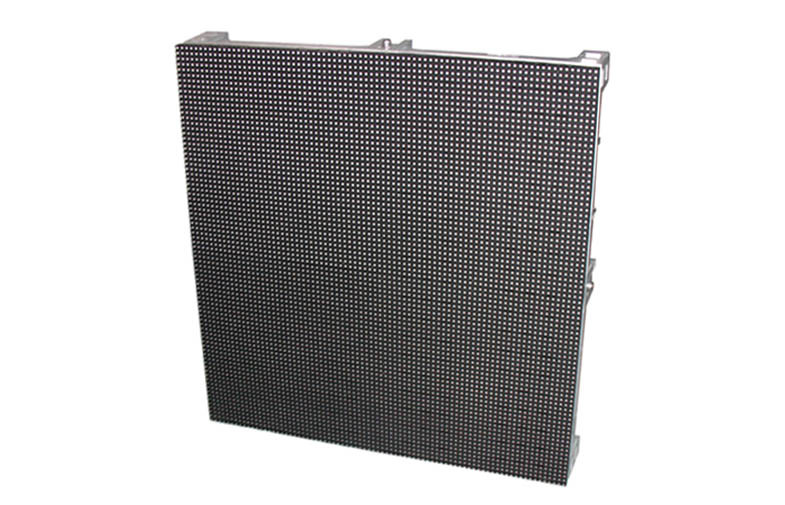

High Definition P8 SMD3535 Ultra Thin Led Display / Rental Led Screen

  • High Definition P8 SMD3535 Ultra Thin Led Display / Rental Led Screen
  • High Definition P8 SMD3535 Ultra Thin Led Display / Rental Led Screen
Certification CE,ROHS,FCC,EMC
Model Number OR-8S
Minimum Order Quantity 1sqm
Price Negotiable
Packaging Details Flight Case,Wooden Case,Strong Carton Box
Delivery Time 15-20 Working Days
Payment Terms T/T
Supply Ability 5000㎡/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Highlight

lightweight led Screen

,

stage led display
Leave a Message
Product Description

High Definition P8 SMD3535 Ultra Thin Led Display / Rental Led Screen



Description:



1, ully sealed design of waterproof and dustproof module;
2, Conduction cooling and mute of power;
3, Fast locks device--- Improving 80% of assembly speed;
4, Die-cast aluminum design, Lightweight,high intensity, high precision, unchangeable;
5, Support fixed and hanging installation method , Rapid to installation and disassemble,
6, Applicable to the stage rental.
7, Suitable Pixel pitch: P5.33, P5.926, P6.67, P8, P10;
8, Cabinet size: 640mm*640mm*65mm(100mm)
9, Weight: P5.926 12kg(up)/ 13.5kg(down);
10, Waterproof: IP65 front and rear;
11, Brightness: 6000cd/㎡;
12, All general module 320*320mm for optional;



Applications:



Outdoor Stage Performance

Outdoor Rental Led Screen

Outdoor Led Display Billboard

Outdoor Concert Led Display





Specifications :



LED MODULE PARAMETER
Pixel pitch (mm) 8
Pixel configuration 1R1G1B
Encapsulation SMD3535
Colors matches 6:3:1
Module resolution (pixels) 40*40
Module pixel 1600
Module size (mm) 320*320*25mm
LED CABINET SPECIFICATION
Cabinet size (mm) 640*640*105mm
Cabinet resolution (pixels) 80*80
Cabinet pixels (pixels) 6400
Cabinet material Cast aluminum
Cabinet weight (kg) 12.5kg
LED DISPLAY SPECIFICATION
Pixel density(pixel/m2) 15625
Brightness(cd/m2) ≥5500 (adjustable)
Brightness adjusted 100 grade by software or by Auto-optic induced
View angle Horizontal 110°; Vertical 50°
Best viewing distance (m) ≥8m
Communication distance(m) <100meter by Internet Cable(without Relay; Multi mode fiber cable ＜ 500m;
Single mode fiber cable ＜ 20km
Display work method 1/4 Scan
LED driving method Constant driving current
Color contrast ratio 4000:1
Gray Grade 16bit
Display Color 439, 804, 651, 110
Refresh Frequency (Hz) 1000-2400Hz
Picture display method Intellective control technology , test-itself technology , correct technology,
Synchronization Control
Input signal DVI (S-VIDEO, CVBS, ,DP,HDMI,VGA, PAL/NTSC, etc.through Video processor
converting )
System operating WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc.
Front/Rear IP Level IP65
Working temperature(ºC) -20～+60
Stored temperature (ºC) -30～+80
Operation humidity(RH) 0-95%
Display Lifetime(hours) 10 years or more( natural environment)
100000 hours( ideal environment)
Maintenance Front OR Rear
Working Voltage AC110 / AC220V±10% 47～63HZ
Out of controlled dot ≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the
wave length are both >10% depart to the normal one)





Competitive advantages:



1, P8 Outdoor full color LED display uniform in brightness and color;

2, Ultrathin design:Is is ultra light and ultrathin and requires low load bearing.

3, Ondoor full color LED video screens contrast ratio up to 4000:1 to react real color of the content;

4, Utilizing Sum driver IC to reach high refresh frequency and high grey grade;

5, P8 LED display is of high resolution for Outdoor rental events that require high quality presentation and its cost is being lower for large size Outdoor LED screens use;



Assembly Sketch Map:



High Definition P8 SMD3535 Ultra Thin Led Display / Rental Led Screen 0



Case:



High Definition P8 SMD3535 Ultra Thin Led Display / Rental Led Screen 1
