Indoor Full Color Led Display 1R1G1B 80mm thickness For Stage

  • Indoor Full Color Led Display 1R1G1B 80mm thickness For Stage
  • Indoor Full Color Led Display 1R1G1B 80mm thickness For Stage
Certification CE,ROHS,FCC,EMC
Model Number IR-3S
Minimum Order Quantity 1sqm
Price Negotiable
Packaging Details Flight Case,Wooden Case,Strong Carton Box
Delivery Time 15-20 Working Days
Payment Terms T/T
Supply Ability 5000㎡/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Highlight

lightweight led Screen

,

large led display
Leave a Message
Product Description

Indoor Full Color Led Display 1R1G1B 80mm thickness For Stage



Description:

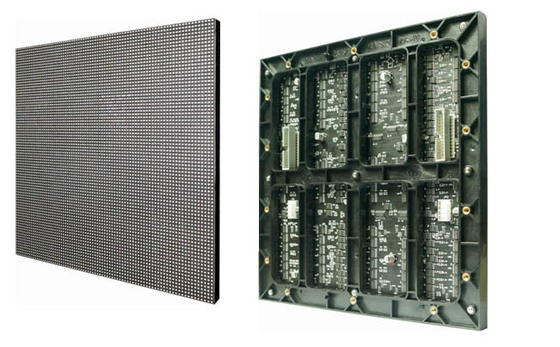

Module features:
1. Easy:Modular design, easy assembly and maintenance.
2. module size:240*240mm ,Smooth surface, module gap small ,High precision

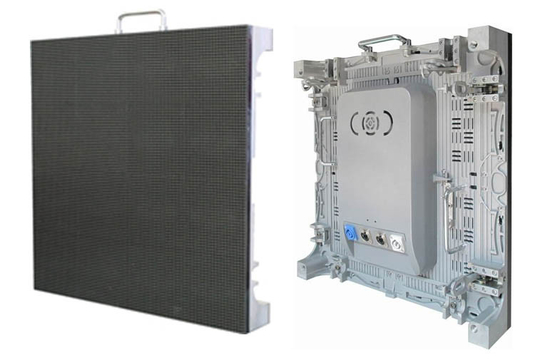

Cabinet features:
3. Light:Cabinet size: 480mmX480mmX80mm, Weight: 8.5kg/pc.
4. Thin:Die-cast aluminum design, high precision, thickness only 80mm.
5. Fast:Fast locks, Easy to assemble and disassemble.
6. Compatibility:Available pixel pitch for P2.5,P3, P3.75, P4, P4.8, P5, P6.
7. Low:Excellent cooling design, no fans or air-conditioners needed
noiseless, low power consumption, cost-effective.







Applications:



Outdoor Stage Performance

Outdoor Rental Led Screen

Outdoor Led Display Billboard







Specifications :



LED MODULE PARAMETER
Pixel pitch (mm) 3
Pixel configuration 1R1G1B
Encapsulation SMD2121
Colors matches 6:3:1
Module resolution (pixels) 80*80
Module pixel 6400
Module size (mm) 240*240*15mm
LED CABINET SPECIFICATION
Cabinet size (mm) 480*480*80mm
Cabinet resolution (pixels) 160*160
Cabinet pixels (pixels) 25600
Cabinet material Cast aluminum
Cabinet weight (kg) 8.5kg
LED DISPLAY SPECIFICATION
Pixel density(pixel/m2) 111111
Brightness(cd/m2) 800-1200 CD/㎡ (adjustable)
Brightness adjusted 100 grade by software or by Auto-optic induced
View angle Horizontal 110°; Vertical 50°
Best viewing distance (m) ≥3m
Communication distance(m) <100meter by Internet Cable(without Relay; Multi mode fiber cable ＜ 500m;
Single mode fiber cable ＜ 20km
Display work method 1/16 Scan
LED driving method Constant driving current
Color contrast ratio 4000:1
Gray Grade 16bit
Display Color 439, 804, 651, 110
Refresh Frequency (Hz) 1000-2400Hz
Picture display method Intellective control technology , test-itself technology , correct technology,
Synchronization Control
Input signal DVI (S-VIDEO, CVBS, ,DP,HDMI,VGA, PAL/NTSC, etc.through Video processor
converting )
System operating WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc.
Front/Rear IP Level IP30
Working temperature(ºC) -10～+40
Stored temperature (ºC) -30～+80
Operation humidity(RH) 0-95%
Display Lifetime(hours) 10 years or more( natural environment)
100000 hours( ideal environment)
Maintenance Front
Working Voltage AC110 / AC220V±10% 47～63HZ
Out of controlled dot ≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the
wave length are both >10% depart to the normal one)





Competitive advantages:



1, P3 Indoor full color LED display uniform in brightness and color;

2, Ultrathin design:Is is ultra light and ultrathin and requires low load bearing.

3, Indoor full color LED video screens contrast ratio up to 4000:1 to react real color of the content;

4, Utilizing Sum driver IC to reach high refresh frequency and high grey grade;

5, P3 LED display is of high resolution for Indoor rental events that require high quality presentation and its cost is being lower for large size Indoor LED screens use;



Assembly Sketch Map/Power Cable And Signal Cable Connection Sketch Map:



Indoor Full Color Led Display 1R1G1B 80mm thickness For Stage 0



Case:



Indoor Full Color Led Display 1R1G1B 80mm thickness For Stage 1
