Product Description

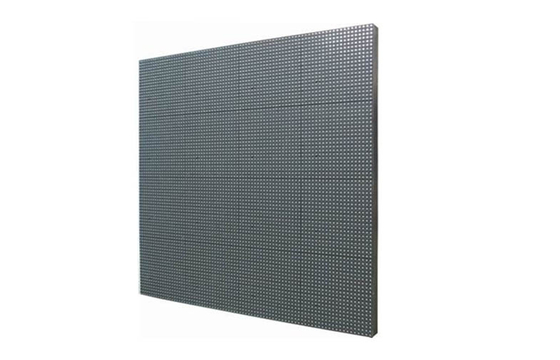

P4.0 Indoor Full Color Led Display / Lightweight Led Screen for advertising​





Description:

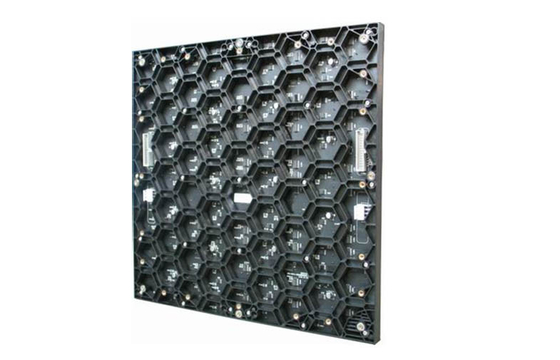

Module features:
1, can be front or rear maintenance,
2, applible for front service because of the magnet design on the module, much easier for module repairingdisasembly work;
3, unique honeycomb design with high precision,much stable and fla.
Cabinet features:
1, Thermal-conductive & noiseless power supply.
2, Fast lock system-80% higher efficiency in installation.
3, Die-casting aluminum cabinet: High precision and less weight.
4, Applicable for either fixed or rental/hang application, fast and easy set up and tear down, widely accepted for stage rental business.
5, Available pitch: P5.33, P5.926, P6.67, P8, P10







Applications:



Iutdoor Stage Performance

Iutdoor Rental Led Screen

Iutdoor Led Display Billboard







Specifications :



LED MODULE PARAMETER
Pixel pitch (mm) 4
Pixel configuration 1R1G1B
Encapsulation SMD2020
Colors matches 6:3:1
Module resolution (pixels) 80*80
Module pixel 6400
Module size (mm) 320*320*17mm
LED CABINET SPECIFICATION
Cabinet size (mm) 640*640*97mm
Cabinet resolution (pixels) 160*160
Cabinet pixels (pixels) 25600
Cabinet material Cast aluminum
Cabinet weight (kg) 8.5kg
LED DISPLAY SPECIFICATION
Pixel density(pixel/m2) 62500
Brightness(cd/m2) >1000 CD/㎡ (adjustable)
Brightness adjusted 100 grade by software or by Auto-optic induced
View angle Horizontal 110°; Vertical 50°
Best viewing distance (m) ≥4m
Communication distance(m) <100meter by Internet Cable(without Relay; Multi mode fiber cable ＜ 500m;
Single mode fiber cable ＜ 20km
Display work method 1/16 Scan
LED driving method Constant driving current
Color contrast ratio 4000:1
Gray Grade 16bit
Display Color 439, 804, 651, 110
Refresh Frequency (Hz) 1000-2400Hz
Picture display method Intellective control technology , test-itself technology , correct technology,
Synchronization Control
Input signal DVI (S-VIDEO, CVBS, ,DP,HDMI,VGA, PAL/NTSC, etc.through Video processor
converting )
System operating WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc.
Front/Rear IP Level IP30
Working temperature(ºC) -10～+40
Stored temperature (ºC) -30～+80
Operation humidity(RH) 0-95%
Display Lifetime(hours) 10 years or more( natural environment)
100000 hours( ideal environment)
Maintenance Front or Rear
Working Voltage AC110 / AC220V±10% 47～63HZ
Out of controlled dot ≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the
wave length are both >10% depart to the normal one)





Competitive advantages:



1, P4 Indoor full color LED display uniform in brightness and color;

2, Ultrathin design:Is is ultra light and ultrathin and requires low load bearing.

3, Indoor full color LED video screens contrast ratio up to 4000:1 to react real color of the content;

4, Utilizing Sum driver IC to reach high refresh frequency and high grey grade;

5, P4 LED display is of high resolution for Indoor rental events that require high quality presentation and its cost is being lower for large size Indoor LED screens use;



Assembly Sketch Map/Power Cable And Signal Cable Connection Sketch Map:



P4.0 Indoor Full Color Led Display / Lightweight Led Screen for advertising 0

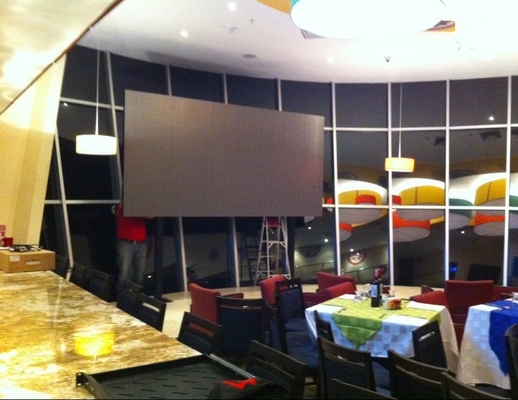

Case:



P4.0 Indoor Full Color Led Display / Lightweight Led Screen for advertising 1
