Painting Ventilation Advertising Stage Led Screen Waterproof IP65

  • img.alt
  • img.alt
  • img.alt
  • img.alt
Place of Origin China
Brand Name YUCHIP
Certification CE,ROHS,FCC,EMC
Model Number OF-25.6D
Minimum Order Quantity 1sqm
Price Negotiable
Packaging Details Flight Case,Wooden Case,Strong Carton Box
Delivery Time 15-20 Working Days
Payment Terms T/T
Supply Ability 5000㎡/Month
Product Details
High Light

lightweight led Screen

,

stage led display
Leave a Message
Product Description

Painting Ventilation Advertising Stage Led Screen Waterproof IP65



Description:



Specification of Ventilation display series:

In order to meet different using requirements,Ventilation display series developed different specification product of P12.5,P16,P21.33,P25.6 and P32.



Advantages of Ventilation display:

Ultrathin design:Is is ultra light and ultrathin and requires low load bearing.The cabinet adopted the latest design ideas,it only have the frame without the frame connection in the middle of the cabinet of general cabinet,which makes the cabinet become lighter,It has ultrathin design,the thinckness of the whole cabinet is only 90mm and it is 50mm thinner than the routione cabinet that makes installation more easier.

High transmittance:Its transmittance is over 15%-40% and gain the homogeneous emission.

Low windage:Because the screen is ventilation,it reduce the windage and can save the structure costs.

Good ventilation:Do not need to use air conditioning fan and save cost.

Strong adaptability:It can be applied to whole day work environment,waterproof,dustproof and airproof design.

Environmental protection and energy saving:It can save more than 40% energy compared with the conventional display.







Applications:



Outdoor Led Display Billboard

Outdoor Advertising Board

Building exterior wall Led screen





Specifications :



LED MODULE PARAMETER
Pixel pitch (mm) 25.6
Pixel configuration 2R1G1B
Encapsulation DIP346
Colors matches 6:3:1
Module resolution (pixels) 20*5
Module pixel 100
Module size (mm) 512*128mm
LED CABINET SPECIFICATION

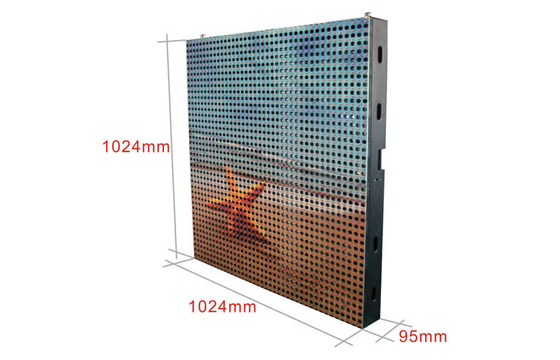

Cabinet size (mm) 1024*1024*95mm
Cabinet resolution (pixels) 40*40
Cabinet pixels (pixels) 1600
Cabinet material Steel
Cabinet weight (kg) 37kg
LED DISPLAY SPECIFICATION
Pixel density(pixel/m2) 1521
Brightness(cd/m2) ≥5000 (adjustable)
Brightness adjusted 100 grade by software or by Auto-optic induced
View angle Horizontal 120°; Vertical 120°
Best viewing distance (m) ≥8m
Communication distance(m) <100meter by Internet Cable(without Relay; Multi mode fiber cable ＜ 500m;
Single mode fiber cable ＜ 20km
Display work method 1/16 Scan
LED driving method Constant driving current
Color contrast ratio 4000:1
Gray Grade 16bit
Display Color 439, 804, 651, 110
Refresh Frequency (Hz) ≥1500
Picture display method Intellective control technology , test-itself technology , correct technology,
Synchronization Control
Input signal DVI (S-VIDEO, CVBS, ,DP,HDMI,VGA, PAL/NTSC, etc.through Video processor
converting )
System operating WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc.
Front/Rear IP Level IP65
Working temperature(ºC) -20～+60
Stored temperature (ºC) -30～+80
Operation humidity(RH) 0-95%
Display Lifetime(hours) 10 years or more( natural environment)
100000 hours( ideal environment)
Maintenance Front OR Rear
Working Voltage AC110 / AC220V±10% 47～63HZ
Out of controlled dot ≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the
wave length are both >10% depart to the normal one)





Competitive advantages:



1, P25.6  Outdoor full color LED display uniform in brightness and color;

2, Ultrathin design:Is is ultra light and ultrathin and requires low load bearing.

3, Ondoor full color LED video screens contrast ratio up to 4000:1 to react real color of the content;

4, Utilizing Sum driver IC to reach high refresh frequency and high grey grade;

5, Large viewing angle at 120 degree horizontal and vertical;

6, P25.6LED display is of high resolution for Outdoor rental events that require high quality presentation and its cost is being lower for large size outdoor LED screens use;

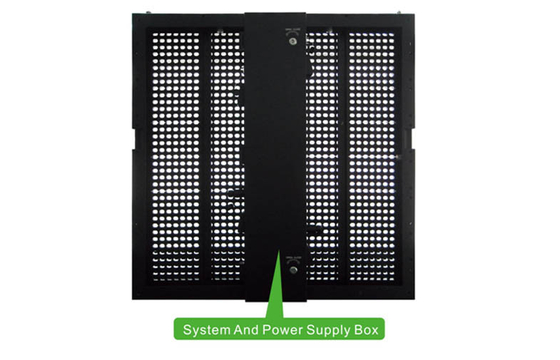

Assembly Sketch Map:



Painting Ventilation Advertising Stage Led Screen Waterproof IP65 0

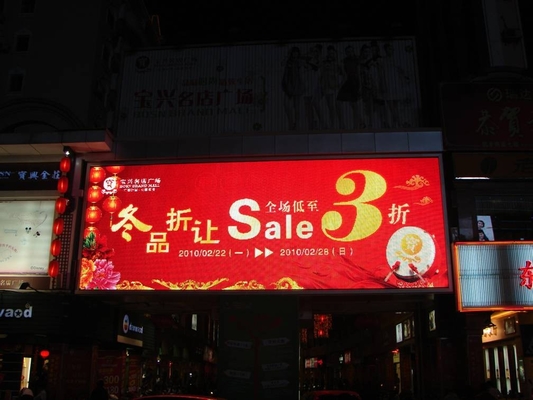

Case:



Painting Ventilation Advertising Stage Led Screen Waterproof IP65 1



Painting Ventilation Advertising Stage Led Screen Waterproof IP65 2
