HD SMD Aluminum Rental Ultra Thin Led Display P6.67 13bit led video screens

  • HD SMD Aluminum Rental Ultra Thin Led Display P6.67 13bit led video screens
  • HD SMD Aluminum Rental Ultra Thin Led Display P6.67 13bit led video screens
  • HD SMD Aluminum Rental Ultra Thin Led Display P6.67 13bit led video screens
Certification CE,ROHS,FCC,EMC
Model Number OR-6.67S
Minimum Order Quantity 1sqm
Price Negotiable
Packaging Details Flight Case,Wooden Case,Strong Carton Box
Delivery Time 15-20 Working Days
Payment Terms T/T
Supply Ability 5000㎡/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Highlight

lightweight led Screen

,

stage led display
Leave a Message
Product Description

HD SMD Aluminum  Rental Ultra Thin Led Display P6.67  13bit led video screens



Description:



Module features:

1, All-sealed water proof LED module

2, Thermal-conductive & noiseless power supply

3, unique honeycomb design with high precision,much stable and fla.

Cabinet features:

1, Thermal-conductive & noiseless power supply.

2, Fast lock system-80% higher efficiency in installation.

3, Die-casting aluminum cabinet: High precision and less weight.

4, Applicable for either fixed or rental/hang application, fast and easy set up and tear down, widely accepted for stage rental business.

5, Available pitch: P4,P5,P5.33, P5.926, P6.67, P8, P10.





Applications:



Outdoor Stage Performance

Outdoor Rental Led Screen

Outdoor Led Display Billboard







Specifications :



LED MODULE PARAMETER
Pixel pitch (mm) 6.67
Pixel configuration 1R1G1B
Encapsulation SMD3535
Colors matches 6:3:1
Module resolution (pixels) 48*48
Module pixel 2304
Module size (mm) 320*320*21mm
LED CABINET SPECIFICATION
Cabinet size (mm) 640*640*105mm
Cabinet resolution (pixels) 96*96
Cabinet pixels (pixels) 9216
Cabinet material Cast aluminum
Cabinet weight (kg) 11.8kg
LED DISPLAY SPECIFICATION
Pixel density(pixel/m2) 22500
Brightness(cd/m2) ≥6000 (adjustable)
Brightness adjusted 100 grade by software or by Auto-optic induced
View angle Horizontal 110°; Vertical 50°
Best viewing distance (m) ≥6m
Communication distance(m) <100meter by Internet Cable(without Relay; Multi mode fiber cable ＜ 500m;
Single mode fiber cable ＜ 20km
Display work method 1/6 Scan
LED driving method Constant driving current
Color contrast ratio 4000:1
Gray Grade 13bit
Display Color 439, 804, 651, 110
Refresh Frequency (Hz) 1000-2400Hz
Picture display method Intellective control technology , test-itself technology , correct technology,
Synchronization Control
Input signal DVI (S-VIDEO, CVBS, ,DP,HDMI,VGA, PAL/NTSC, etc.through Video processor
converting )
System operating WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc.
Front/Rear IP Level IP65
Working temperature(ºC) -20～+60
Stored temperature (ºC) -30～+80
Operation humidity(RH) 0-95%
Display Lifetime(hours) 10 years or more( natural environment)
100000 hours( ideal environment)
Maintenance Front OR Rear
Working Voltage AC110 / AC220V±10% 47～63HZ
Out of controlled dot ≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the
wave length are both >10% depart to the normal one)





Competitive advantages:



1, P6.67 Outdoor full color LED display uniform in brightness and color;

2, Ultrathin design:Is is ultra light and ultrathin and requires low load bearing.

3, Ondoor full color LED video screens contrast ratio up to 4000:1 to react real color of the content;

4, Utilizing Sum driver IC to reach high refresh frequency and high grey grade;

5, P6.67 LED display is of high resolution for Outdoor rental events that require high quality presentation and its cost is being lower for large size Outdoor LED screens use;

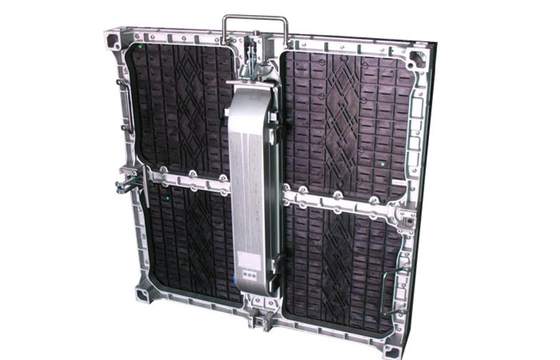

Assembly Sketch Map:



HD SMD Aluminum Rental Ultra Thin Led Display P6.67 13bit led video screens 0

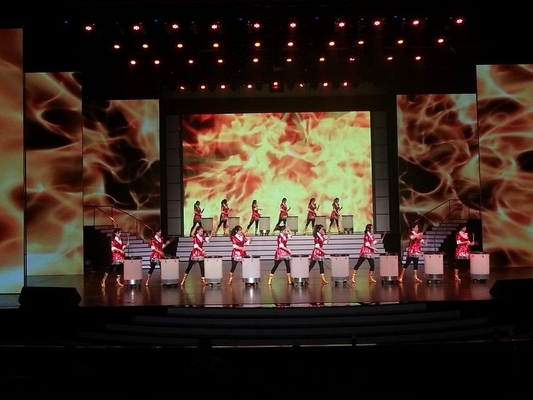

Case:



HD SMD Aluminum Rental Ultra Thin Led Display P6.67 13bit led video screens 1
